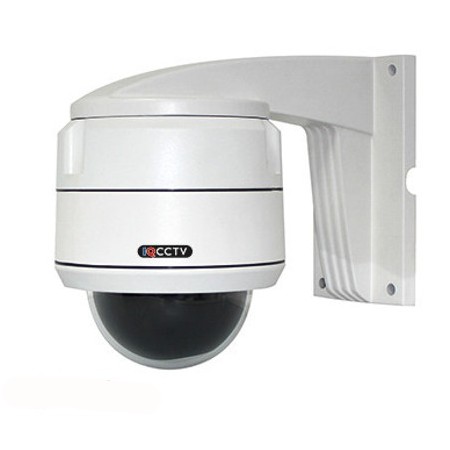

The IQCCTV IQC1920S2 HD-SDI Pan Tilt Zoom Camera offers FULL HD 1080P resolution images with an 2.5x Zoom Lens,
thats up to 7x resolution of standard CCTV systems and better than SKY HD
| Brand: |
IQCCTV |
| Model Number: |
IQC1920S2 |
| Resolution: |
1080P |
| Weather Resistant: |
Yes |
| Vandal Resistant: |
Yes |
| Mounting Type: |
Wall, Ceiling |
| Dimensions (WHD in mm): |
TBC |
| Weight (Kg): |
TBC |
| Warranty: |
1 Year Warranty (extendable to 3 years) |
| Sensor Type: |
1080P Sensor |
| DSP Type: |
TBC |
| DSP Functions: |
Wide Dynamic Range
Digital Slow Shutter
3D Digital Noise Reduction
High Light Suppression
|
| Minimum Illumination: |
TBC |
| Night Vision: |
N/A |
| Lens Type: |
Mega Pixel Lens |
| Lens Size: |
4 to 9mm |
| Viewing Angle: |
30 to 64° |
| Operating Voltage: |
12V DC 500mA |
| Suggested Power Supply: |
12V DC 1250mA |
| Video Output: |
BNC Socket |
| Audio Output: |
N/A |
| Power Input: |
DC Socket |
| RS485 Control: |
Yes |
|
|
 |
|
12V DC 1250ma Power Supply |
|
|
|
|
|
|
| |
| |
 |
|
IQR1920D4:
Full HD (1080P) HD-SDI
DVR with 4 Camera Inputs |
|
 |
|
IQR1920D8:
Full HD (1080P) HD- SDI DVR with 8 Camera Inputs |
|
|
|
