General |
|
Topology |
Line-Interactive
High
Frequency
(Pure
Sinewave,
Booster
+ Fader) |
|
Configuration |

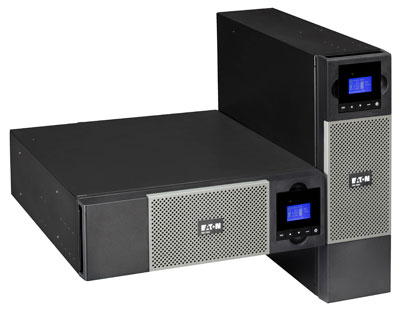

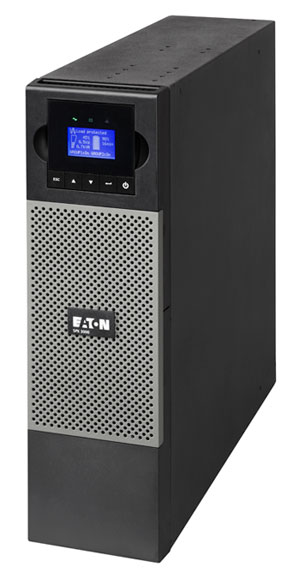

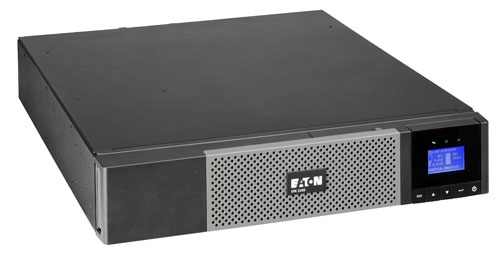

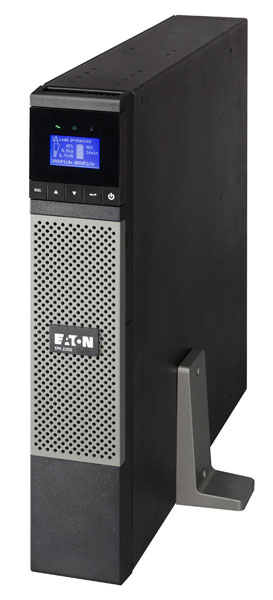

Tower/Rack
2U |
|
Part
Number |
5PX1500iRT |
|
Rating (VA/Watts) |
1500/1350 |
|
Dimensions
(H x W x
D, mm) |
86.2 x
441 x
522 |
|
Weight
(kg) |
28 |
| |
|
Electrical
Input |
|
Connection |
(1) IEC-320-C14
|
|
Input
Voltage
Without
Using
Batteries |
160V-294V
(adjustable
to
150V-294V) |
|
Input
frequency
Range
Without
Using
Batteries |
47 to 70
Hz (50
Hz
system),
56.5 to
70 Hz
(60 Hz
system),
40 Hz in
low-sensitivity
mode |
| |
|
Electrical
Output |
|
Voltages |
230 V
(+6/-10
%)
(Adjustable
to 200V
/ 208V /
220V /
230V /
240V) |
|
Output

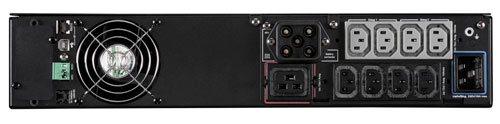

Receptacles |
(8) IEC-320-C13
|
|
Remotely
controlled
sockets |
2 groups
of 2 x
IEC C13
(10 A) |
|
Output
Frequency |
50/60 Hz
+/- 0.1
% (autosensing) |
| |
|
Battery |
|
Battery
Management |
ABM® &
Temperature
compensated
charging
method
(user
selectable),
Automatic
battery
test,
deep
discharge
protection,
automatic
recognition
of
external
battery
units |
| |
|
Communications |
|
Communication
Ports |
1 USB
port + 1
RS232
serial
port and
relay
contacts
(USB and
RS232
ports
cannot
be used
simultaneously)
+ 1 mini
terminal
block
for
remote
ON/OFF
and
Remote
Power
Off |
|
Communications
Card
Slots |
1 slot
for NMC
Minislot
card or
NMC
ModBus/JBus
or MC
Contacts/Serial |
| |
|
Environmental
&
Standards |
|
Audible
Noise |
< 45 dBA |
|
Operating
Temperature |
0 to
40°C |
|
Performance
- Safety
- EMC |
IEC/EN
62040-1-1
(Safety),
IEC/EN
62040-2
(EMC),
IEC/EN
62040-3
(Performance), |
|
Approvals |
CE, CB
report,
TÜV |
