General |
|
Topology |
Line-Interactive
High
Frequency
(Booster
+ Fader) |
|
Configuration |

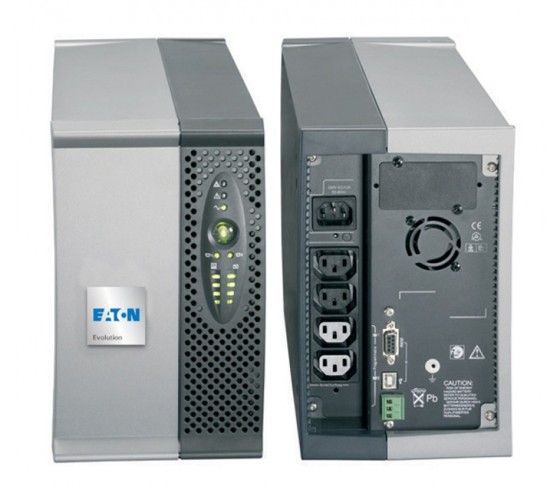

Tower |
|
Part
Number |
68450 |
|
Color |
charcoal
grey and
metallic
grey
combo |
|
Rating (VA/Watts) |
650/420 |
|
Dimensions
(H x W x
D, mm) |
234 x
147 x
418 |
|
Weight
(kg) |
8.4 |
|
Warranty |
2 years
warranty,
Standard
product
exchange,
including
the
battery |
| |
|
Electrical
Input |
|
Connection |
(1) IEC-320-C14
|
|
Input
Voltage
Without
Using
Batteries |
160V -
294V
(adjustable
to 150 -
294V)
|
|
Input
frequency
Range
Without
Using
Batteries |
47 to 70
Hz (50
Hz
system),
56.5 to
70 Hz
(60 Hz
system),
up to 40
Hz in
low-sensitivity
mode
(programmable
using
Personal
Solution-Pac
software). |
| |
|
Electrical
Output |
|
Voltages |
230 V
(+6/-10
%)
(Adjustable
to 200 V
(10 %
derating
of
output
power) /
208 V /
220 V /
230 V /
240 V) |
|
Output
Receptacles |
(4) IEC-320-C13
|
|
Remotely
controlled
sockets |
2 groups
of 1 x
IEC C13
(10 A)
output
receptacles |
|
Output
Frequency |
50/60 Hz
+/- 0.1
% |
| |
|
Battery
|
|
Battery
Management |
Automatic
weekly
test
(period
adjustable),
automatic
recognition
of
external
battery
units =>
continuous
maximisation
of
backup
time +
deep
discharge
protection |
| |
|
Communications |
|
Communication
Ports |
1 USB
port + 1
RS232
serial
port and
relay
contacts
(USB and
RS232
ports
cannot
be used
simultaneously)+
1 mini
terminal
block
for
remote
ON/OFF
and
Remote
Power
Off |
|
Communications
Card
Slots |
1 slot
for NMC
Minislot
card or
NMC
ModBus/JBus
or MC
Contacts/Serial |
| |
|
Environmental
&
Standards |
|
Audible
Noise |
< 40 dbA
|
|
Operating
Temperature |
0 to
35°C
|
|
Performance
- Safety
- EMC |
IEC/EN
62040-1-1
(Safety),
IEC/EN
62040-2
EN
50091-2
class B
(EMC),
IEC/EN
62040-3
(Performance),
IEC/EN
61000-4-2,
61000-4-3,
61000-4-4;
61000-4-5,
61000-4-6,
61000-4-8
(EMI) |
|
Approvals |
CE, CB
report,
TÜV |
