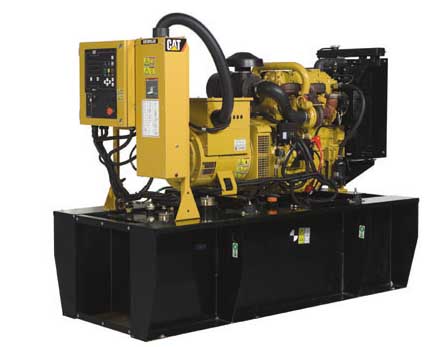

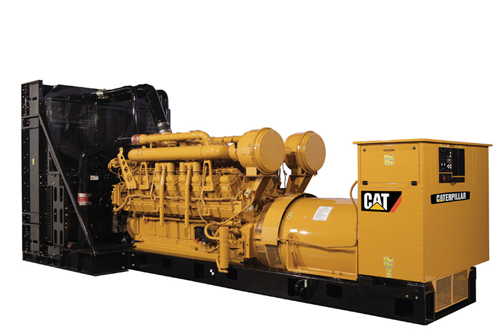

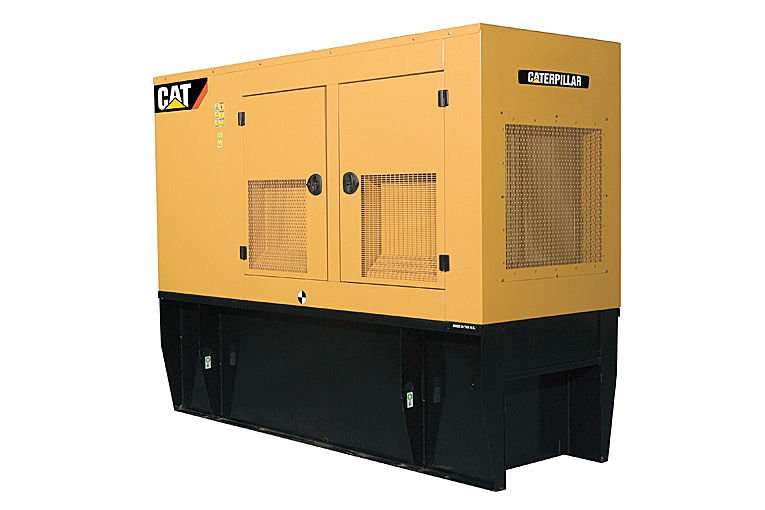

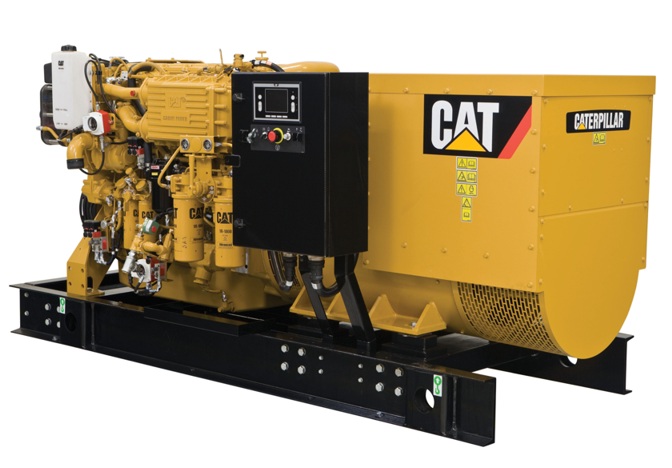

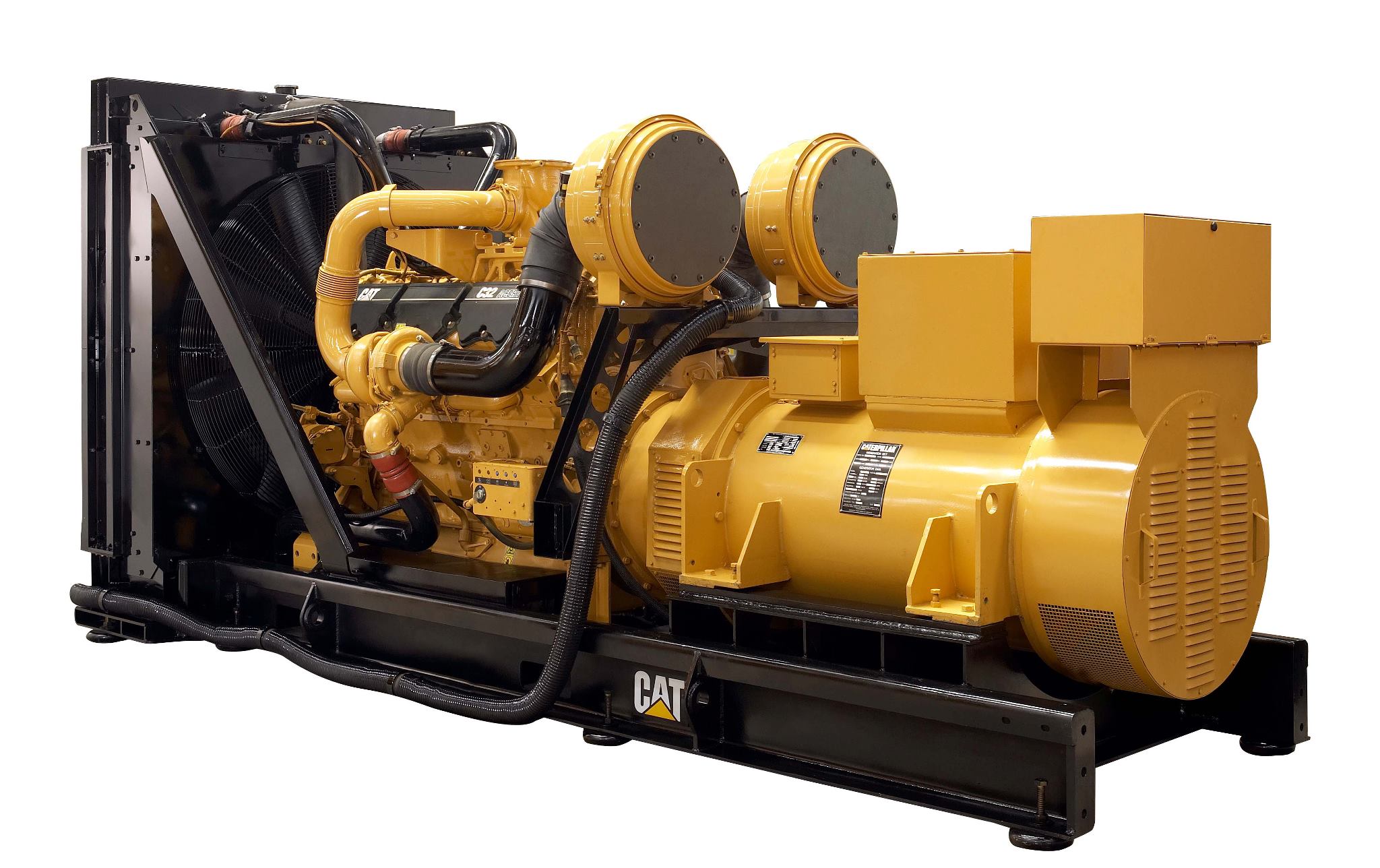

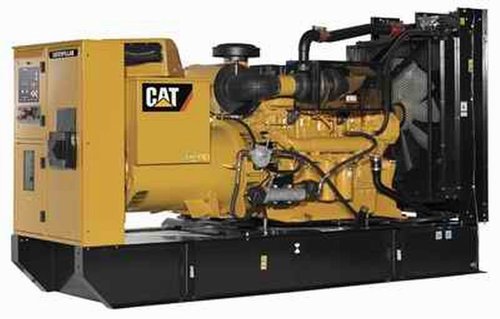

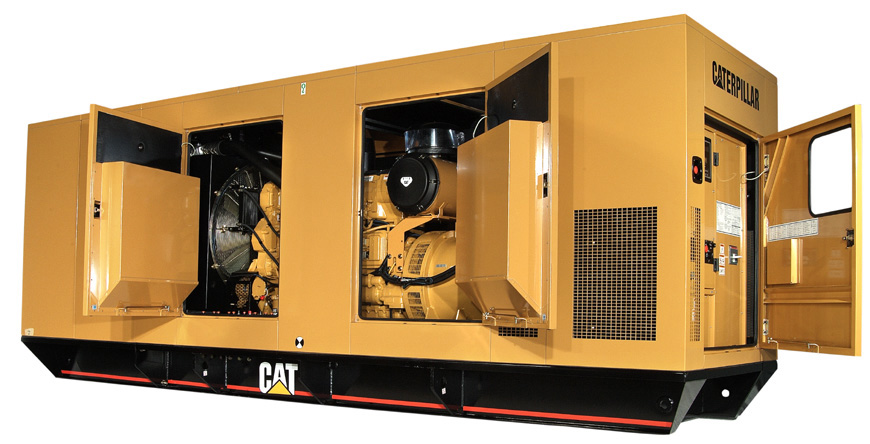

CATERPILLAR GENERATORS

From 275 kVA to 7150 kVa

View more photos
Cat Diesel 50 Hz Standby Gensets for Installation in Europe, Africa, Middle East, and CIS
Rating : Model



 Fuel / Emission Strategy Rating : Model



 Fuel / Emission Strategy
300 kVA : 3406C Low BSFC 1875 kVA : 3512B (11000V) Low Emissions
350 kVA : 3406C Low BSFC 1875 kVA : 3512B (11000V) Low BSFC
400 kVA : 3406C Low BSFC 2000 kVA : 3516 Low BSFC
450 kVA : C15 Low BSFC 2000 kVA : 3516 (11000V) Low BSFC
500 kVA : C15 Low BSFC 2250 kVA : 3516B Low Emissions
550 kVA : C15 Low BSFC 2250 kVA : 3516B Low BSFC
605 kVA : C18 Low BSFC 2250 kVA : 3516B (11000V) Low Emissions
660 kVA : C18 Low BSFC 2250 kVA : 3516B (11000V) Low BSFC
700 kVA : C18 Low BSFC 2500 kVA : 3516B Low Emissions
750 kVA : 3412C Low BSFC 2500 kVA : 3516B Low BSFC
800 kVA : 3412C Low BSFC 2500 kVA : 3516B (11000V) Low Emissions
900 kVA : 3412C Low BSFC 2500 kVA : 3516B (11000V) Low BSFC
1100 kVA : C32 Low Emissions 2687.5 kVA : 3606 Low BSFC
1100 kVA : C32 Low BSFC 3000 kVA : C175-16 Low BSFC
1250 kVA : 3512 Low BSFC 3000 kVA : C175-16 (3300V) Low BSFC
1400 kVA : 3512 Low BSFC 3000 kVA : C175-16 (11000V) Low BSFC
1400 kVA : 3512 (11000V) Low BSFC 3000 kVA : C175-16 MC Low BSFC
1500 kVA : 3512B Low Emissions 3000 kVA : C175-16 MC (11000V) Low BSFC
1500 kVA : 3512B Low BSFC 3100 kVA : C175-16 Low BSFC
1500 kVA : 3512B (11000V) Low Emissions 3100 kVA : C175-16 (3300V) Low BSFC
1500 kVA : 3512B (11000V) Low BSFC 3100 kVA : C175-16 (11000V) Low BSFC
1600 kVA : 3512B Low Emissions 3100 kVA : C175-16 MC Low BSFC
1600 kVA : 3512B Low BSFC 3100 kVA : C175-16 MC (11000V) Low BSFC
1600 kVA : 3512B (11000V) Low Emissions 3575 kVA : 3608 Low BSFC
1600 kVA : 3512B (11000V) Low BSFC 4000 kVA : C175-20 (3300V) Low BSFC
1750 kVA : 3512B Low Emissions 4000 kVA : C175-20 (11000V) Low BSFC
1750 kVA : 3512B Low BSFC 4000 kVA : C175-20 MC (11000V) Low BSFC
1750 kVA : 3512B (11000V) Low BSFC 5375 kVA : 3612 Low BSFC
1750 kVA : 3512B (11000V) Low Emissions 7150 kVA : 3616 Low BSFC
1875 kVA : 3512B Low Emissions
1875 kVA : 3512B Low BSFC


Cat Diesel 50 Hz Prime Gensets for Installation in Europe, Africa, Middle East, and CIS
Rating : Model



 Fuel / Emission Strategy Rating : Model



 Fuel / Emission Strategy
275 kVA : 3406C Low BSFC 1600 kVA : 3512B (11000V) Low BSFC
320 kVA : 3406C Low BSFC 1700 kVA : 3512B Low Emissions
365 kVA : 3406C Low BSFC 1700 kVA : 3512B Low BSFC
410 kVA : C15 Low BSFC 1700 kVA : 3512B (11000V) Low Emissions
455 kVA : C15 Low BSFC 1700 kVA : 3512B (11000V) Low BSFC
500 kVA : C15 Low BSFC 1825 kVA : 3516 Low BSFC
550 kVA : C18 Low BSFC 1825 kVA : 3516 (11000V) Low BSFC
600 kVA : C18 Low BSFC 2000 kVA : 3516B Low Emissions
635 kVA : C18 Low BSFC 2000 kVA : 3516B Low BSFC
680 kVA : 3412C Low BSFC 2000 kVA : 3516B (11000V) Low Emissions
725 kVA : 3412C Low BSFC 2000 kVA : 3516B (11000V) Low BSFC
810 kVA : 3412C Low BSFC 2275 kVA : 3516B Low Emissions
1000 kVA : C32 Low Emissions 2275 kVA : 3516B Low BSFC
1000 kVA : C32 Low BSFC 2275 kVA : 3516B (11000V) Low Emissions
1150 kVA : 3512 Low BSFC 2275 kVA : 3516B (11000V) Low BSFC
1275 kVA : 3512 Low BSFC 2425 kVA : 3606 Low BSFC
1275 kVA : 3512 (11000V) Low BSFC 2725 kVA : C175-16 Low BSFC
1360 kVA : 3512B Low Emissions 2725 kVA : C175-16 (3300V) Low BSFC
1360 kVA : 3512B Low BSFC 2725 kVA : C175-16 (11000V) Low BSFC
1360 kVA : 3512B (11000V) Low Emissions 2825 kVA : C175-16 Low BSFC
1360 kVA : 3512B (11000V) Low BSFC 2825 kVA : C175-16 (3300V) Low BSFC
1500 kVA : 3512B Low Emissions 2825 kVA : C175-16 (11000V) Low BSFC
1500 kVA : 3512B Low BSFC 3250 kVA : 3608 Low BSFC
1500 kVA : 3512B (11000V) Low Emissions 3600 kVA : C175-20 (3300V) Low BSFC
1500 kVA : 3512B HV Low BSFC 3600 kVA : C175-20 (11000V) Low BSFC
1600 kVA : 3512B Low Emissions 4850 kVA : 3612 Low BSFC
1600 kVA : 3512B Low BSFC 6500 kVA : 3616 Low BSFC
1600 kVA : 3512B (11000V) Low Emissions


Cat Diesel 50 Hz Continuous Gensets for Installation in Europe, Africa, Middle East, and CIS
Rating : Model



 Fuel / Emission Strategy Rating : Model



 Fuel / Emission Strategy
910 kVA : C32 Low Emissions 2000 kVA : 3516B Low Emissions
910 kVA : C32 Low BSFC 2000 kVA : 3516B Low BSFC
1000 kVA : 3512 Low BSFC 2000 kVA : 3516B (11000V) Low Emissions
1206 kVA : 3512 Low BSFC 2000 kVA : 3516B (11000V) Low BSFC
1206 kVA : 3512 (11000V) Low BSFC 2200 kVA : 3606 Low BSFC
1320 kVA : 3512B Low BSFC 2500 kVA : C175-16 Low BSFC
1320 kVA : 3512B Low Emissions 2500 kVA : C175-16 (3300V) Low BSFC
1320 kVA : 3512B (11000V) Low Emissions 2500 kVA : C175-16 (11000V) Low BSFC
1320 kVA : 3512B (11000V) Low BSFC 2600 kVA : C175-16 Low BSFC
1500 kVA : 3512B Low BSFC 2600 kVA : C175-16 (3300V) Low BSFC
1500 kVA : 3512B Low Emissions 2600 kVA : C175-16 (11000V) Low BSFC
1500 kVA : 3512B (11000V) Low Emissions 2765-13970 ekW : Power Plants Low BSFC
1500 kVA : 3512B (11000V) Low BSFC 2937.5 kVA : 3608 Low BSFC
1600 kVA : 3516 Low BSFC 3250 kVA : C175-20 (3300V) Low BSFC
1600 kVA : 3516 (11000V) Low BSFC 3250 kVA : C175-20 (11000V) Low BSFC
1750 kVA : 3516B Low Emissions 4400 kVA : 3612 Low BSFC
1750 kVA : 3516B Low BSFC 5875 kVA : 3616 Low BSFC
1750 kVA : 3516B (11000V) Low Emissions
1750 kVA : 3516B (11000V) Low BSFC

Go to top

+

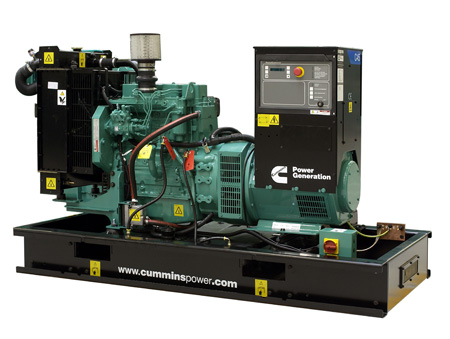

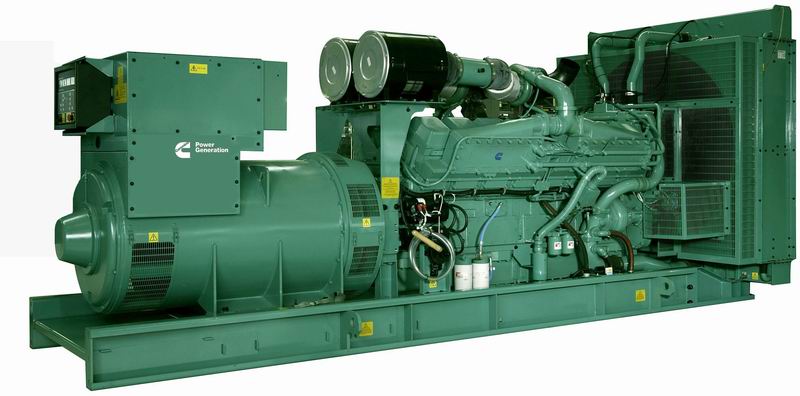

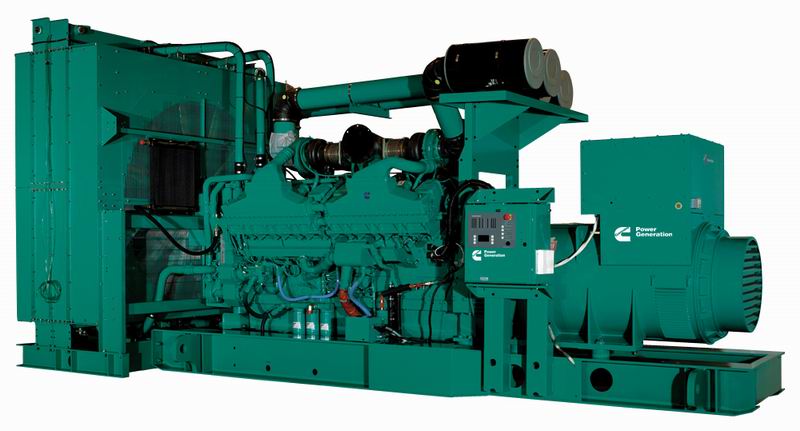

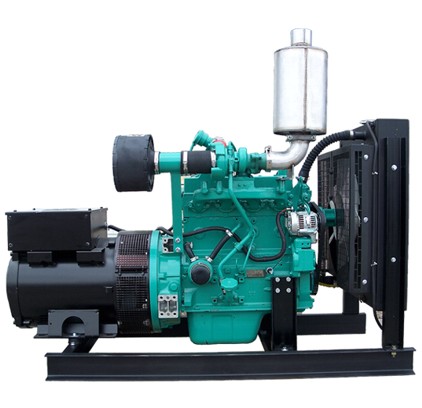

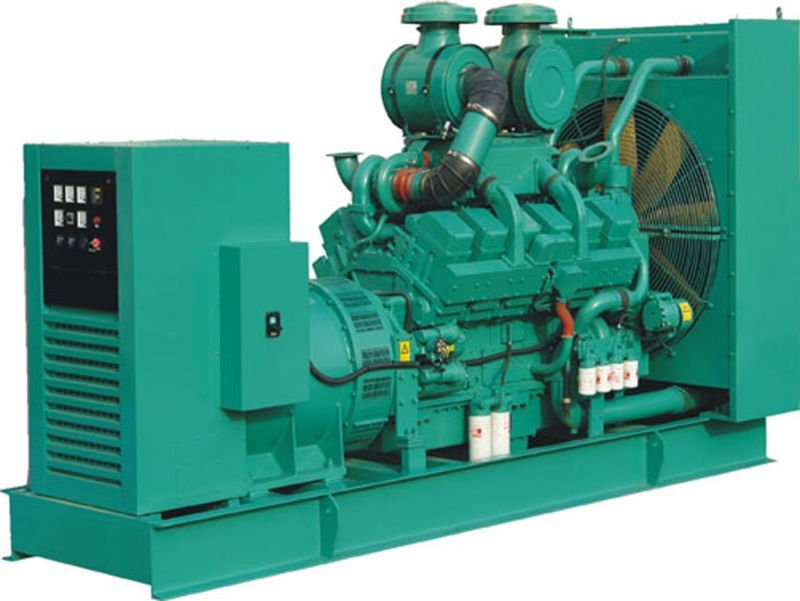

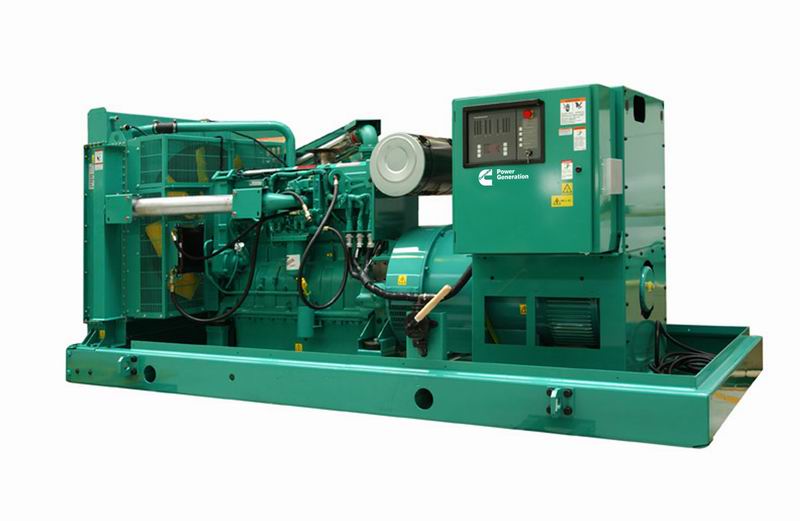

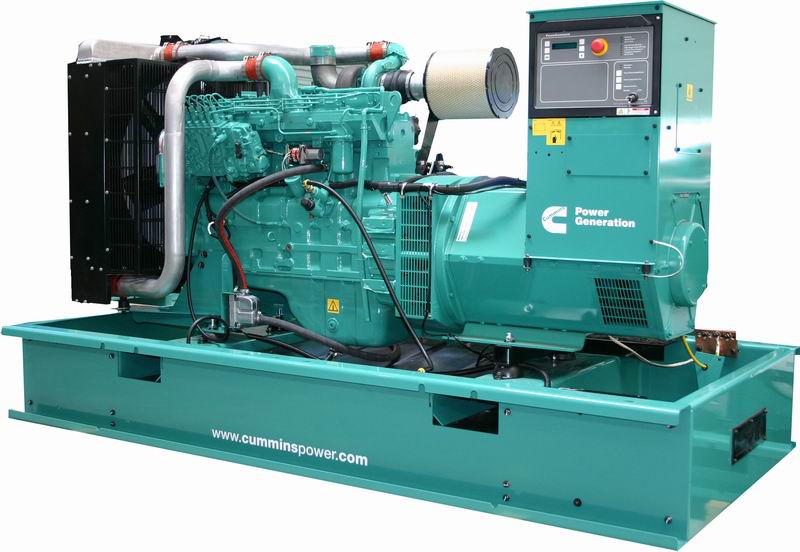

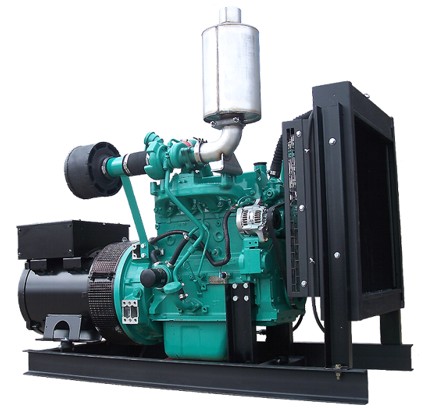

CUMMINS GENERATORS

From 40 kVA to 2500 kVa

View more photos




  50Hz Standby 50Hz Prime

50Hz
Continuous


Genset Model Engine Model kW kVA kW kVA kW kVA Spec. Sheet Genset Data
DGBC Cummins 4B3.9 Series 32 40 29 36     PDF icon (193kb) PDF icon (152kb)
DGCA Cummins 4B3.9 Series 40 50 36 45     PDF icon (192kb) PDF icon (152kb)
DGCB Cummins 4B3.9 Series 50 63 45 56     PDF icon (192kb) PDF icon (153kb)
DGCG Cummins 4BTA3.9 Series 65 81 60 75     PDF icon (185kb) PDF icon (153kb)
DGDB Cummins 6BTA5.9 Series 85 106 80 100     PDF icon (195kb) PDF icon (153kb)
DGDK Cummins 6BTA5.9 Series 100 125 90 113     PDF icon (185kb) PDF icon (153kb)
DGFA Cummins 6CTA8.3 Series 140 175 125 156     PDF icon (191kb) PDF icon (152kb)
DGFB Cummins 6CTA8.3 Series 150 188 135 169     PDF icon (191kb) PDF icon (153kb)
DGFC Cummins 6CTAA8.3 Series 176 220 160 200     PDF icon (194kb) PDF icon (154kb)
DQDAA Cummins QSL9 Series 220 275 200 250     PDF icon (199kb) PDF icon (150kb)
DQDAB Cummins QSL9 Series 250 313 227 284     PDF icon (199kb) PDF icon (150kb)
DQDAC Cummins QSL9 Series 265 331 240 300     PDF icon (199kb) PDF icon (150kb)
DFEH Cummins QSX15 Series 352 440 320 400     PDF icon (188kb) PDF icon (150kb)
DFEJ Cummins QSX15 Series 400 500 364 455     PDF icon (188kb) PDF icon (157kb)
DFEK Cummins QSX15 Series 440 550 400 500     PDF icon (188kb) PDF icon (157kb)
DQCA Cummins QSK23 Series 545 681 500 625     PDF icon (227kb) PDF icon (150kb)
DFHD Cummins QST30 Series 880 1100 800 1000     PDF icon (184kb) PDF icon (157kb)
DQKB Cummins QSK60 Series 1500 1875 1350 1688 1200 1500 PDF icon (239kb) PDF icon (154kb)
DQKC Cummins QSK60 Series 1650 2063 1500 1875 1200 1500 PDF icon (239kb) PDF icon (154kb)
DQKD Cummins QSK60 Series 1800 2250 1600 2000 1320 1650 PDF icon (199kb) PDF icon (154kb)
DQKH Cummins QSK60 Series 2000 2500         PDF icon (239kb) PDF icon (160kb)




++

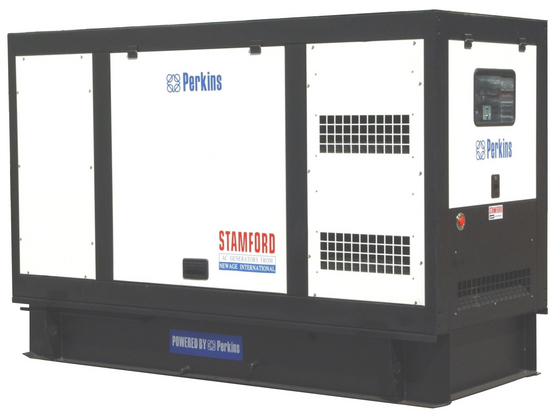

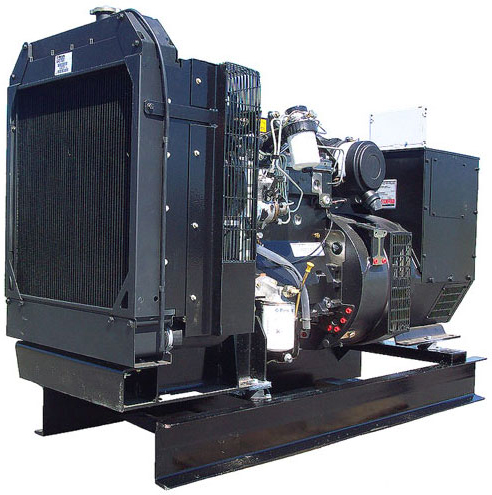

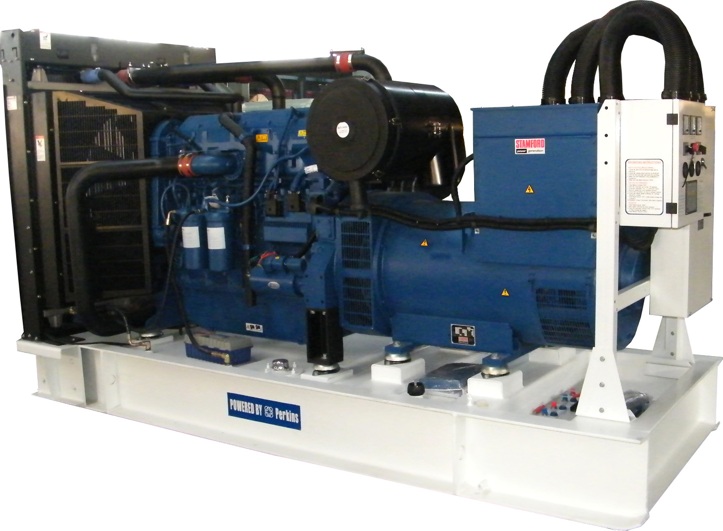

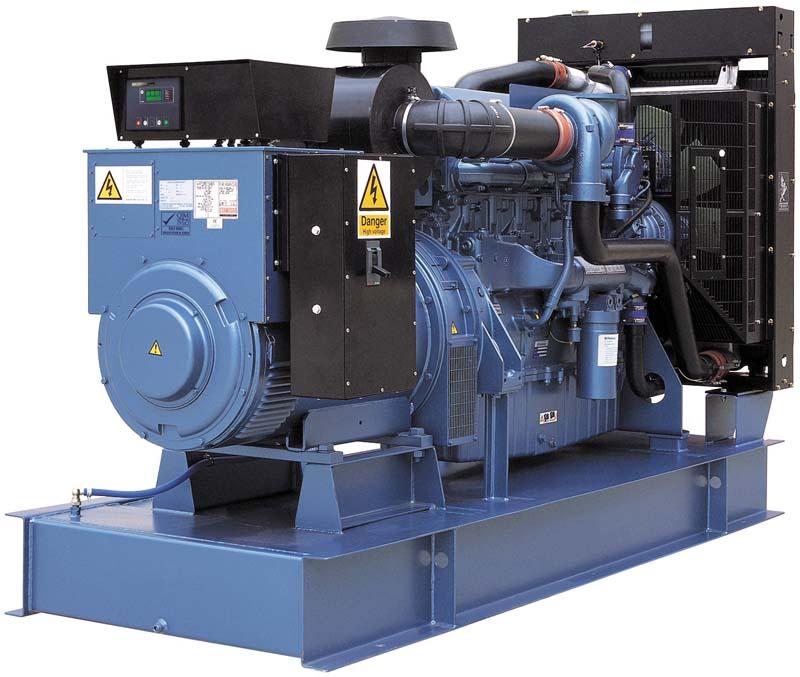

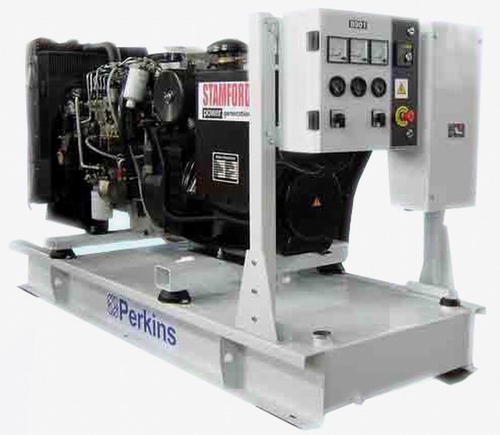

PERKINS GENERATORS

From 9 kVA to 1700 kVa



View more photos

Power World PERKINS Diesel Generator Set Technical Data (50HZ)
Genset Type  Frequency 50Hz Power Factor 0.8  (delay)400V  3Phase 4Wire Rate Fuel Consumption
PERKINS Series Engine Model(1500rpm)


Open frame Dimension


Detail Data
(Click for detailed information)
Prime Power
 Standby Power Diesel (L/h) Engine
L*W*H(mm)
(KW)
(KVA)
 (KVA) (KW)
P9PU
7.2
9
8
10
1.5
403D-11G
1500*730*1200
P13PU
10.4
13
11.2
14
3.1
403D-15G
1500*730*1200
P20PU
16
20
17.6
22
4
404D-22G
1850*760*1200
P27PU
24
30
27
33
7.1
1103A-33G
1720*730*1560
P40PU
36
45
40
50
10.7
1103A-33TG1
1720*730*1560
P53PU
48
60
52.8
66
13.9
1103A-33TG2
1720*730*1560
P57PU
52
65
57.2
72
14.8
1104A-44TG1
2240*730*1470
P70PU
64
80
70
88
18.7
1104A-44TG2
2240*730*1470
P88PU
80
100
88
110
22.6
1104C-44TAG2
2240*730*1500
P120PU
108
135
120
150
31.5
1006TAG2
2380*730*1550
P154PU
140
175
154
193
38
1306-E87TAG1
2953*990*1717
P220PU
200
250
220
275
55
1306-E87TAG6
2953*1003*1717
P280PU
250
313
280
350
63
2306-E14TAG1
3100*1110*2065
P300PU
280
350
300
375
70
2306-E14TAG2
3100*1110*2065
P360PU
320
400
360
450
81
2306-E14TAG3
3100*1110*2065
P400PUB
360
450
400
500
95
2506C-E15TAG1
3300*1150*2197
P440PUA
400
500
440
550
104
2506C-E15TAG2
3300*1150*2197
P560PU
500
625
560
700
139
2806C-E18TAG2
3500*1150*2197
P640PU
580
725
640
800
150
4006-23TAG2A
3900*1470*2197
P720PU
640
800
720
900
170
4006-23TAG2A
4600*1630*2320
P828PU
752
940
828
1035
191
4008-TAG2A
4600*1630*2320
P880PU
800
1000
880
1100
199
4008-TAG2A
4800*2050*2445
P1100PU
1000
1250
1100
1375
249
4012-46TWG2A
5000*2300*2870
P1200PU
1090
1363
1200
1500
272
4012-46TWG3A
5000*2300*2870
P1320PU
1200
1500
1320
1650
298
4012-46TAG2A
5000*2300*2870
P1500PU
1360
1700
1500
1875
338
4012-46TAG3A
5000*2300*2870

Go to top

+++

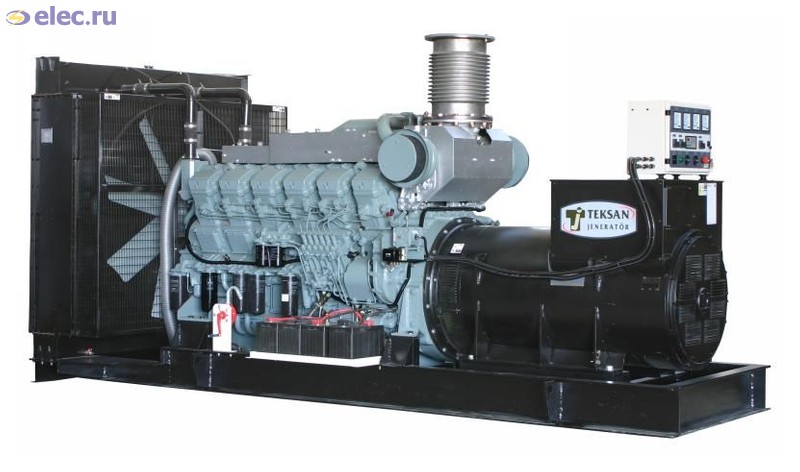

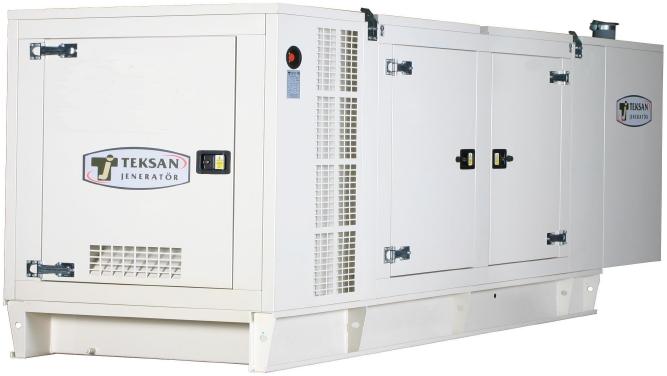

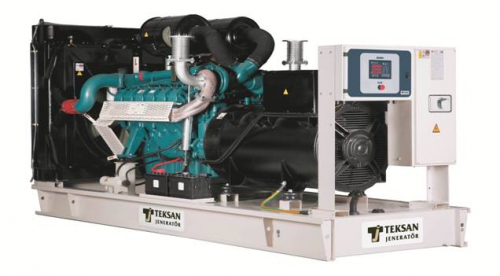

TEKSAN GENERATORS

From 9 kVA to 2510 kVa



View more photos
Generator Model Engine Model Standby Power
(kVA) 		Prime Power
(kVA)
    50 Hz / 400 V 50 Hz / 400 V

TJ9PE5S

403A-11G 9 8
TJ10PE5N 403A-11G 10 9
TJ13PE5S 403A-15G 13 12
TJ14PE5N 403A-15G 14 12
TJ21PE5S 404A-22G 21 19
TJ22PE5A 404A-22G 22 20
TJ33PE5S 1103A-33G 33 30
TJ34PE5A 1103A-33G 34 31
TJ45PE5S 1103A-33TG1 45 40
TJ50PE5S 1103A-33TG1 50 45
TJ51PE5A 1103A-33TG1 51 46
TJ63PE5S 1103A-33TG2 63 60
TJ66PE5S 1103A-33TG2 66 60
TJ67PE5A 1103A-33TG2 67 61
TJ72PE5S 1104A-44TG1 72 65
TJ73PE5A 1104A-44TG1 73 66
TJ89PE5S 1104A-44TG2 89 81
TJ90PE5A 1104A-44TG2 90 82
TJ101PE5A 1104C-44TAG2 101 92
TJ112PE5S 1104C-44TAG2 112 102
TJ114PE5A 1104C-44TAG2 114 103
TJ130PE5S 1006TAG 130 110
TJ145PE5A 1006TAG 145 132
TJ150PE5S 1006TAG 150 139
TJ155PE5A 1006TAG 155 140
TJ165PE5S 1006TAG2 165 149
TJ166PE5A 1006TAG2 166 150
TJ198PE5S 1106A-70TAG3 198 180
TJ200PE5A 1106A-70TAG3 200 183
TJ220PE5S 1106A-70TAG4 220 200
TJ223PE5A 1106A-70TAG4 223 203
TJ250PE5S 1306C-E87TAG4 250 228
TJ253PE5A 1306C-E87TAG4 253 231
TJ275PE5A 1306C-E87TAG6 275 250
TJ275PE5S 1306C-E87TAG6 275 250
TJ302PE5S 1606A-E93TAG4 302 276
TJ304PE5A 1606A-E93TAG4 304 278
TJ330PE5A 1606A-E93TAG5 330 300
TJ330PE5S 1606A-E93TAG5 330 300
TJ385PE5A 2206A-E13TAG2 385 350
TJ400PE5S 2206A-E13TAG2 400 350
TJ409PE5A 2206A-E13TAG2 409 357
TJ450PE5A 2206A-E13TAG3 450 409
TJ450PE5S 2206A-E13TAG3 450 400
TJ500PE5A 2506A-E15TAG1 500 450
TJ508PE5S 2506A-E15TAG1 508 463
TJ560PE5A 2506A-E15TAG2 560 510
TJ561PE5S 2506A-E15TAG2 561 510
TJ625PE5A 2806A-E18TAG1A 625 570
TJ665PE5S 2806A-E18TAG1A 665 610
TJ680PE5A 2806A-E18TAG1A 680 618
TJ721PE5A 2806A-E18TAG2 721 669
TJ723PE5S 2806A-E18TAG2 723 670
TJ819PE5S 4006-23TAG2A 819 745
TJ825PE5A 4006-23TAG2A 825 750
TJ900PE5S 4006-23TAG3A 900 804
TJ905PE5A 4006-23TAG3A 905 808
TJ1000PE5S 4008TAG1A 1000 908
TJ1000PE5A 4008TAG1A 1004 913
TJ1120PE5S 4008TAG2A 1117 1025
TJ1130PE5A 4008TAG2A 1128 1026
TJ1250PE5S 4012-46TWG2A 1242 1200
TJ1265PE5A 4012-46TWG2A 1265 1150
TJ1350PE5S 4012-46TWG2A 1350 1241
TJ1400PE5A 4012-46TWG2A 1396 1263
TJ1500PE5S 4012-46TWG3A 1495 1360
TJ1500PE5A 4012-46TWG3A 1514 1377
TJ1600PE5S 4012-46TWG4A 1595 1491
TJ1600PE5A 4012-46TWG4A 1609 1500
TJ1650PE5A 4012-46TAG2A 1650 1500
TJ1650PE5S 4012-46TAG2A 1658 1506
TJ1770PE5S 4012-46TAG3A 1770 1650
TJ1900PE5S 4012-46TAG3A 1887 1716
TJ1900PE5A 4012-46TAG3A 1899 1727
TJ2000PE5S 4016-61TRG1 2012 1862
TJ2025PE5A 4016-61TRG1 2025 1874
TJ2200PE5A 4016-61TRG2 2200 2000
TJ2250PE5S 4016-61TRG2 2250 2017
TJ2280PE5A 4016-61TRG2 2278 2025
TJ2350PE5S 4016-61TRG3 2360 2200
TJ2500PE5S 4016-61TRG3 2489 2240
TJ2500PE5A 4016-61TRG3 2510 2260

Go to up

HOME  |  ABOUT  |   PRODUCTS  |  SOLUTIONS  |  SERVICES  |  SUPPORT  |  CONTACT

Copyright ©2010-2015 Al-Masder Al-Motataoer Co.  All Rights Reserved  ::  Designed By Al-Masder
