Eaton E Series UPS

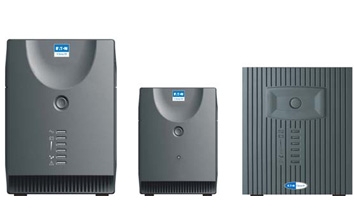

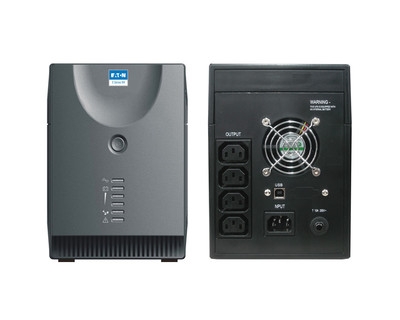

E Series NV UPS
400-2000 VA

View more photos

The E Series NV line interactive uninterruptable power system (UPS) from Eaton provides affordable power protection for your personal computer and peripherals. While packed with valuable features such as modem protection and plentiful power receptacles, the compact size is ideal for limited office and home working spaces.

aton E Series NV UPS

Back to Etaon UPS Family

Features :

*
*
*
*
*
*

*
*

Automatic Voltage Regulation (AVR) stabilizes fluctuating power sources.

Microprocessor control design ensures high reliability.

Up to six receptacles, allowing easy equipment connection.

User replaceable batteries allow easy maintenance.

Start-on-battery provides portable power capability.

WINPOWER software monitors power conditions and gracefully shuts down computer applications prior to battery depletion.

Data surge protection protects phone, modem and internet connections.

Intuitive LED indicators display UPS status.

Eaton E Series DX UPS

View more photos

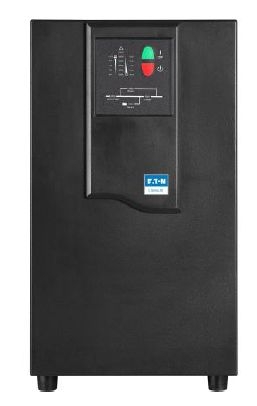

E Series DX UPS 1-20 kVA
The affordable E Series DX UPS double-conversion online UPS protects mission-critical applications from downtime, data loss and corruption. The double-conversion architecture incorporates rectifier and inverter stages to completely isolate the output power from all input anomalies. By adapting to a wide range of input voltages, the E Series DX avoids battery usage during minor power fluctuations, saving its capacity for times when utility power is completely lost.

DX 1-20kVA UPS

Features :

*
*
*
*
*
*
*
*
*
*

Online double-conversion topology assures maximum reliability.
Wide input voltage range appropriate for the harshest electrical environments.
Standard models for fixed run-time performance.
Tested for generator compatibility.
Automatic bypass for fault tolerance.
Optional SNMP communications provide remote network-based monitoring.
XL models for customized, long run time applications, with fast recharging.
Cold start-on-battery power allows portable power.
WINPOWER software monitors power conditions.
Intuitive front-panel user interface for consistent status indication.

Eaton E Series DX UPS

View more photos

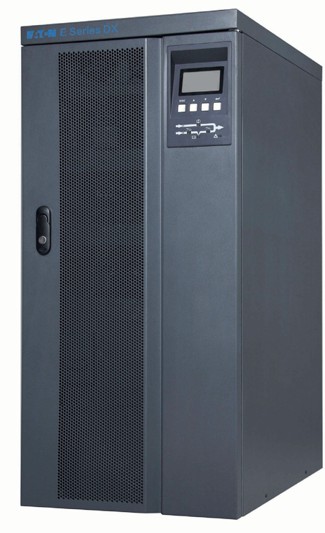

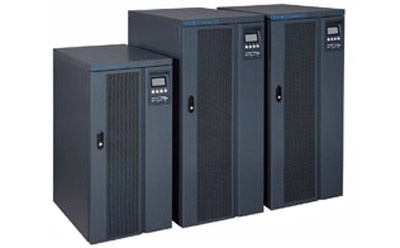

E Series DX UPS 20-40 kVA 3-Phase
The Eaton E Series DX is a three-phase, double conversion uninterruptible power supply (UPS), and is available in 20, 30 and 40kVA output power rates with internal batteries capable to provide runtime up to 15 min. Its design fits perfectly to any environment where uninterrupted power feed is required to secure critical equipment’s continuous operation. The E Series DX UPS provides a perfect solution for power protection.

DX 20-40kVA UPS

Features :

*
*

*

*
*

With E series DX, each phase is independently double converted and regulated.
In addition, PFC (power factor control) controller is used for real time control and data processing, ensuring high availability at all times.
Further extent reliability is accomplished by introducing intelligent charge mode which significantly prolongs service life of batteries.
Also, possibility to have dual feed on UPS input adds availability thus increases reliability of system.
As an added benefit, IP21 compliant design makes E Series DX a perfect fit to industrial and other applications, where harsh environmental conditions may set extent requirements to mechanical design.
