General |
|
Topology |
On-line
double
conversion
with
automatic
by-pass
and
power
factor
correction |
|

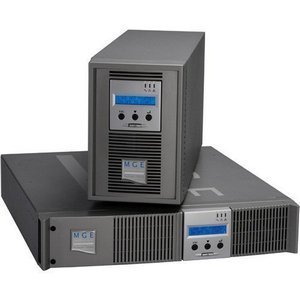

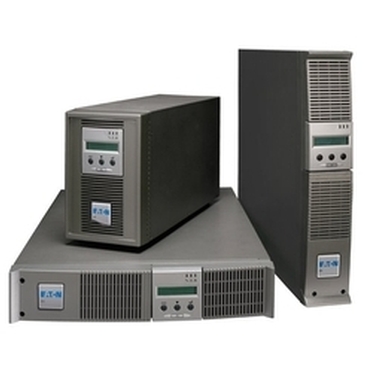

Configuration |
Mini
Tower |
|
Part
Number |
68180 |
|
Color |
metallic
grey |
|
Rating (VA/Watts) |
700/630 |
|
Dimensions
(H x W x
D, mm) |
242 x
153 x
440 |
|
Weight
(kg) |
12.5 |
|
Warranty |
2 years
warranty,
Standard
product
exchange,
including
the
battery |
| |
|
Electrical
Input |
|
Connection |
(1) IEC-320-C14
|
|
Input
Voltage
Without
Using
Batteries |
100/120/140/160
V to
284V for
load
level
<20%,
<33%,
<66%,
>=66% of
rated
output |
|
Input
frequency
Range
Without
Using
Batteries |
40 to 70
Hz |
| |
|
Electrical
Output |
|
Voltages |
230 V
(adjustable
to
200/208/220/240/250
V) |
|

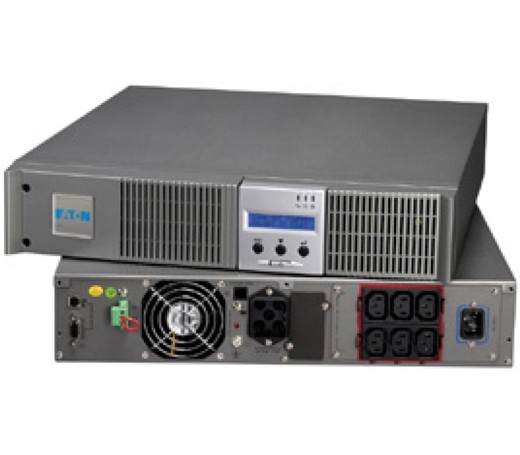

Output
Receptacles |
(6) IEC-320-C13
|
|
Remotely
controlled
sockets |
2
independent
groups:
2 + 1
IEC C13
(10A)
sockets |
|
Output
Frequency |
50/60 Hz
auto-select
or
frequency
converter
mode (derated
by 15%
when
used as
a
frequency
converter) |
| |
|
Battery |
|
Battery
Management |
Automatic
weekly
test
(period
adjustable
using
LCD
display
or in
software
supplied),
automatic
recognition
of
external
battery
units
=>continuous
maximisation
of
backup
time +
deep
discharge
protection |
| |
|
Communications |
|

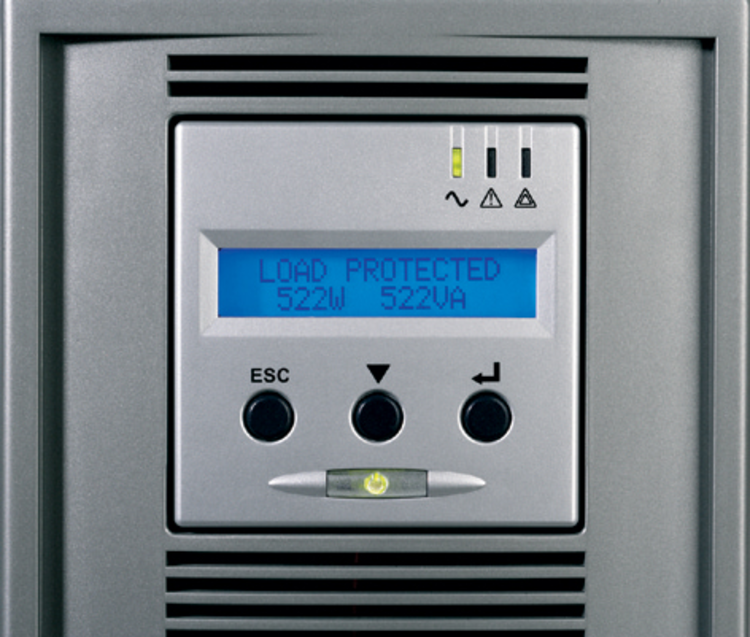

User
Interface |
(3) LEDs
+
adjustable
multilingual
display:
display
of
measurements,
access
to
control
and
setup
menus |
|
Communication
Ports |
1 USB
port + 1
RS232
serial
port and
relay
contacts
(USB and
RS232
serial
ports
cannot
be used
simultaneously)
1 mini
terminal
block
for
remote
ON/OFF
and
emergency
stop |
|
Communications
Card
Slots |
1 slot
for NMC
Minislot
card or
NMC
ModBus/JBus
or MC
Contacts/Serial |
| |
|
Environmental
&
Standards |
|
Audible
Noise |
45 dBA |
|
Operating
Temperature |
0°C to
40°C
continuous |
|
Performance
- Safety
- EMC |
IEC/EN
62 040-3
(VFI-SS-113),
IEC/EN
62
040-1-1,
IEC/EN
60 950-1
(RD),
IEC/EN
62 040-2
C1 Class |
|
Approvals |
CE, TüV
GS, CB
report,
cTüV-US
|
