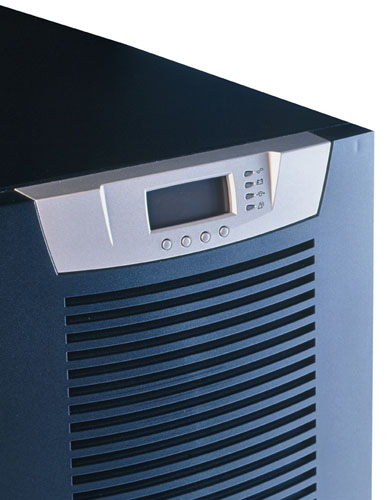

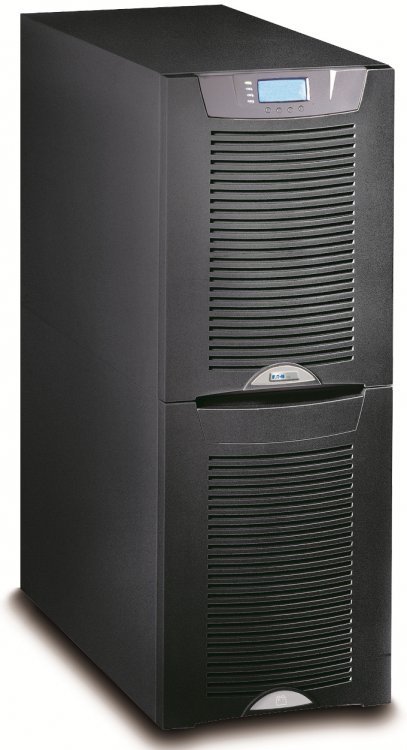

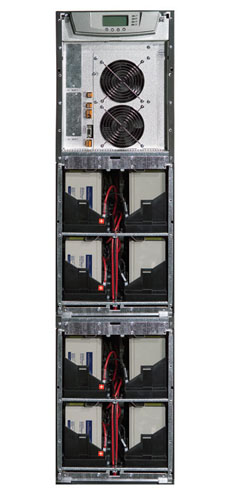

| UPS output power rating (0,9 p.f.) | ||||||
| kVA | 8 | 10 | 12 | 15 | 20 | 30 |
| kW | 7.2 | 9 | 10.8 | 13.5 | 18 | 27 |
| General | ||||||
| Efficiency in double conversion mode (full load) | 92% | 93% | ||||
| Efficiency in double conversion mode (half load) | 90% | 91% | ||||
| Efficiency in high efficiency mode | up to 98% | - | ||||
| Distributed paralleling with Hot Sync technology | 4 | |||||
| Field upgradeable | yes | |||||
| Inverter/rectifier topology | transformer-free IGBT with PWM | |||||
| Audible noise | < 50 dB | |||||
| Altitude (max) | 1000 m without derating (max 2000 m) | |||||
| Input | ||||||
| Input wiring | 1 ph or 3 ph + N + PE | 3 ph + N + PE | ||||
| Nominal voltage rating (configurable) | 220/380, 230/400, 240/415 V 50/60 Hz | |||||
| Input voltage range | Low -20% at 100% load/-50% at 50% load without battery discharge; High +10%/max +20% | |||||
| Input frequency range | 45-65 Hz | |||||
| Input power factor | 0,99 | |||||
| Input ITHD | less than 4,5% | |||||
| Soft start capability | Yes | |||||
| Internal backfeed protection | Yes | |||||
| Output | ||||||
| Output wiring | 1 ph + N + PE | |||||
| Nominal voltage rating (configurable) | 220/380, 230/400, 240/415 V 50/60 Hz | |||||
| Output UTHD | <3% (100% linear load); <5% (reference non linear load) | |||||
| Output power factor | 0,9 (e.g. 9 kW at 10 kVA) | 0,9 (e.g. 27 kW at 30 kVA) | ||||
| Permitted load power factor | 0,7 lagging - 0,8 leading | |||||
| Overload on inverter | 10 min 100-110%; 1 min 110-125%; 5 sec 125-150%; 300 ms >150% | |||||
| Overload when bypass available | 60 min 100-110%, 10 min 110-125%; 1 min >125- 150% | |||||
| Battery | ||||||
| Type | Maintenance-free VRLA batteries, NiCd | |||||
| Charging method | ABM technology or Float | |||||
| Temperature compensation | Optional | |||||
| Battery nominal voltage (lead-acid) | 384 V (32x12 V, 192 cells) | 432 V (36x12 V, 216 cells) | ||||
| Charging current / Model | Default 3 A *Max 30 A |
Default 3 A *Max 60 A |
||||
| *May be limited by maximum UPS input current rating | ||||||
| Accessories | ||||||
|
Isolation transformer, long-life batteries, external battery cabinets, UPS Center (input, bypass, distribution), X-Slot connectivity (Web/SNMP, ModBus/ Jbus, Relay, Hot Sync, ViewUPS-X remote display), Hot Sync parallel tie cabinet, integrated manual bypass, external maintenance bypass switch |
Isolation transformer, long-life batteries, external battery cabinets, X-Slot connectivity (Web/SNMP, ModBus/ Jbus, Relay, Hot Sync, ViewUPS-X remote display), Hot Sync parallel tie cabinet, integrated manual bypass, external maintenance bypass switch | |||||
| Communications | ||||||
| X-Slot | 2 communication bays | |||||
| Serial ports | 1 available | |||||
| Relay inputs/outputs | 2/1 programmable | |||||
| Compliance with standards | ||||||
| Safety (CB certified) | IEC 62040-1, IEC 60950-1 | |||||
| EMC | IEC 62040-2 | |||||
| Performance | IEC 62040-3 | |||||
In the interests of continuous product improvement all specifications are subject to change without notice.
| Stand-alone UPS with 1-phase input / 1-phase output | |||||
| Part number | Description | Rating | Back-up (p.f. 0.7) | Dimensions (HxWxD) | Weight |
| 1022532 | 9155-8-S-10-32x7Ah | 8 kVA / 7.2 kW | 10 min | 817x305x702 mm | 155 kg |
| 1022533 | 9155-8-S-15-32x9Ah | 8 kVA / 7.2 kW | 15 min | 817x305x702 mm | 160 kg |
| 1022534 | 9155-8-S-28-64x7Ah | 8 kVA / 7.2 kW | 28 min | 1214x305x702 mm | 250 kg |
| 1022535 | 9155-8-S-33-64x9Ah | 8 kVA / 7.2 kW | 33 min | 1214x305x702 mm | 275 kg |
| 1022536 | 9155-10-S-10-32x9Ah | 10 kVA / 9 kW | 10 min | 817x305x702 mm | 160 kg |
| 1022537 | 9155-10-S-20-64x7Ah | 10 kVA / 9 kW | 20 min | 1214x305x702 mm | 250 kg |
| 1022538 | 9155-10-S-25-64x9Ah | 10 kVA / 9 kW | 25 min | 1214x305x702 mm | 275 kg |
| Stand-alone UPS with 3-phase input / 1-phase output | |||||
| 1022480 | 9155-8-N-10-32x7Ah | 8 kVA / 7.2 kW | 10 min | 817x305x702 mm | 155 kg |
| 1022481 | 9155-8-N-15-32x9Ah | 8 kVA / 7.2 kW | 15 min | 817x305x702 mm | 160 kg |
| 1022482 | 9155-8-N-28-64x7Ah | 8 kVA / 7.2 kW | 28 min | 1214x305x702 mm | 250 kg |
| 1022483 | 9155-8-N-33-64x9Ah | 8 kVA / 7.2 kW | 33 min | 1214x305x702 mm | 275 kg |
| 1022484 | 9155-10-N-10-32x9Ah | 10 kVA / 9 kW | 10 min | 817x305x702 mm | 160 kg |
| 1022485 | 9155-10-N-20-64x7Ah | 10 kVA / 9 kW | 20 min | 1214x305x702 mm | 250 kg |
| 1022486 | 9155-10-N-25-64x9Ah | 10 kVA / 9 kW | 25 min | 1214x305x702 mm | 275 kg |
| 1022487 | 9155-12-N-8-32x9Ah | 12 kVA / 10.8 kW | 8 min | 817x305x702 mm | 160 kg |
| 1022488 | 9155-12-N-15-64x7Ah | 12 kVA / 10.8 kW | 15 min | 1214x305x702 mm | 250 kg |
| 1022489 | 9155-12-N-20-64x9Ah | 12 kVA / 10.8 kW | 20 min | 1214x305x702 mm | 275 kg |
| 1022490 | 9155-15-N-5-32x9Ah | 15 kVA / 13.5 kW | 5 min | 817x305x702 mm | 160 kg |
| 1022491 | 9155-15-N-10-64x7Ah | 15 kVA / 13.5 kW | 10 min | 1214x305x702 mm | 250 kg |
| 1022492 | 9155-15-N-15-64x9Ah | 15 kVA / 13.5 kW | 15 min | 1214x305x702 mm | 275 kg |
| 1026598 | 9155-20-N-5-1x9Ah-MBS | 20 kVA / 18 kW | 5 min | 1684x494x762 mm | 300 kg |
| 1026599 | 9155-20-N-13-2x9Ah-MBS | 20 kVA / 18 kW | 13 min | 1684x494x762 mm | 400 kg |
| 1026600 | 9155-20-N-22-3x9Ah-MBS | 20 kVA / 18 kW | 22 min | 1684x494x762 mm | 500 kg |
| 1026601 | 9155-20-N-31-4x9Ah-MBS | 20 kVA / 18 kW | 31 min | 1684x494x762 mm | 600 kg |
| 1026602 | 9155-30-N-7-2x9Ah-MBS | 30 kVA / 27 kW | 7 min | 1684x494x762 mm | 400 kg |
| 1026603 | 9155-30-N-13-3x9Ah-MBS | 30 kVA / 27 kW | 12 min | 1684x494x762 mm | 500 kg |
| 1026604 | 9155-30-N-20-4x9Ah-MBS | 30 kVA / 27 kW | 20 min | 1684x494x762 mm | 600 kg |

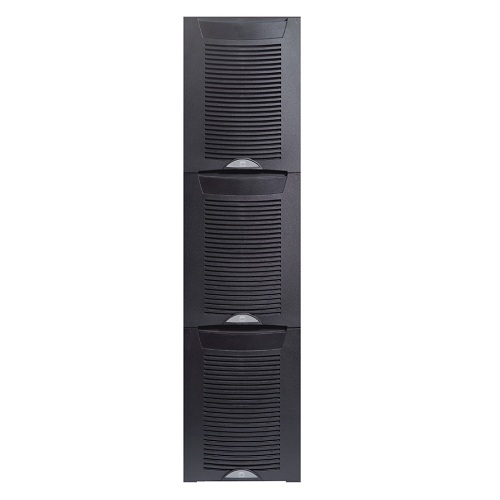

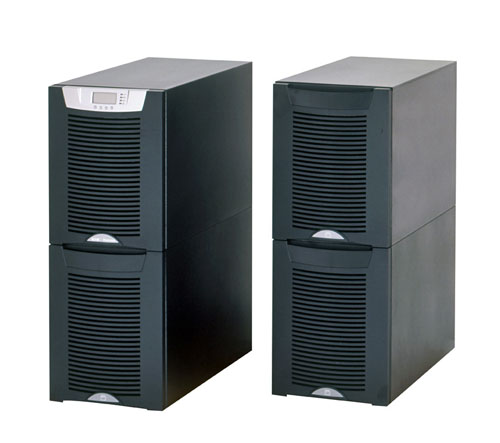

| External battery cabinets | |||||
| 1022561 | 9X55-BAT5-64x7Ah | 2x32x7 Ah | Check technical specifications | 817x305x699 mm | 195 kg |
| 1022562 | 9X55-BAT5-96x7Ah | 3x32x7 Ah | Check technical specifications | 1214x305x699 mm | 310 kg |
| 1025169 | 9355-BAT-1x24Ah (30 kVA) | 1x36x24 Ah | 1684x494x758 mm | 510 kg | |
| 1025170 | 9355-BAT-2x24Ah (30 kVA) | 2x36x24 Ah | 1684x494x758 mm | 870 kg | |
