Eaton Surge Protection & Filter
Devices |
|
|
|
|
|

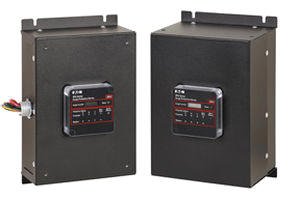

Eaton's SPD
series surge protectors |
|
SPD
series surge protectors
 Eaton's
SPD series surge protectors
|
Eaton's
SPD
series surge
protectors
are the
latest and
most
advanced
UL 1449 3rd
Edition
certified
surge
protection
devices.
Application
of SPD
Series units
throughout a
facility
will ensure
that
equipment is
protected
with the
safest and
most
reliable
surge
protective
devices
available.
SPD Series
units are
available in
all common
voltages and
configurations
and also in
a variety of
surge
current
capacity
ratings from
50 through
400 kA.
Three
feature
package
options are
also
available to
choose from.
The breadth
of the SPD
Series’
features,
options and
configurations
ensures that
the correct
unit is
available
for all
electrical
applications.
Featurse
:
-
-
Utilizes
thermally
protected
metal
oxide
varistor
(MOV)
technology
.
-
-
20 kA
nominal
discharge
current
(In)
rating
(maximum
rating
assigned
by UL) .
-
-
50
through
400 kA
surge
current
capacity
ratings
.
-
-
Three
feature
package
options.
-
-
200 kA
short
circuit
current
rating (SCCR)
.
-
-
10-year
warranty.
|
|
Surge
Protection Device Type 1 |
|
SP1 is a UL 1449 3rd edition
listed surge protective device
Eaton SP1
Surge Protective Device (SPD)
|
-
Eaton's SP1 is a UL 1449 3rd edition listed surge protective device that provides reliable, cost-effective surge protection. Install on either the line or load side of the service entrance disconnect. Multiple mounting options coupled with a compact footprint enables installation of the SP1 in a wide range of applications. Available in many common voltages and configurations. Can be used as a replacement for devices formerly known as secondary surge or lightning arrestors
-
-
Featurse :
-
- LED indicator light makes it easy to see whether the unit is powered or there has been loss of protection.
-
- Half-inch nipple molded into enclosure enables quick and easy mounting.
-
- Compact footprint saves space.
-
- Two-year warranty supports the claim of product performance, quality, and reliability.
|
|
|
|
|
|
|
|
Eaton’s Industrial/Commercial
surge protection devices (SPD
series) ensure that equipment is
protected with the safest, most
reliable and most advanced UL
1449 3rd Edition certified surge
protectors. The array of
features, options, and
configurations ensures there is
a unit for all electrical
applications, including service
entrances, distribution
switchboards, panelboards, and
point-of-use applications.
|
|
Featurse :
-
- Common voltages and configurations as well as a variety of surge current capacity ratings from 50 through 400 kA provide application flexibility.
-
- UL 1449 3rd Edition recognized component for the United States and Canada, covered by Underwriters Laboratories certification and follow-up service.
-
- Utilizes thermally protected metal oxide varistor (MOV) technology, which provides both high energy capacity and fail-safe operation.
-
- Available integrated within panelboards, switchboards, motor control centers, switchgear, automatic transfer switches, and bus plugs.
-
- Side mount units offer factory-sealed assembly, which prevents arc flash and shock hazards.
-
- Side mount units contain no replaceable parts or items that require periodic maintenance for reduced maintenance costs
|
|
OEM and Panel
Mount Surge |
|
|
Eaton's
CVX050
and
CVX100
Surge
Protective
Devices
(SPDs)
ensure
that
a
customer's
investment
in
equipment
and
processes
are
protected
from
the
damaging
effects
of
voltage
transients.
Designed
for
installation
on
service
entrance,
branch
panels,
or
individual
equipment
disconnects,
the
CVX
series
provides
enhanced
surge
protection
for
mission-critical
applications.
Available
in
configurations
and
current
capacities
of
50
or
100
kA
per
phase.
|
|
Featurse :
-
- Utilizes thermally protected metal oxide varistor (MOV) technology, which provides both high energy capacity and fail-safe operation.
-
- Threshold Response Network suppresses high energy impulse transients, providing robust protection.
-
- NEMA 4X enclosure offers rugged construction and product durability as well as integral mounting configuration.
-
- High intensity LED Phase status indicators for easy readability.
|
|
Eaton OEM and Panel
Mount Protection (Critical Load
Filters) |
|
|
Eaton's
AEGIS
Powerline
filters
protect
against
the
full
spectrum
of
transient
disturbances,
offering
critical
load
protection
and
effective
noise
reduction.
Ideal
for
programmable
controllers,
scanning
devices,
ATMs,
alarm
systems,
microprocessor-controlled
OEM
products,
medical
electronics,
and
more.
Featurse
:
-
- Eaton’s OEM and Panel Mount Critical Load Surge Filters offers superior protection and value, high quality, and the ultimate in reliability.
-
- Unique series hybrid design extends the life of your microprocessors by eliminating degrading power disturbances.
-
- High performance filtering capabilities guarantees a superior level of reliability.
-
- Status monitoring lights expedite your troubleshooting efforts during downtime situations.
-
- Eaton is the only manufacturer to offer a five-year extended warranty on the microprocessor power supply protected by - AEGIS, backing up its claim of product performance, quality, and reliability.
|
|
Eaton SPV - Commercial
Grade and Light Industrial Surge
Protection |
|
|
|
Eaton’s SPV is a commercial
grade and light industrial
surge protection device that
combines surge suppression
components and EMI/RFI filtering
to provide effective protection
for sensitive electronic loads.
Use of the SPV can prevent
costly downtime and equipment
damage from surges (or
transients) caused by lightning,
utility grid switching,
switching of external/internal
inductive or capacitive loads
and other sources.
|
-
Featurse :
- Surge Plane technology ensures reliability and performance by using a low impedance copper platform.
-
- Compact design enables close mounting to electrical distribution equipment.
-
- Status indicator lights let you easily monitor supply power, surge suppression component status, and fusing.
-
- Choose from 6 surge current ratings to meet a variety of application needs.
-
- UL 1449 3rd Edition certification.
|
|
Eaton SPD-FG Surge Diverters |
|
|
|
SPD-FG
Surge Diverters
designed for IEC, Class I,
Direct strike applications.
Features multi element spark gap
technology with no follow
current and exceptionally low
let through voltage at 50kA,
10/350us.
Featurse :
-
- 1 mode protection. N-E, L-E or L-N.
-
- 50kA surge suppression rating.
-
- Compact modular solution.
-
- 2 unit DIN43880 case, 36mm DIN-rail mount.
-
- 5 Year Warranty.
|
|
|
|
Eaton
CSFi Din Rail Compact
Surge Filter |
 |
Powerware CSFi Din Rail Compact Surge Filter
Series Filter with Shunt surge diverter, 1 Phase 3-25A, 25 kA Primary
Eaton CSFi Compact Filter
|
|
|
The CSFi
is designed for mounting in
distribution boards to provide
secondary protection against
power surges caused by external
sources such as lightning
strikes and substation switching
as well as providing a measure
of protection from surge events
generated on the secondary side
of the filter. An ideal device
for Category B locations.The
CSFi is a
3-stage protection unit
utilising primary and secondary
MOV protection in conjunction
with a Low-Q LC filter. The unit
provides filtering of the line
harmonics, noise and RF
transmitters with a cut-off
frequency of <10kHz and a
nominal attenuation of 45dB. All
CSFi units are
provided with indicators showing
power and protection status.
Alarms are indicated on the
front panel of the unit. The
alarm function provides a
summary alarm output for
protection degradation as well
as power failure. The protection
alarm is configured to partial
protection failure. The summary
alarm relay contacts provide
remote signalling to other
equipment.
 |
|
Eaton DSFi Single Phase High
Performance Surge Filter |
|
|
|
The DSFi is designed to
provide secondary protection
against power surges caused by
external sources such as
lightning strikes and substation
switching as well as providing a
measure of protection from surge
events generated on the
secondary side of the filter. An
ideal device for Category B
locations. The DSFi is a 3-stage
protection unit utilizing
primary and secondary MOV
protection in conjunction with a
2-stage Low-QLC filter (i.e. 2
inductive coils)using separate
differential mode and common
mode circuits. The unit provides
filtering of the line harmonics,
noise and RF transmitters with a
cut-off frequency of <1.5kHz and
a minimum attenuation of >55dB
to10MHz.Secondary MOV protection
(in all 3 modes) is located
after the inductive coils, to
provide further surge reduction
and to protect against
load-generated surges. |
Featurse :
-
-
Surge suppression and
filtering in a single
package
-
-
2 mode, 5 element series
filter
-
-
3 mode, 2 stage surge
diverter
-
-
Modular design
-
-
Enclosed in IP20 painted
steel housing
-
-
Protection Fail Alarm Relay
-
-
5 year warranty
|
|
Eaton SPDI
DIN Rail Mounted Surge Diverters |
 |
SPD120i
The SPD120i is designed to protect single-phasepower systems against surges and spikes caused by lightning strikes and other electrical sources.
SPD3Ni
The SPD3Ni is designed to protect 3-phase power systems against damage from surges and spikes caused by lightning and other electrical sources.
SPD3Gi
The SPD3Gi is designed to protect 3-phase power systems against damage from surges and spikes caused by lightning and other electrical sources.
Eaton's SPDI surge diverter
|
|
Eaton's
SPDI
surge
diverters
provide
the
ultimate
solution
for
surge
protection
in
single
&
multi-phase
systems.
Whether
the
application
involves
residential
homes,
telecommunication
facilities,
hospitals,
schools
or
heavy
industrial
plants,
the
SPDI
surge
diverters
provide
protection
against
the
damaging
effects
of
lightning,
utility
switching,
switching
electric
motors
&
more.
SPDI
surge
diverters
can
be
installed
as
point-of-entry
or
sub-board
protection
&
are
connected
in
parallel
with
the
power
circuit
via
separate
protection
HRC
fuses.
These
devices
are
ideal
for
Category
C &
B
locations.
-
Featurse :
- Surge ratings starting from 50kA to 120kA (8/20uS)
-
- DIN43880 profile IP20 enclosure allows compatibility with most common switchboards
-
- Versatile mounting clips offer the option of DIN rail or surface mount with ease
-
- Clear & concise protection status indicators & a dry-contact alarm
-
- Extended voltage range to suit most common power distribution systems
Eaton SPDi DIN - TECHNICAL
SPECIFICATIONS
:
|
|
SPD120i |
|
Input voltage: |
220-277VAC (380-480V)
40-70 Hz, 1 Phase |
|
Maximum
continuous operating
voltage (MCOV): |
320VAC |
|
Initial
clamp voltage: |
560V |
|
Maximum
rated surge current –
Ismax 8/20us: |
100kA |
|
Nominal
surge current – In
8/20us: |
50kA |
|
SPD3Ni |
|
|
Input voltage: |
220-277VAC (380-480V)
40-70 Hz, 3 Phase |
|
Maximum
continuous operating
voltage (MCOV): |
320VAC |
|
Initial clamp voltage: |
560V |
|
Maximum
rated surge current –
Ismax 8/20us: |
40kA /
Phase |
|
Nominal
surge current – In
8/20us: |
20kA /
Phase |
|
SPD3Gi |
|
|
Input voltage: |
220-300VAC (380-520V)
40-70 Hz, 3 Phase |
|
Maximum
continuous operating
voltage (MCOV): |
350VAC |
|
Initial clamp voltage: |
680V |
|
Maximum
rated surge current –
Ismax 8/20us: |
40kA /
Phase |
|
Nominal
surge current – In
8/20us: |
20kA /
Phase |
|
|
Eaton
SSFi – Portable Single Phase
Surge Filters |
 |
SSFi Portable 1 Phase Surge Filter
SSF10i 10A Portable Series Filter, IEC 10A input/output
SSF15i 16A Portable Series Filter, IEC 15A input/output
Eaton SSFi Surge Filter
|
|
|
The SSFi
is a surge
power filter that provides
protection for sensitive
electronic equipment. Supplied
in a rugged steel case, it’s
available in 10A and 15A models. |
|
Eaton
MSFi – Enclosed Hardwired Single
& Three Phase Series Filter |
 |
MSFi 1 & 3 Phase Surge Filters
MSF401CCMi 40A Single Phase Series Surge Filter + Alarm
MSF631CCMi 63A Single Phase Series Surge Filter + Alarm
MSF403CCMi 40A Three Phase Series Surge Filter + Alarm
MSF633CCMi 63A Three Phase Series Surge Filter + Alarm
Eaton MSFi Single & Three Phase Filter
|
|
|
The MSFi is designed to
provide point-of-entry
protection against power surges
caused by external sources such
as lightning strikes and
substation switching as well as
providing a measure of
protection from surge events
generated on the secondary side
of the filter. An ideal device
for Category B locations.
The MSFi is a 3-stage
protection unit utilising
primary and secondary MOV
protection in conjunction with a
Low-Q LC filter. The unit
provides filtering of the line
harmonics, noise and RF
transmitters with a cut-off
frequency of <10kHz and a
minimum attenuation of 40dB
above 1MHz. Special care has
been taken in the design of the
filter to minimise ringing
caused by light loads, surge
diverter operation and inductive
load back-EMF. |
|
|
|
Eaton
MSDi - Three Phase Series
Diverters |
|
|
|
|
|
The MSDI surge diverter is
designed to provide
point-of-entry protection
against power surges caused by
external sources such as
lightning strikes & substation
switching. Common-mode
protection is available for
sites remote from the M.E.N.
point including industrial sites
& rooftops in multi-storey
buildings. An ideal device for
all Category locations.
Featurse :
-
- 3 Mode, 2 Stage Surge Diverter
-
- Surge suppression rating of 200kA
-
- Enclosed in IP24 cabinet
-
- LED Bargraph display on each phase
-
- Protection Fail Alarm Relay
-
- 5 Year Warranty
|
|
|
|
Eaton
SPFi Series - Three
phase Surge Power Filters |
|
|
|
Designed for three-phase point
of entry protection against
power surges caused by lightning
strikes and substation
switching.
The SPFi is designed to
provide point-of-entry and
sub-circuit protection against
power surges caused by external
sources such as lightning
strikes and substation switching
as well as providing a measure
of protection from surge events
generated on the secondary side
of the filter.
The SPFi is a 3-stage
protection system utilising
primary and secondary MOV
protection in conjunction with a
Low-Q LC filter. In addition,
the unit also provide filtering
of the line harmonics, noise and
RF transmitters with a cut-off
frequency of <10kHz and a
minimum attenuation of 40dB
above 1MHz.
All models in the SPFi
Series are fully enclosed in
wall mounting IP24 steel
enclosures. A graphical mimic
display provides at-a-glance
indication of the status of the
SPFi with indicators showing
correct functions in green and
faults in red. The alarm
function provides a summary
alarm output for protection
failure and power failure.
Featurse :
-
Surge suppression and filtering
in a single package.
-
Standard Current ratings from
100A to 315A.
-
Custom ratings to 2500A.
-
Provides extensive high
frequency and RF filtering.
-
Panel-mounted mimic display.
-
Remote alarm contact.
-
Enclosed in IP24 cabinet.
-
5 Year Warranty. |
|
|
|
Eaton
Surge
Suppression |
|
These three
Eclipse models have been
designed to meet any needs at
home or in the office, from the
simple Eclipse Personal to the
complete Eclipse ProTel that
boasts eight spaced receptacles,
fax/modem protection and a
unique flat rotating plug in a
compact package. The Eclipse is
the perfect choice for PCs,
VCRs, home theaters and other
sensitive equipment that
requires surge protection.
|
|
1-
Eclipse Personal |
For home appliances or home/office PC use.
* 6 standard grounded outlets.
* Master On/Off switch for convenient control of all plugs.
* "Load Protected" LED will shut off if the surge suppression circuitry is no longer functional.
* 15 Amp resettable circuit breaker provides overload protection.
|
|
2- Eclipse
Pro |
For
professional use
including networked PCs,
servers & business
equipment.
*
360
degree rotating plug.
*
5
standard grounded
outlets.
*
3 spaced
outlets for protection
of devices with
transformer blocks.
*
Master
On/Off switch for
convenient control of
all plugs.
*
"Load
Protected" LED indicates
normal operation of
surge suppressor.
*
"Ground
OK" LED identifies
correct AC ground for
proper operation of
surge suppressor.
*
Audible
alarm provides audible
indication of failed
surge suppressor.
|
|
3- Eclipse
ProTel |
Provides
a fax/modem protector in
addition to all the
features of Eclipse Pro.
*
Fax/Modem
protection. Phone line
is protected against
surges and spikes for
internet download and
faxes.
*
360
degree rotating plug.
*
5
standard grounded
outlets.
*
3 spaced
outlets for protection
of devices with
transformer blocks.
*
Master
On/Off switch for
convenient control of
all plugs.
*
"Load
Protected" LED indicates
normal operation of
surge suppressor.
*
"Ground
OK" LED identifies
correct AC ground for
proper operation of
surge suppressor.
*
Audible
alarm provides audible
indication of failed
surge suppressor.
Eaton
Eclipse Suppression |
|
|
|
Rackmount Filters |
|
|
|
|
|
The unique mounting system
allows mounting in many
different modes to suit crowded
racks. Even if no rack space
exists, the units may be mounted
externally on the front or rear
of the rack! For horizontal
mounting, the units requires a
single 1RU (44mm) rack space for
installation. For vertical
mounting, the units requires 3RU
(132mm) of rack space. The units
may also be flush mounted to
either side of a rack, cabinet
or trolley. |
|
|
|
Portable
Surge Filters |
 |
POD Filters
3S550AU – 550VA
3S700AU – 700VA
POD 10 6 Way Power Filter, phone, network, coax
POD+ 10A 8 Way Power Filter, phone, network, coax, TV
Eaton POD Filters
|
|
|
The POD protects your precious
Computer System, Home
Entertainment System and other
valuable electronic equipment
from surges, spikes and noise
cause by lightning and other
power disturbances. Its series
power filter provides superior
protection against surges and
spikes, with the additional
benefit of protecting against
line noise that may affect
sensitive equipment. With a
surge rating of 60kA, the POD
out-performs and out lasts many
other products that provide
shunt-only protection. |
|
|
|
Eaton
Protection Box |
|
Eaton
Protection
Box |
Eaton
Protection Box |
|
High
performance
/ low cost
protection
for
expensive or
delicate
equipment
The
Protection
Box
multi-way
block with
surge
protection
is a simple,
low cost
solution for
protecting
delicate
equipment
such as:
-
Computers,
peripherals
and
multimedia
-
TV,
Video
and Hi-Fi
equipment
-
Broadband
modems
(Internet
and TV)
-
IP
telephony
-
Household
goods,
etc.
|
|

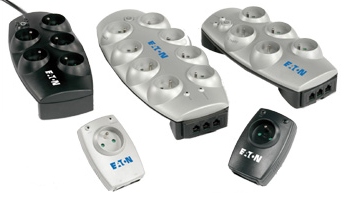

Eaton Protection
Box PowerLine |
Eaton
Protection Box PowerLine |
