General |
|
Configuration |

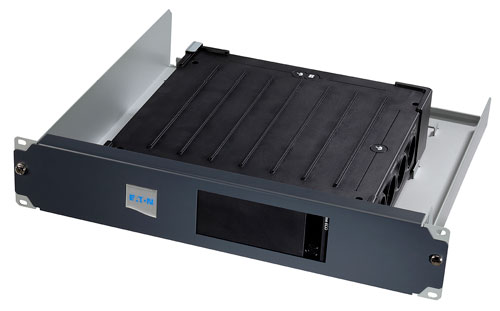

Rack/Tower |
|
Part
Number |

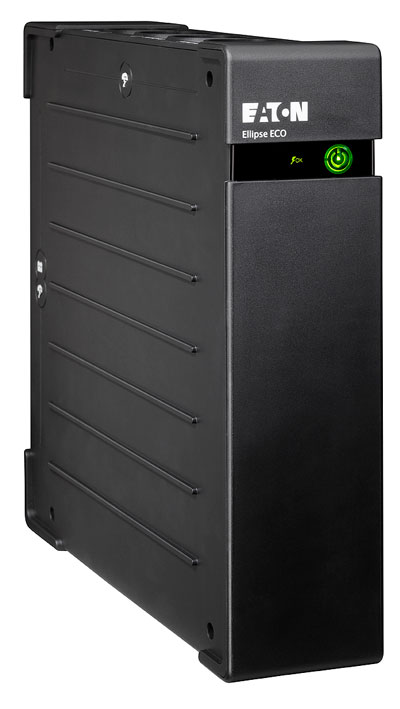

EL500DIN |
|
Color |
Black |
|
Rating (VA/Watts) |
500/300 |
|
Dimensions
(H x W x
D, mm) |
263 x 81
x 235 |
|
Weight
(kg) |
2.9 |
|
Warranty |
2 years
warranty,
Standard
product
exchange,
including
the
battery
;
warranty
for the
connected
computing
equipment
for an
unlimited
amount (EU
countries) |
| |
|
Electrical
Input |
|
Connection |
(1) IEC-320-C14
|
|
Input
Voltage
Range |
184 V -
264 V
(adjustable
to 161 V
- 284 V) |
|
Nominal
Voltage |
230 V |
|
Operating
Frequency |
50-60 Hz
autoselect |
| |
|
Electrical
Output |
|
Voltages |
230 V
(adjustable
to 220
V, 230
V, 240
V) |
|

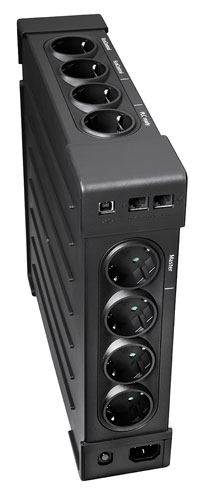

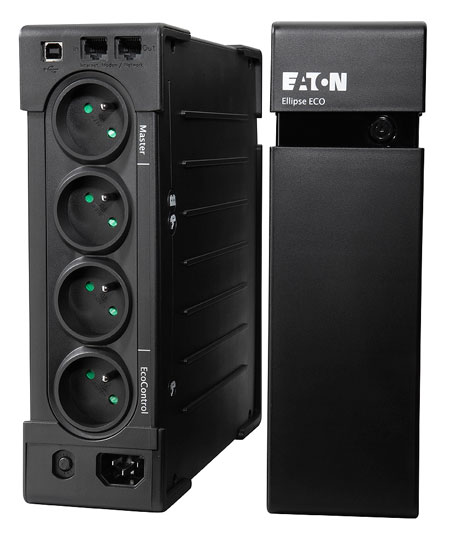

Output
Receptacles |
(3) Schuko
|
(1)
Schuko
surge
only
|
| |
|

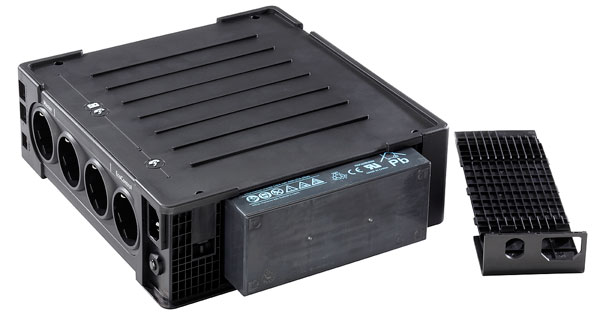

Battery |
|
Battery
Type |
Replaceable
sealed
lead
acid |
|
Battery
Replacement
Indicators |
LED +
audible
alarm |
|
Battery
Test |
Yes
(Automatic) |
|
Cold
start
(No
mains
power) |
Yes |
|
Deep
Discharge
Protection |
4 hours |
| |
|
Environmental
&
Standards |
|
Surge
Protection |
Surge
protection
device
compliant
with IEC
61643-1 |
|
Performance
- Safety
- EMC |
IEC
62040-1,
IEC
60950-1,
IEC
62040-2,
CB
Report,
CE mark |
|
Data
Line
Protection |
Tel/Fax/Modem/Internet
and
Ethernet |
