General |
|
Topology |
Online,
double-conversion |
|
Configuration |

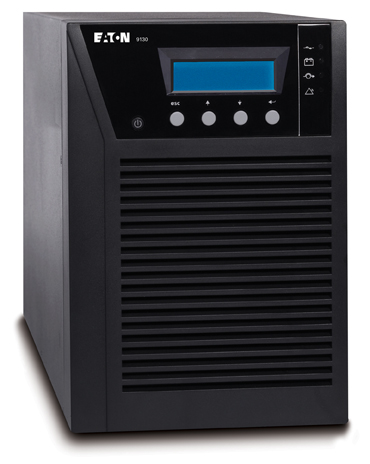

Tower |
|
Part
Number |
103006433-6591 |
|
Color |
Black |
|
Rating (VA/Watts) |
700/630 |
|
Diagnostics |
Full
system
self-test |
|
Efficiency |
94% in
high-efficiency
mode;
90% in
online
mode |
|
UPS
Bypass |
Automatic
bypass |
|
Dimensions
(H x W x
D, mm) |
230 x
160 x350 |
|
Weight
(kg) |
12.2 |
|
Remote
Emergency
Power
off (REPO) |
Emergency
shutdown
control
through
the REPO
port |
| |
|
Electrical
Input |
|
Connection |
(1) IEC-320-C14
|
|
Input
Cord |
Schuko
10A to
IEC
320-10A |
|
Input
Voltage
Range |
180-276
Vac
(with
load PF
of 0.7) |
|
Nominal
Voltage |
220–240V |
|
Frequency |
50/60 Hz |
|
Frequency
Range |
45–65 Hz |
|
Nominal
Current |
3.0A
@230V |
|
Breaker
Ratings |
10A |
| |
|
Electrical
Output |
|
Output
Receptacles |
(6) IEC-320-C13
|
|
On
Utility
Voltage
Regulation |
±3% of
nominal |
|
On
Battery
Voltage
Regulation |
±3% of
nominal |
|
Frequency
Regulation |
±3% Hz
online |
|
Load
Crest
Factor |
3 to 1 |
| |
|
Battery |
|
Battery
Description |
VRLA
12V/9 Ah
(internal
and
External) |
|
Battery
Type |
Replaceable
maintenance
free
sealed
lead
acid |
|
Battery
Replacement |
Hot-swappable
internal
batteries |
|
Start On
Battery |
Allows
start of
UPS
without
utility
input |
| |
|
Communications |
|
User
Interface |
Graphical
LCD with
blue
backlight
and text
in
English,
French,
German,
Russian
and
Spanish |
|
LEDs |
Four
status-indicating
LEDs |
|
Communication
Ports |
RS-232
and USB
HID port
as
standard |
|
Relay
Output |
Common
alarm
standard |
|
Communications
Card
Slots |
Optional
SNMP/Web
card for
monitoring
in
SNMP-based
networks,
monitoring
through
Web
browser
interface.
Relay
card for
integration
to
industrial
environment
and BMS,
remote
shutdown
for IBM
AS/400
systems |
| |
|
Environmental
&
Standards |
|
Heat
Dissipation
(BTU) |
Line:
350,
Bat: 554 |
|
Audible
Noise |
<44 dB |
|
Operating
Temperature |
0˚C to
+40˚C |
|
Performance
- Safety
- EMC |
CE (per
IEC/EN62040-2:
Emissions,
Category
C1;
Immunity,
Category
C2), GS |
|
Storage
Temperature |
-20˚C to
+40˚C
with
batteries
and
-25˚C to
+55˚C
without
batteries |
|
Relative
Humidity |
5–90%
non-condensing |
