General |
|
Topology |
Line
interactive |
|
Configuration |

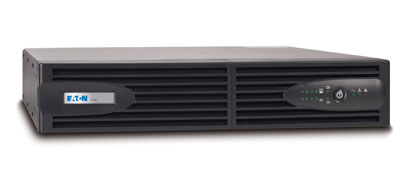

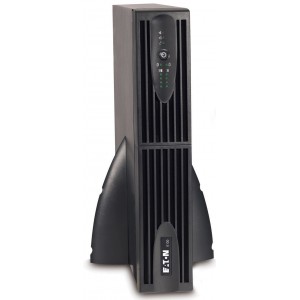

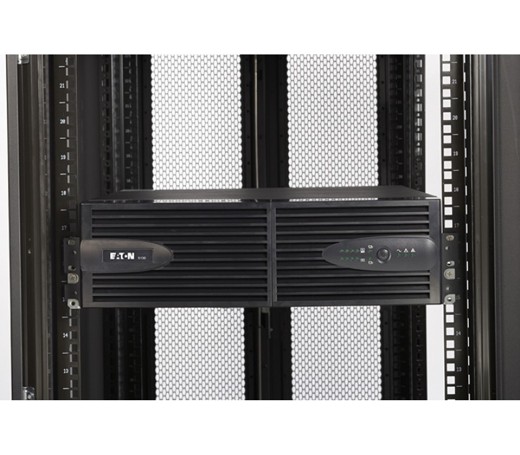

Rack/Tower |
|
Part
Number |
103006590-6591 |
|
Color |
Black |
|
Rating (VA/Watts) |
1250/1150 |
|
Diagnostics |
Full
system
self-test
at power
up |
|
Efficiency |
Normal
or line
mode:
>94% |
|
Dimensions
(H x W x
D, mm) |
86 x 441
x 509 |
|
Weight
(kg) |
24.3 |
|
Rail Kit
Included |
Rail
kit/tower
stand
included
with all
units |
|
Remote
Emergency
Power
off (REPO) |
Rear
deck
emergency
stop
connector
(for
remote
on/off
and
power
off) |
| |
|
Electrical
Input |
|
Connection |
(1) IEC-320-C14
|
|
Nominal
Voltage |
230 VAC |
|
Voltage
Range |
160-294V
|
|
Frequency |
50/60 Hz |
|
Frequency
Range |
47-70 Hz
for 50
Hz
operation
56.5-70
Hz for
60 Hz
operation |
|
Breaker
Ratings |
10A |
| |
|
Electrical
Output |
|
Output
Receptacles |
(8) IEC-320-C13
|
|
Over
Current
Protection |
Electronic
current
limit |
|
On
Utility
Voltage
Regulation |
184-265
Vac |
|
On
Battery
Voltage
Regulation |
-10%,
+6% of
nominal |
|
Transfer
Time |
1–4 ms
typical |
|
Load
Crest
Factor |
3:1 |
|
Load
Segments |
Two
groups
of two
individually
controlled
output
receptacles |
| |
|
Battery |
|
Battery
Replacement |
Hot-swappable
internal
batteries |
|
Start On
Battery |
Allows
start of
UPS
without
utility
input |
| |
|
Communications |
|
LEDs |
13
status-indicating
LEDs |
|
Communication
Ports |
Serial
Port
RS-232
(RJ45)
ports;
USB Port
As
standard
(HID).
RS-232
and USB
6-ft
communication
cables
included |
|
Communications
Card
Slots |
Optional
ConnectUPS-MS
Network
Management
Card,
Relay/Serial
Management
Card -MS |
|
Power
Management
Software |
Eaton
Software
Suite
CD-ROM
(bundled
with
UPS) |
| |
|
Environmental
&
Standards |
|
Heat
Dissipation
(BTU) |
Line:
250,
Bat:
1682 |
|
Audible
Noise |
Max 45
dBA |
|
Operating
Temperature |
0˚C to
+40˚C |
|
Safety
markings |
CE;
C-Tick;
TUVus |
|
EMC
Markings |
IEC/EN
62040-2
EN
50091-2
class B |
|
Approvals |
IEC/EN
62040-1-1,
UL 1778 |
|
Storage
Temperature |
-15˚C to
+50˚C |
|
Relative
Humidity |
20–95%
non-condensing |
