Maintenance Bypass Switch (MBS)

The purpose of a Maintenance Bypass Switch (MBS) is to isolate all AC input and output supplies from a UPS to allow maintenance technicians to safely work on the equipment, while the critical load equipment continues to be powered from the input supply, normally raw mains, without interruption.
DC supplies are not disconnected by the MBS as they are fitted with their own specialised isolators.
All MBS feature an electrical/mechanical interlock to prevent UPS damage due to improper switch operation.

External MBS allows users to isolate power from UPS cabinet, including incoming and outgoing connections. It also permits the user to replace the UPS without shutting down the critical load. An external Bypass Switch may also be required due to OH&S requirements.

Maintenance Bypass Switch Selection Guide

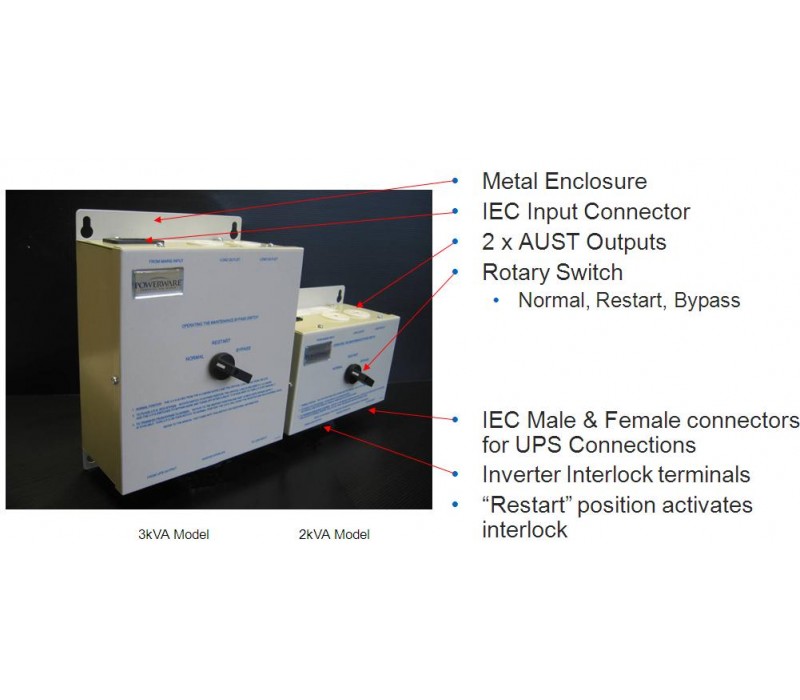

Brand: Eaton

Part No: MBS2000SW1

Description: Eaton Single Phase 700-2000VA Softwired interlocked external bypass

Suitability: Eaton 9130 Tower models up to 2kVA

Dimensions (W x D x H): 210 x 100 x 130

Weight: 4kg

Eaton 9390IT Brochure

View more photos

Brand: Eaton
Part No: MBS3000SW1

Description: Eaton Single Phase 3000VA Softwired interlocked external bypass

Suitability: Eaton 9130 Tower models 3kVA

Dimensions (W x D x H): 210 x 100 x 225

Weight: 5kg

Eaton 9390IT Brochure

View more photos

Brand: Eaton
Part No: 6000MBS1

Description: 1-6kVA Hardwired interlocked external bypass input (max 6mm2 cable)

Dimensions (W x D x H): 190 x 130 x 190

Weight: 10 kg

Material: polycarbonate

Eaton 9390IT Brochure

View more photos

Brand: Eaton

Part No: 6000MBS2

Description: 6kVA Hardwired interlocked external bypass input (max 6mm2 cable)

Dimensions (W x D x H): 190 x 130 x 190

Weight: 10 kg

Material: polycarbonate

Eaton 9390IT Brochure

View more photos

Enclosure Power Dstribution Units (ePDU)

Effectively distribute power to 4 to 45 receptacles in high-density rack environments. The plug-and-play architecture organizes power distribution, simplifies cable management, and lets you add and change IT equipment without an electrician. With this tiered product family, you can select the desired combination of features and power rating for each application .
