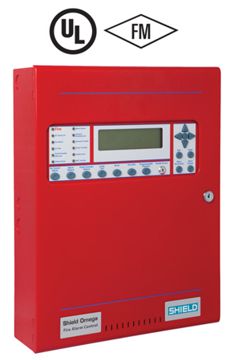

- SHIELD Omega is a versatile range of open protocol fire alarm
control panels compatible with existing
SHIELD Omega fire alarm panel
technology.

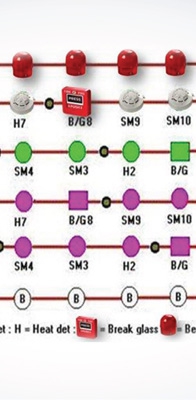

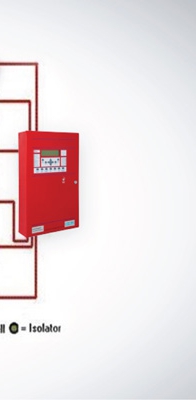

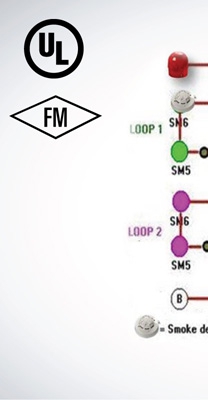

- Available with one or two detection loops for a total of 250 primary
points or 400 points using subpoints. SHIELD Omega uses leading edge
microprocessor based electronics to provide a flexible control system with
high reliability and integrity.
- Suitable for all small to medium sized fire detection systems, SHIELD
Omega control panels can be expanded and networked to become part of much
larger systems if the need arises, therefore providing a future proof
solution for any installation.
- With its large graphical display and ergonomic button and indicator
layout, the SHIELD Omega control panel is simple and straight forward to
understand for installers, commissioning engineers and end users alike.
Features
One full SLC circuit
expandable to two
3 programmable
relays
5.25A power
supply
Large graphic
display
Real time clock
Compatible with
graphics annunciator
Powerful, network wide
cause and effects (500 total). Fully user programmable by point or zone
Can be networked with
additional panel and / or SHIELD Omega panels
Compatible with Omega
R Annunciator
Programmable through a
PC connection to the panel
Same look and feel as
SHIELD Omega range
Stores 1000 last
events in history log
Model ranges include
with or without a Dual-Line internal DACT
Compact, stylish
enclosure
Available in Red or
Gray
2 Programmable NAC
circuits with internal synchronization support
|
