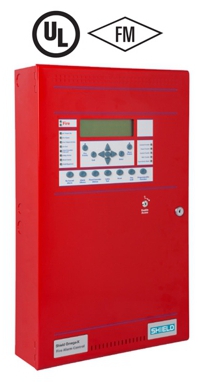

- The SA-P20R and SA-P4LR analog
addressable FACP supports 2 or 4 SLC loops for a total of 500 primary points
or 800 points using subpoints. SLC loop communications uses standard twisted
pair cabling, shielded cable is not necessary.
- The panel may be configured with various communication cards;
Communications options support central station monitoring, Virtual Panel,
and networking.
- The Panel can be configured as a stand alone panel with just a few
devices for a small building, it can also operate as the building system and
can be part of a network with a total of 64 nodes serving a multiple
building campus or a very large facility.
- Auto Learn capability provides a convenient method to troubleshoot new
installations before final programming is loaded.
Features
UL 864 9th Edition listed
Multi-Loop 2 Analog Addressable
Loops Field upgradable to 4
126 primary points per loop
Powerful, network wide cause and effects
(500 total). Fully user programmable by point or zone
800 points per panel when using devices
with sub-points
Up to 10,000 ft. wiring length on SLC
loop
64 Panels on a network
Programmable through a PC connection to
the panel, or through keypad
Programmable relays – 5
Supervised Powered Outputs – 3
Programmable notification appliance
circuits:4
Power per NAC: 1.6 Amps Max
Programmable outputs on SLC loop
Programmable Function button on front
display
Fire Drill button on front display
Day and night sensitivity settings (user
programmable)
Power Supply: 5.25 Amp, regulated &
integrated
LCD Display: 8×40
Zonal Mode: Annunciation by zone w/o
individual relationships
Panel Ring Modes: Common, Zonal, and
Stage 2
NAC Outputs programmable as Continuous,
March, Temporal
Program cause and effects AND, OR, or any
two (Cross Zone)
Battery size: Up to 17 Ah in standard
enclosure; up to 52 Ah with external cabinet
Access levels: 3
Access key switch: Yes
Recognized for use in High Rise
One-man walk test – Fire Test Mode
Available in Red
|
