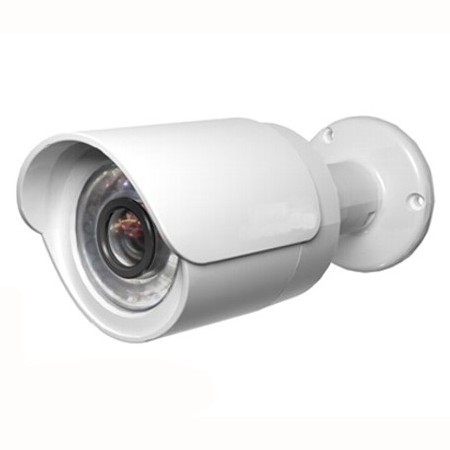

A Full HD IP Bullet Camera that offers 4x the resolution of standard CCTV and IP CCTV cameras, perfect for use inside or outside any premises requiring a very high resolution IR night vision capable camera.
Produces Real Time images at 1.3 MEGAPIXEL (1280x960), 720P (1280x720) and D1 (704x576) resolution.
The camera is very versatile thanks to its modern bullet style design. It can be wall or ceiling mounted and suitable for outdoor use.
Supplied with powerful multi camera recording, viewing and management software for Windows PC's.
View remotely from a PC, Mac or Mobile phone.
| Brand |
Xvision SE |
| Model Number |
X720B |
|
Type |
| Style |
High Definition Bullet
|
| Weather Resistant |
Yes (IP66 rated) |
| Vandal Resistant |
No |
| Motorised Panning |
No |
| Motorised Tilting |
No |
| Digital Zoom |
No |
| Audio: |
No |
| Mounting Type: |
Wall, Ceiling |
| Product Dimensions WxHxD (mm): |
64x64x145 (without bracket) |
| Product Weight |
0.35kg |
| Shipping Dimensions WxHxD (mm) |
175x95x90 |
| Shipping Weight |
0.46kg |
| Warranty |
1 Year Warranty (extendable to 3 years) |
| Camera |
| Image Sensor Type |
1/3" 1.3 Megapixel Aptina CMOS |
| Image Sensor Resolution |
1.3 Mega Pixel (720P) |
| Minimum Illumination |
0.1 Lux (Colour), 0.05 (B/W), 0 Lux (IR on) |
| Night Vision |
10m |
| Other Features |
Automatic White Balance
Automatic Gain Control
Automatic Electronic Iris
DNR (Digital Noise Reduction) |
| Lens |
3.6mm |
| Viewing Angle |
78° |
| Performance |
| Video Compression |
H264, MJPEG |
| Video Streams |
11 Independent Streams + 2 Region Of Interest Streams |
| Stream Types |
HTTP, RTSP, UDP |
| Video Resolution & Frame Rates |
1.3 Megapixel (1280x960) at up to 15 fps
720P (1280x720) at up to 25 fps
D1 (704x576) at up to 25 fps |
| Networking |
| Network Connection |
RJ45 Socket (10/100 BASE-T) |
| Wi-Fi Support |
N/A |
| Network Protocols Supported |
HTTP, TCP/IP, IPv4/IPv6 ARP, IGMP, ICMP, RTSP, RTP,
UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour, SNMP, Onvif |
| Remote Access |
| Browser Support |
Chrome, Internet Explorer, Safari |
| Mobile Phone Support |
Android, Blackberry, iPhone, Nokia (Symbian), Windows
Mobile |
| User Authentication |
User Name & Password, IP Filtering |
| Simultaneous Viewers |
Using Unicast: 20
Using Multicast: Unlimited |
| Power
Requirements |
| Power over Ethernet |
Yes |
| Operating Voltage |
12V DC 330mA |
| Power Consumption |
<4W |
| Other
Features |
| Easy Fit |
Optional Xvision Ethernet over Mains adaptor required |
| Motion Detection |
Yes |
| Presets |
No |
| Guard Tours |
No |
| Email Alerts |
Yes |
| On Board Recording |
No |
| Alarms |
No |
| Multi Camera Software |
Yes |
|
|
| |
 |
|
