● Recording Rate: 720P: 600fps Real Time (30fps per camera) 1080P: 480fps Real Time (30fps per camera).
● Remote Access via Smartphone, Tablet, PC and Mac.
● Email Alerts - CMS software for multiple NVRs/IP cameras.

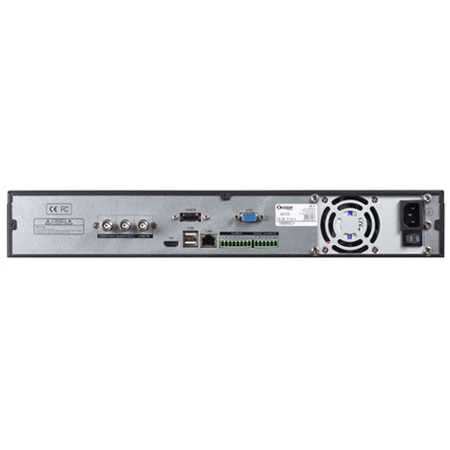

● VGA and HDMI monitor outputs.

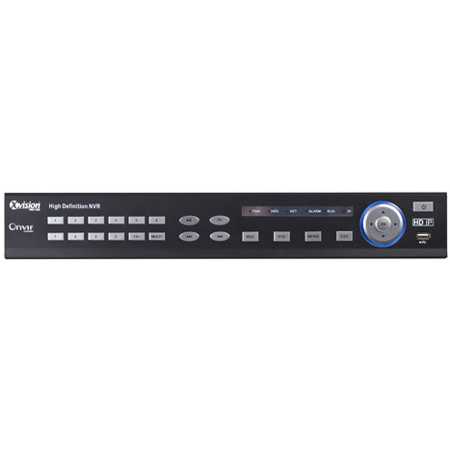

● Front Panel or USB Mouse Control (not included).
● OnVIF compatible.
● 1GB LAN connection.
● Audio Input/Output for 2 way audio between compatible cameras and NVR.
● 4 Alarm Inputs.
● 2 Alarm Outputs.
● Desk or Rack Mount.
● Accepts 4 Hard Drives of up to 4TB (not included).
● ESATA port for external hard drive expansion.
● Estimated recording space required per camera per day: 130GB at 1080P & 30fps, 43GB at 1080P & 10fps, 58GB at 720P & 30fps, 16GB at 720P & 10fps .

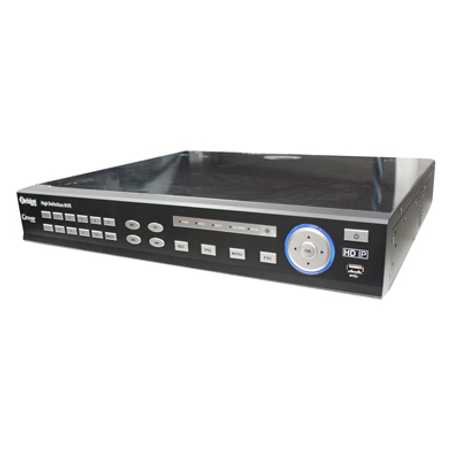

| Brand: |
Xvision Pro HD |
| Model Number: |
XRN2016 |
| Details |
| Warranty: |
1 Year Warranty (extendable to 3 years) |
| Approvals: |
CE, RoHS |
| System |
| Main Processor: |
Hisilicon 3521 |
| Operating System: |
Embedded LINUX |
| System Resrouces: |
Pentaplex function: live, recording, playback, backup &
remote access |
| Control Mode: |
USB Mouse, Remote Control |
| Video |
| IP Camera Support: |
20 channel @ 720P, 16 Channel @ 1080P, 4 Channel @ 3
Mega Pixel |
| IP Camera Supported List: |
i8/i9 private protocol IP camera;Hikivision, Dahua,
Panasonic etc., ONVIF |
| Output: |
1 HDMI (Video and audio), 1 VGA |
| Display |
| Display Split: |
1/4/9/16/25 |
| Resolution: |
1920x1080, 1280x1024, 1280x720, 1024x728 |
| Tour Display: |
Support |
| Privacy Masking: |
Yes |
| OSD: |
Camera title, time, video loss, camera lock, motion
detection, recording |
| Recording |
| Compression: |
H.264/ MJPEG4 |
| Maximum Hard Drive Supported: |
16TB (No Hard Drive Supplied) |
| Recording Resolution: |
1080P (1920x1080) /
720P (1280x720) /
|
|
| Recording Bit Rate: |
Up to 8 Mbps |
| Recording Quality: |
CBR, VBR (1~6 level) |
| Recording Mode: |
Manual, Alarm, Motion Detection, Regular |
| Recording Priority: |
Manual > Alarm > Motion Detection > Regular |
| Recording Interval: |
Continuous |
| Video detection & alarm |
| Trigger Events: |
Audio Warning, Alarm on Monitor, Email, Linkage Upload
to Centre, Alarm Output, Recording |
| Motion Detection: |
Zones 396(22x18), Sensitivity Adjustment |
| Video Loss and Camera Blank: |
Support |
| Alarm Input: |
4 |
| Relay Output: |
2 |
| Playback |
|
| Playback Channel: |
4 Channel 720P, 4 Channel 1080P, 4 Channel 3 Mega Pixel |
| Search Mode: |
Time/Date, Schedule, Event, Channel |
| Playback Function: |
Support 15x Digital Zoom, Snapshot, Roller Amplification |
| Backup Mode: |
Flash drive, Network |
| Network |
| Ethernet: |
RJ45 port (10/100M/1000M) |
| Network Function: |
TCP/IP,ONVIF,HTTP,DDNS
,SMTP(SSL),DHCP,PPPOE,UPNP,NTP,P2P |
| Maximum Remote Users: |
10 |
| Remote Operation: |
Support WEB, Mobile Viwer, Client, CMS |
| Power Requirements |
| Operating Voltage: |
12V DC |
| Power Consumption: |
30W (without HDD) |
| Physical Attributes |
| Product Dimensions: |
357x68x440 |
| Product Weight (kg): |
6.0 |
| Shipping Dimensions: |
450x170x510 |
| Shipping Weight: |
7.5 |
|
|
|
