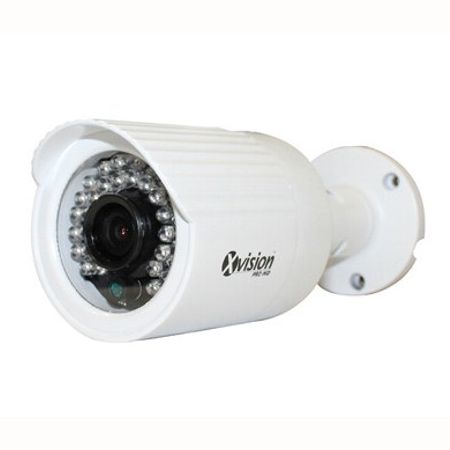

The XC1080BP offers a 2 mega pixel Full HD 1080P resolution in a resilient bullet enclosure.
The camera is suitable for indoor or outdoor use and features a high quality 3.6mm lens for 78° viewing angle and high power IR LEDs for up to 30m IR night vision.
It features a powerful Xvision X3K-IP DSP which process the image in real time, in addition to this the camera features Digital Noise Reduction (DNR) which remove pixilation and noise from the camera picture in low light conditions, the results in a clearer image and reduction in recording space when used with an NVR and Wide Dynamic Range (WDR) to produce an even image that does not suffer from bright or dark spots
● Sony 2.43MP Sensor
● Maximum resolution of 1920x1080 at 30fps
● XVision 3.7mm HD Megapixel lens for 78° viewing angle
● Xvision X3K-IP DSP - 0.0003 lux low light sensitivity - 20/30m Smart IR Night Vision
● H264 - Dual Stream - OnVIR
● Remote access via PC, Mac, Tablet or Smartphone
● Record & View 36 cameras using free Windows CMS software or to an NVR
● Advanced Wide Dynamic range - High Speed Digital Slow Shutter - 3D Digital Noise Reduction
● Programmable High Light Suppression
● PoE compatible
● Cable Managed Bracket - Designed for Wall or Ceiling mounting - Weatherproof to IP66
|
Brand |
Xvision Pro HD |
|
Model
Number |
XC1080BP |
|
Type |
|
Style |
High Definition Bullet Camera |
|
Weather
Resistant |
Yes (IP66 rated) |
|
Vandal
Resistant |
No |
|
Motorised
Panning |
No |
|
Motorised
Tilting |
No |
|
Digital
Zoom |
No |
|
Audio: |
No |
|
Mounting
Type: |
Wall or Ceiling |
|
Product
Dimensions WxHxD (mm): |
66x66x167 |
|
Product
Weight |
0.40kg |
|
Shipping
Dimensions WxHxD (mm) |
182x122x108 |
|
Shipping
Weight |
0.45kg |
|
Warranty |
1 Year Warranty (extendable to 3 years) |
|
Camera |
|
Sensor Type |
1/2.9" Sony CMOS |
|
Sensor Resolution |
2 Mega Pixel (1080P) |
|
Minimum
Illumination |
0.0003 Lux (0 Lux IR On) |
|
Night
Vision |
30m IR Night Vision |
|
Other
Features |
Automatic White Balance
Automatic Gain Control
Automatic Electronic Iris
DNR (Digital Noise Reduction)
|
|
Lens |
3.6mm |
|
Viewing
Angle |
78° |
|
Performance |
|
Video
Compression |
H264 |
|
Video
Streams |
1024Kbps-6144Kbps |
|
Stream
Types |
Complex stream/Video stream |
|
Video
Resolution & Frame Rates |
1280X720&25fps |
|
Networking |
|
Network
Connection |
RJ45 Socket (10/100 BASE-T) |
|
Wi-Fi
Support |
N/A |
|
Network
Protocols Supported |
TCP/IP,UDP,HTTP,DHCP,RTP/RTSP,
DNS,DDNS,NTP,PPPOE,UPNP,SMTP |
|
Remote Access |
|
Browser
Support |
Internet Explorer, |
|
Mobile
Phone Support |
Android, iPhone |
|
User
Authentication |
Yes |
|
Simultaneous Viewers |
10 |
|
Power Requirements |
|
Power over
Ethernet |
Yes |
|
Operating
Voltage |
12V DC |
|
Power
Consumption |
<5W |
|
Other Features |
|
Easy Fit |
Yes (Optional Ethernet Over Mains Adapter) |
|
Motion
Detection |
No |
|
Presets |
No |
|
Guard
Tours |
No |
|
Email
Alerts |
Yes |
|
On Board
Recording |
No |
|
Alarms |
No |
|
Multi
Camera Software |
Yes |
|
|
| |
 |
|
XRN0808E:
Plug &
Play HD IP NVR for up to
8 (720P or 1080P)
Cameras . |
 |
|
XRN1609:
Professional HD IP NVR
for up to 16 (720P)
Cameras or 9 (720P or
1080P) Cameras. |
 |
|
XRN2016:
Professional HD IP NVR
for up to 20 (720P)
Cameras or 16 (720P or
1080P) Cameras |
 |
|
XRN3625:
Professional HD IP NVR
for up to 36 (720P)
Cameras or 25 (720P or
1080P) Cameras |
|
|
