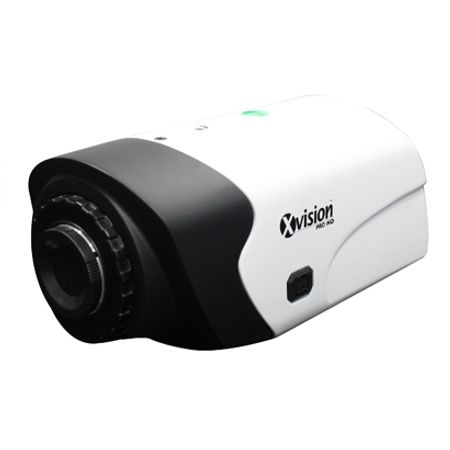

A Classic design with advanced features at a great price
This camera offers 1080P resolution in a traditional box/body camera giving you ultimate flexibility on installation.
It features a powerful Xvision X3K DSP, which processes the image in real time and improves it by using Digital Noise Reduction and Wide Dynamic Range to produce an even image, that does not suffer from bright or dark spots.
We offer a wide range of accessories including lenses and mounting brackets so you can design the perfect HD Camera!
●Sony 2.43MP Sensor
●Maximum resolution of 1920x1080 at 30fps
●Compatible with Fixed, Manual and Auto Iris C/CS mount lenses
●Xvision X3K-IP DSP - 0.0003 lux low light sensitivity - Day/Night (IR sensitive)
●H264 - Dual Stream - OnVIF
●Remote access via PC, Mac, Tablet or Smartphone
●Record & View 36 cameras using free Windows CMS software or to an NVR
●Advanced Wide Dynamic range - High speed Digital Slow Shutter - 3D Digital Noise Reduction
●Programmable High Light Suppression
●PoE compatible
●Can be Wall or Ceiling mounted using optional bracket
●Can be used outside when used with an optional Weatherproof housing.
|
Brand |
Xvision Pro HD |
|
Model
Number |
XC1080TP |
|
Type |
|
Style |
High Definition Box Camera |
|
Weather
Resistant |
Yes (Optional Housing Required) |
|
Vandal
Resistant |
No |
|
Motorised
Panning |
No |
|
Motorised
Tilting |
No |
|
Digital
Zoom |
No |
|
Audio: |
Yes |
|
Mounting
Type: |
Wall or Ceiling (Optional Bracket Required) |
|
Product
Dimensions WxHxD (mm): |
182x122x108 |
|
Product
Weight |
0.50kg |
|
Shipping
Dimensions WxHxD (mm) |
165x165x125 |
|
Shipping
Weight |
0.55kg |
|
Warranty |
1 Year Warranty (extendable to 3 years) |
|
Camera |
|
Sensor Type |
1/2.9" Sony CMOS |
|
Sensor Resolution |
2 Mega Pixel 1080P |
|
Minimum
Illumination |
0.0003 Lux |
|
Night
Vision |
Yes (Optional IR Lamp Required) |
|
Other
Features |
Automatic White Balance
Automatic Gain Control
Automatic Electronic Iris
DNR (Digital Noise Reduction)
WDR (Wide Dynamic Range) |
|
Lens |
Not Supplied |
|
Viewing
Angle |
N/A |
|
Performance |
|
Video
Compression |
H264 |
|
Video
Streams |
16Kbps-8000Kbps |
|
Stream
Types |
Complex stream/Video stream |
|
Video
Resolution & Frame Rates |
1920x1080 25fps |
|
Networking |
|
Network
Connection |
RJ45 Socket (10/100 BASE-T) |
|
Wi-Fi
Support |
N/A |
|
Network
Protocols Supported |
TCP/IP,UDP,HTTP,DHCP,RTP/RTSP,
DNS,DDNS,NTP,PPPOE,UPNP,SMTP |
|
Remote
Access |
|
Browser
Support |
Internet Explorer, |
|
Mobile
Phone Support |
Android, iPhone |
|
User
Authentication |
Yes |
|
Simultaneous Viewers |
10 |
|
Power
Requirements |
|
Power over
Ethernet |
Yes |
|
Operating
Voltage |
12V DC |
|
Power
Consumption |
<6W |
|
Other
Features |
|
Easy Fit |
Yes (Optional Ethernet Over Mains Adapter) |
|
Motion
Detection |
Yes |
|
Presets |
No |
|
Guard
Tours |
No |
|
Email
Alerts |
Yes |
|
On Board
Recording |
No |
|
Alarms |
Yes |
|
Multi
Camera Software |
Yes |
|
|
| |
 |
|
XRN0808E:
Plug &
Play HD IP NVR for up to
8 (720P or 1080P)
Cameras . |
 |
|
XRN1609:
Professional HD IP NVR
for up to 16 (720P)
Cameras or 9 (720P or
1080P) Cameras. |
 |
|
XRN2016:
Professional HD IP NVR
for up to 20 (720P)
Cameras or 16 (720P or
1080P) Cameras |
 |
|
XRN3625:
Professional HD IP NVR
for up to 36 (720P)
Cameras or 25 (720P or
1080P) Cameras |
|
|
