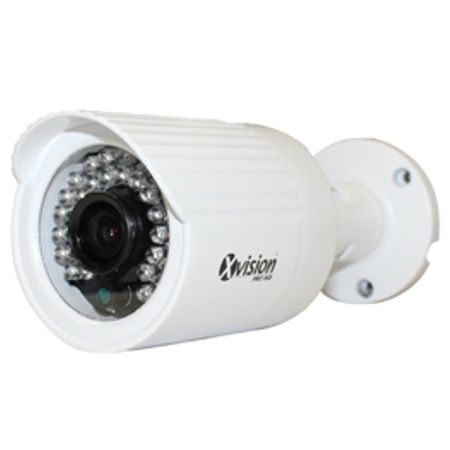

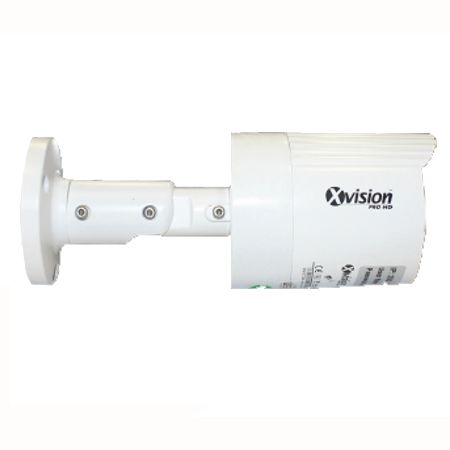

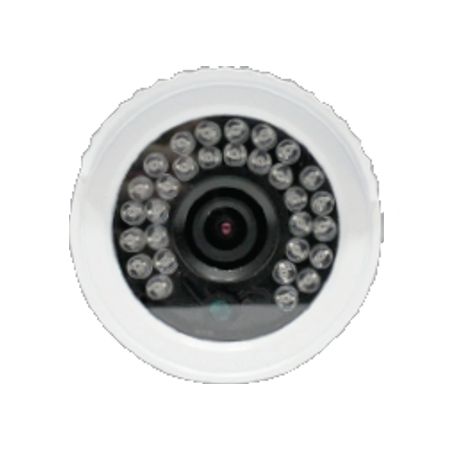

The XC720B offers a 1.3 mega pixel 720P resolution in a resilient bullet enclosure. The camera is suitable for indoor or outdoor use and features a high quality 3.6mm lens for 60° viewing angle and high power IR LEDs for up to 30m IR night vision.
It features a powerful Xvision X1K-IP DSP which process the image in real time, in addition to this the camera features Digital Noise Reduction (DNR) which remove pixilation and noise from the camera picture in low light conditions, the results in a clearer image and reduction in recording space when used with an NVR
Omnivision 1.3MP Sensor
Maximum resolution of 1280x720 at 30fps
Xvision 3.6mm HD Megapixel lens for 60° viewing angle
Xvision X1K-IP DSP
0.001 lux low light sensitivity
20/30m Smart IR Night Vision
H264 - Dual Stream - OnVIF
Remote access via PC, Mac, Tablet or Smartphone
Record & View 36 cameras using free windows CMS software or to an NVR
Cable Managed Bracket - Designed for Wall or Ceiling mounting - Weatherproof to IP66
| Brand |
Xvision Pro HD |
| Model Number |
XC720B |
|
Type |
| Style |
High Definition Bullet
|
| Weather Resistant |
Yes (IP66 rated) |
| Vandal Resistant |
No |
| Motorised Panning |
No |
| Motorised Tilting |
No |
| Digital Zoom |
No |
| Audio: |
No |
| Mounting Type: |
Wall, Ceiling |
| Product Dimensions WxHxD (mm): |
66x66x167 |
| Product Weight |
0.4kg |
| Shipping Dimensions WxHxD (mm) |
182x122x108 |
| Shipping Weight |
0.45kg |
| Warranty |
1 Year Warranty (extendable to 3 years) |
| Camera |
| Image Sensor Type |
1/4" OV CMOS |
| Image Sensor Resolution |
1.3 Mega Pixel (720P) |
| Minimum Illumination |
0.001 Lux (0 Lux IR On) |
| Night Vision |
30m IR Night Vision |
| Other Features |
Automatic White Balance
Automatic Gain Control
Automatic Electronic Iris
DNR (Digital Noise Reduction) |
| Lens |
3.6mm |
| Viewing Angle |
60° |
| Performance |
| Video Compression |
H264 |
| Video Streams |
1024Kbps-6144Kbps |
| Stream Types |
Complex stream/Video
stream |
| Video Resolution & Frame Rates |
1280x720&25fps |
| Networking |
| Network Connection |
RJ45 Socket (10/100 BASE-T) |
| Wi-Fi Support |
N/A |
| Network Protocols Supported |
TCP/IP, UDP,HTTP,DHCP,RTSP, RTP,
DNS,DDNS,NTP,PPPOE,UPNP,SMTP, |
| Remote Access |
| Browser Support |
Internet Explorer |
| Mobile Phone Support |
Android, iPhone |
| User Authentication |
Yes |
| Simultaneous Viewers |
10 |
| Power
Requirements |
| Power over Ethernet |
No |
| Operating Voltage |
12V DC 330mA |
| Power Consumption |
<5W |
| Other
Features |
| Easy Fit |
N/A |
| Motion Detection |
No |
| Presets |
No |
| Guard Tours |
No |
| Email Alerts |
Yes |
| On Board Recording |
No |
| Alarms |
No |
| Multi Camera Software |
Yes |
|
|
| |
 |
|
XRN0808E:b>
Plug &
Play HD IP NVR for up to
8 (720P or 1080P)
Cameras . |
 |
|
XRN1609:
Professional HD IP NVR
for up to 16 (720P)
Cameras or 9 (720P or
1080P) Cameras. |
 |
|
XRN2016:
Professional HD IP NVR
for up to 20 (720P)
Cameras or 16 (720P or
1080P) Cameras |
 |
|
XRN3625:
Professional HD IP NVR
for up to 36 (720P)
Cameras or 25 (720P or
1080P) Cameras |
|
|
