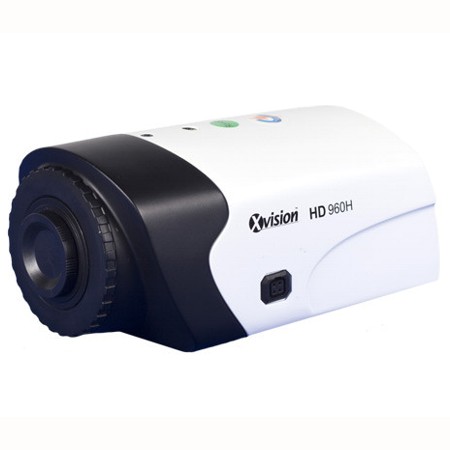

Professional HD 960H Body camera suitable for almost any application - and because its Day/Night it can be used 24/7 with or without additional IR lighting.
The XC960T Body Camera is designed for any premises requiring an excellent super high resolution camera offering outstanding picture quality and performance. The camera is suitable for Indoor or Outdoor (using optional housing) use and has a C/CS mount for a wide choice of lenses to provide the perfect viewing angle.
● Sony 960H CCD Sensor
● Xvision X3K DSP
● 700TVL (960x576) resolution
● 0.0003 lux low light sensitivity
● Day/Night (IR sensitive)
● Compatible with Fixed, Manual and Auto Iris C/CS mount lenses
● Advanced Wide Dynamic Range
● High Speed Digital Slow Shutter
● 3D Digital Noise Reduction
● Programmable High Light Suppression
● Can be Wall or Ceiling mounted using optional bracket
● Can be used outside when used with an optional Weatherproof housing
|
Brand: |
Xvision |
|
Model Number: |
XC960T |
|
Style: |
Box Camera |
|
Weather Resistant: |
Yes (Optional Housing Required) |
|
Vandal Resistant: |
No |
|
Mounting Type: |
Wall or Ceiling (Optional Bracket Required) |
|
Dimensions (W H D in mm): |
81x72x148 |
|
Weight (Kg): |
0.48 |
|
Warranty: |
1 Year Warranty (extendable to 2 years) |
|
Sensor Type: |
1/3" Sony Super HAD II CCD |
|
DSP Type: |
Xvision X3K DSP |
|
DSP Functions: |
Automatic Electronic Shutter, Automatic White Balance,
Automatic Gain Control
Backlight Compensation, WDR (Wide Dynamic Range), DNR (Digital Noise
Reduction), Privacy |
|
Resolution: |
HD960H |
|
Minimum Illumination: |
0.0003 Lux |
|
Night Vision: |
Yes (Optional IR Lamp Required) |
|
Lens Type: |
Not Supplied |
|
Lens Size: |
Not Supplied |
|
Viewing Angle: |
N/A |
|
Operating Voltage: |
12V DC 200mA |
|
Suggested Power Supply: |
12V DC 300mA |
|

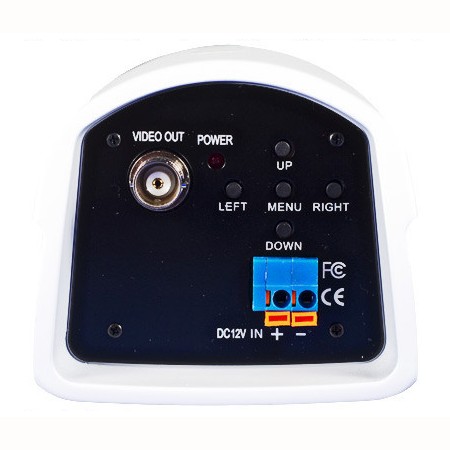

Video Output: |
BNC Socket |
|
Audio Output: |
No |
|
Power Input: |
Push Terminals |
|
RS485 Control: |
No |
|
|
| |
| |
 |
|
XR960D4:
Professional HD 960H DVR with 4 Camera Inputs. |
|
 |
|
XR960D8:
Professional HD 960H DVR with 8 Camera Inputs. |
|
|
|
|
XR960D16:
Professional HD 960H DVR
with 16 Camera Inputs. |
|
|
| |
|
|
