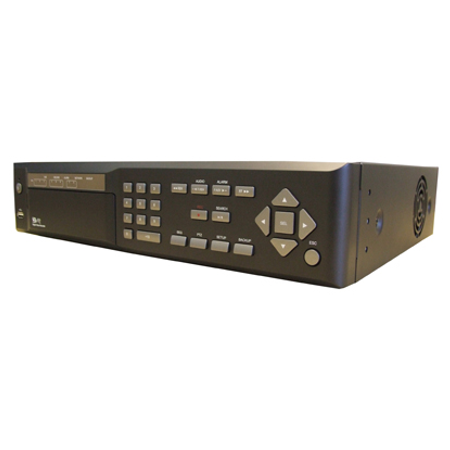

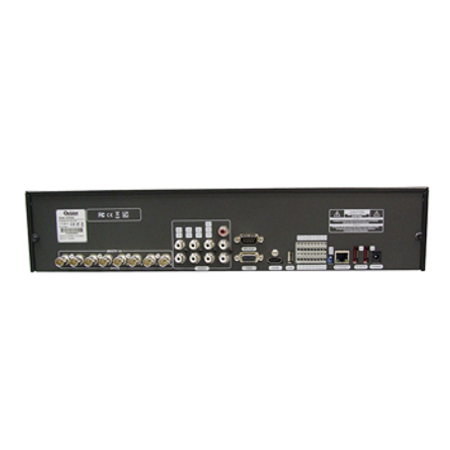

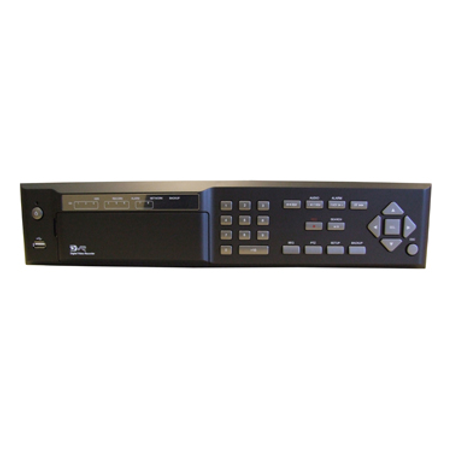

8 Camera HD DVR, Full HD 1080P, Internet, VGA, HDMI, ESATA, DVD (optional)



Model: XHR208

Click to enlarge



Operating at over 7x the resolution of standard CCTV systems , this Full HD 8 Camera HD-SDI DVR displays and record up to 8 cameras in 720P or 1080P Full HD resolution.

HD-SDI CCTV systems display and record images at 1080P Full HD resolution - thats higher than SKY HD! The systems use standard RG59 co-axial cable, making them as simple to install, commission and use as a Standard CCTV system, and because images are sent uncompressed to the DVR, there is no latency caused by the camera, and with prices of HD-SDI CCTV systems being similar with high end Standard CCTV systems, there has never been a better time to switch to HD CCTV.

As well as offering better than broadcast quality live images, the DVR also records in both 720P and 1080P (configurable for each input), recording speed is 12fps per camera for 720P resolution recording, and 5fps per camera for 1080P.

The DVR can be accessed remotely using a Windows PC (allowing live viewing, playback, backing up and configuration), in addition to this iOS (iPhone/iPad) and Android devices can play back recordings too.

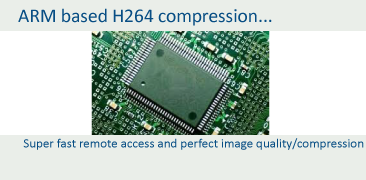

Using H264 compression to keep the recorded file size manageable, the DVR features Dual Stream technology, to ensure that the remote viewing speed is super fast.

The unit also has Full HD 1080P HDMI and VGA outputs as standard, ensuring that the 1080P images are kept intact from camera to DVR to display!

For easy control and setup, the DVR features an On Screen Display (GUI) and can be controlled by the front panel, Remote Control or Mouse (both are supplied as standard).

The highest resolution 8 camera DVR in the world, the XHR208 is the future of CCTV.

Brand: Xvision
Model Number: XHR208
Warranty: 1 Year Warranty (Extendable to 3 years)
Camera/Audio Inputs: 8 HD-SDI Camera Inputs
8 Audio Inputs
Alarm Inputs/Outputs: 8/1
Recording Compression: H264
Recording Rate?Resolution:
120 fps/640x360
96 fps/720P
40 fps/1080P
Recording Modes:
Alarm/Motion Activated
Continuous
Scheduled
Manual
Maximum Recording Capacity: 4TB (Max 2TB with DVD Writer)
Recording Space used per camera per 24 hours: CIF (320x240) = 2 to 8GB
HD1 (720x288) = 4 to 15GB
D1 (720x576) = 7 to 29GB
Multi Camera Playback: 8 Camera
Backup Method: USB Flash Drive
DVD (optional)
Monitor Outputs: VGA
HDMI
Spot Monitor Outputs: N/A
Controls: Front Panel
IR Remote Control
USB Mouse (supplied)
Remote Keyboard (optional)
Network/Internet:
From a Windows PC or Mac:
Live View
Email Alert
PTZ Control
Multi-site/DVR Control
Audio
Playback
Backup
Snapshots
Configuration

From an iPhone, iPad:
Live View
Email Alerts
PTZ Control
Audio
Playback

From an Android:
Email Alerts
Live View
Audio
Playback
Snapshots
PTZ Control

From a Windows Mobile:
N/A

From a Blackberry:
N/A

From a Symbian (Nokia etc) device:
N/A

Email Alerts: Yes (with snapshots)
CMS Software Features: Live Viewing
Playback
Backup
Configuration
Alarm/Motion Alerts
PTZ Control
Emap
Other Features:
PTZ (Speed Dome) Control
Product Dimensions (WHD in mm): 432x98x340
Product Weight (Kg): 4.1
Shipping Dimensions (WHD in mm): 530x215x464
Shipping Weight (Kg): 7.32
Operating Voltage: 12V DC (Power Supply supplied)
