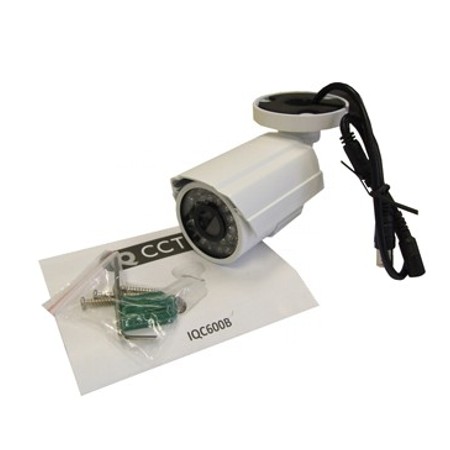

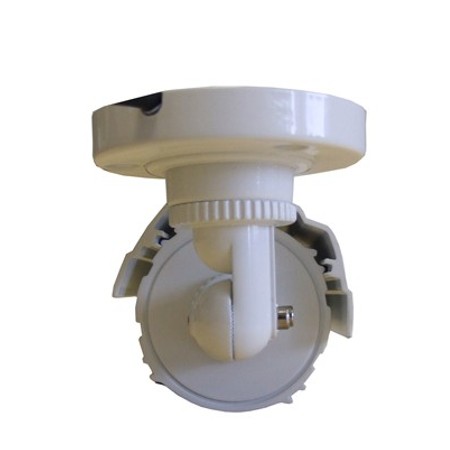

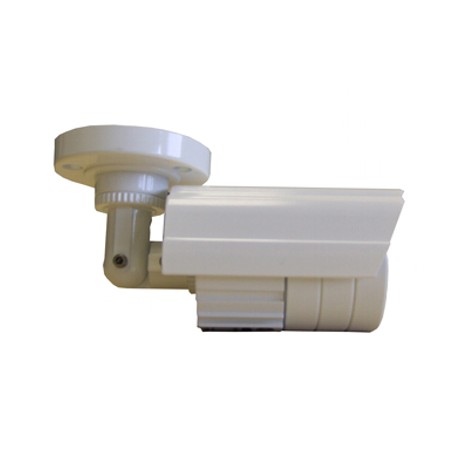

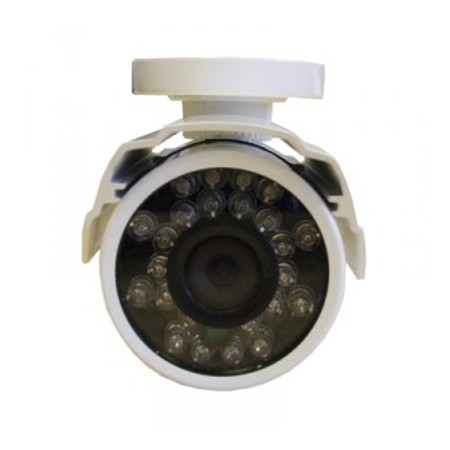

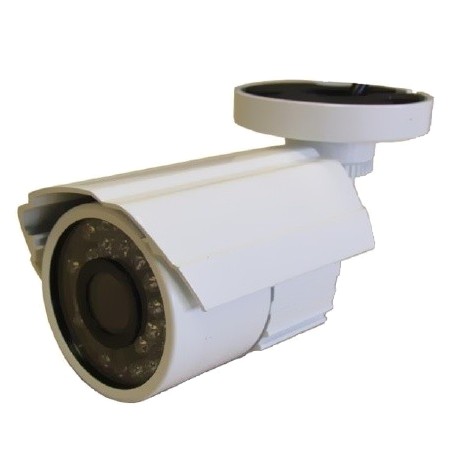

This stylish IR Bullet camera is ideal for
indoor or outdoor use and offers 20m IR Night Vision.
The IQC
range of cameras from IQCCTV are designed to offer crystal clear
images and amazing value for money, this is achieved by removing
high end features not needed in everyday applications.
The result is a range of cameras offering high resolution image
quality at a budget price.
|
Brand |
IQCCTV |
|
Model Number
|
IQC600B |
|
Style |
Bullet |
|
Weather Resistant |
Yes |
|
Vandal Resistant |
No |
|
Mounting Type
|
Wall or Ceiling |
|
Dimensions |
(WHD in mm) 102x57x63 |
|
Weight |
(Kg) 0.31 |
|
Warranty |
1 Year Limited Warranty
(extendable to 2 years) |
|
Sensor Type |
Xvision X650 – 1/3” Digital
Imaging Sensor |
|
DSP Type |
Xvision XE |
|
DSP Functions |
Automatic Electronic Iris
Automatic White Balance
Automatic Gain Control
True Day/Night
(Mechanical IR Filter) |
|
Resolution |
650TVL |
|
Minimum Illumination |
0.1 Lux (o Lux IR on) |
|
Night Vision |
20m IR Night Vision |
|
Lens Type |
Fixed |
|
Lens Size |
3.6mm |
|
Viewing Angle
|
78° |
|
Operating Voltage |
12V 280mA |
|
Suggested Power Supply |
12V DC 1250mA |
|
Video Output |
BNC Socket |
|
Audio Output |
Yes (Optional-
Microphone Required) |
|
Power Input |
DC Socket |
| |
|
|
 |
|
12V DC 1250ma Power Supply |
|
|
|
|
|
|
|
|
| |
| |
 |
|
