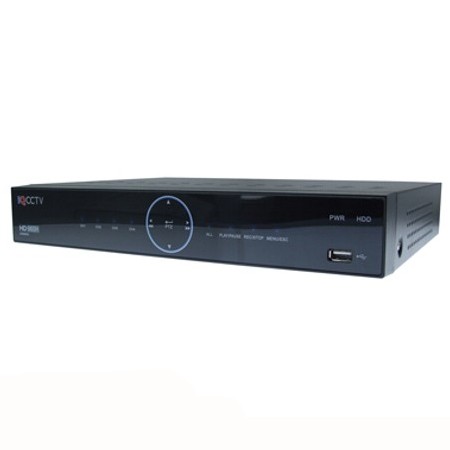

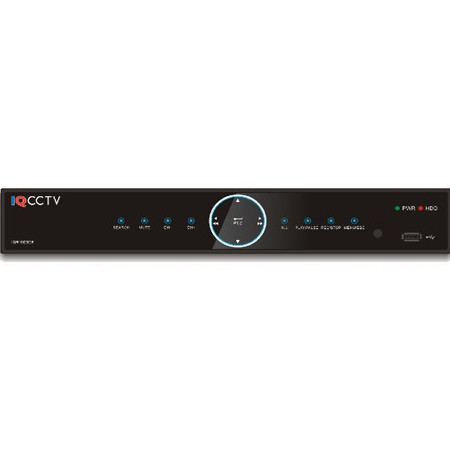

The IQR960D8 8 channel DVR is the latest from IQCCTV and offers High Definition 960H near
real time recording. The DVR presents great value for money and has both VGA and HDMI outputs.
The model has multiple alarm record modes, supporting HDD and video input alarm management.
Backing up files is quick and easy with the built-in USB port.
The IQR960D8 provides recording in HD 960H, WD1, WHD1 and WCIF in near real time and supports
PTZ camera operation through RS-485. For easy control and setup, the DVR features an On Screen
Display (GUI) and can be controlled by the new touch panel function, Remote Control or Mouse (both are supplied as standard).
In addition to this, the IQR960D8 DVR features the following:
• H.264 Video Compression
• Supports the following recording resolutions: CIF, HD1, D1, HD960H, WCIF, WHD1 & WD1
• 8 Channel Video and 2 Channel Audio (Microphone Available Separately)

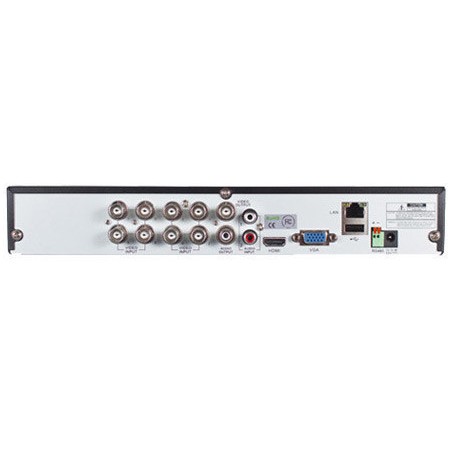

• HDMI, BNC and VGA Outputs
• Easy to Operate via USB Mouse, Touch Panel, Remote Control or Network
• Convenient Backup to USB Flash Driver or via Internet
• Smart Phone and Tablet Access via our free IQCMS App (Additional Setup Required)
• Remote / Network access from both PC and Mac (Additional Setup Required)
• Intelligent Motion Detection records only when cameras see movement and triggers instant Email Alerts with Snapshots
| Brand: |
IQCCTV |
| Model Number: |
IQR960D8 |
| Video Compression: |
H.264 |
| Video System: |
NTSC / PAL |
| Video Input / Output: |
8 CH Input, 1 BNC, 1 VGA,
1 HDMI |
| Spot Output: |
No |
| Audio Input / Output: |
2 CH Input, 1 CH Output (RCA) |
| Display Resolution: |
PAL: 960x576 @ 25fps
NTSC: 960x480 @ 30fps |
| Display Feature: |
Single, Quad, S.E.Q |
| Recording Resolution: |
PAL: D1 Mode: 360x288 (CIF),
720x288 (HD1), 720x576 (D1), 960H Mode: 480x288 (WCIF), 960x288 (WHD1),
960x576 (WD1)
NTSC: D1 Mode: 360x240 (CIF),
720x240 (HD1), 720x480 (D1), 960H Mode: 480x240(WCIF), 960x240 (WHD1),
960x480 (WD1) |
| Recording Speed (Per Camera): |
PAL: CIF / HD1 / D1: 25fps,
WCIF: 25fps, WHD1 / WD1: 9fps
NTSC: CIF / HD1 / D1: 30fps,
WCIF: 30fps, WHD1 / WD1: 11fps |
| Recording Mode: |
Continuous / Manual / Motion Detection |
| Playback Channel: |
1 / 4 / 9 Ch |
| Playback Speed (Per Camera): |
PAL: CIF / HD1 / D1: 25fps
(1-4 CH), CIF / HD1 / D1: 12fps (4CH), WCIF: 25fps, WHD1 / WD1: 9fps
NTSC: CIF / HD1 / D1: 30fps
(1-4 CH), CIF / HD1 / D1: 15fps (4CH), WCIF: 30fps, WHD1 / WD1: 11fps |
| DVD-RW: |
No |
| Sensor & Alarm I/O: |
No |
| IR Extender Port: |
No |
| Network: |
Lan, DHCP, Dynamic IP & DDNS |
| HDD Interface: |
1 SATA HDD, up to 4TB |
| Multiplex Operation: |
Live Display, Record, Playback, Backup and Network |
| USB: |
2 x USB (For mouse and backup / upgrade) |
| PTZ Control: |
Built-in RS485, supports Pelco-P & Pelco-D |
| Mobile Surveillance: |
IQCMS - Android and iOS |
| CMS Software: |
64 CH, 256 pcs DVR, no limit to users |
| Web Browser: |
Internet Explorer, Safari, Chrome, Firefox |
| VGA: |
800*600, 1024*768, 1280*1024, 1440*900, 1920*1080 |
| HDMI: |
1080P |
| Power Supply: |
DC 12V 2000mA |
| Fan: |
No |
| On / Off Switch: |
No |
| Remote Control: |
Yes |
| Rack Mount Size in (U): |
1 |
| Housing Dimension (WxHxD): |
301x46x210mm |
|
|
| |
| |
| |
 |
|
