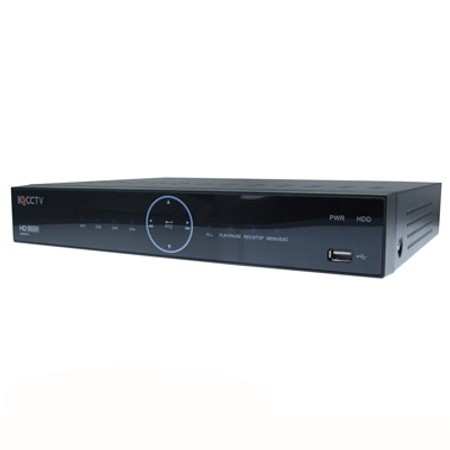

The IQR960D4 4 channel DVR is the latest from IQCCTV and offers High Definition 960H real time recording.
The DVR presents great value for money and has both VGA and HDMI outputs.
The model has multiple alarm record modes, supporting HDD and video input alarm management.
Backing up files is quick and easy with the built-in USB port.
The IQR960D4 provides recording in HD 960H, WD1, WHD1 and WCIF in real time and supports PTZ camera operation through RS-485.
For easy control and setup, the DVR features an On Screen Display (GUI) and can be controlled by the new touch panel function,
Remote Control or Mouse (both are supplied as standard).
In addition to this, the IQR960D4 DVR features the following:
FEATURES:
● Recording Rate: WCIF/D1/HD 960H: 100fps Real Time (25fps per camera)
● 2 Audio Inputs
● Remote Access via Smartphone, Tablet, PC and Mac
● Email Alerts
● VGA, BNC and HDMI monitor outputs
● Front Panel, Mouse or IR Remote Control
● Accepts 1 Hard Drive of up to 4TB (not included)
● Estimated recording space required per camera per day: 35GB at Highest Quality, 17GB at Medium and 8GB at Low
| Brand: |
IQCCTV |
| Model Number: |
IQR960D4 |
| Video Compression: |
H.264 |
| Video System: |
NTSC / PAL |
| Video Input / Output: |
4 CH Input, 1 BNC, 1 VGA,
1 HDMI |
| Spot Output: |
No |
| Audio Input / Output: |
2 CH Input, 1 CH Output (RCA) |
| Display Resolution: |
PAL: 960x576 @ 25fps
NTSC: 960x480 @ 30fps |
| Display Feature: |
Single, Quad, S.E.Q |
| Recording Resolution: |
PAL: D1 Mode: 360x288 (CIF),
720x288 (HD1), 720x576 (D1), 960H Mode: 480x288(WCIF), 960x288 (WHD1),
960x576 (WD1)
NTSC: D1 Mode: 360x240 (CIF),
720x240 (HD1), 720x480 (D1), 960H Mode: 480x240(WCIF), 960x240 (WHD1),
960x480 (WD1) |
| Recording Speed: |
PAL: D1 Mode / 960H Mode:
25fps
NTSC: D1 Mode / 960H Mode: 30fps |
| Recording Mode: |
Continuous / Manual / Motion Detection |
| Playback Channel: |
1 / 4 Ch |
| Playback Speed: |
PAL: D1 Mode / 960H Mode:
25fps
NTSC: D1 Mode / 960H Mode: 30fps
|
| DVD-RW: |
No |
| Sensor & Alarm I/O: |
No |
| IR Extender Port: |
No |
| Network: |
Lan, DHCP, Dynamic IP & DDNS |
| HDD Interface: |
1 SATA HDD, up to 4TB |
| Multiplex Operation: |
Live Display, Record, Playback, Backup and Network |
| USB: |
2 x USB (For mouse and backup / upgrade) |
| PTZ Control: |
Built-in RS485, supports Pelco-P & Pelco-D |
| Mobile Surveillance: |
IQCMS - Android and iOS |
| CMS Software: |
64 CH, 256 pcs DVR, no limit to users |
| Web Browser: |
Internet Explorer, Safari, Chrome, Firefox |
| VGA: |
800*600, 1024*768, 1280*1024, 1440*900, 1920*1080 |
| HDMI: |
1080P |
| Power Supply: |
DC 12V 2000mA |
| Fan: |
No |
| On / Off Switch: |
No |
| Remote Control: |
Yes |
| Rack Mount Size in (U): |
1 |
| Housing Dimension (WxHxD): |
301x46x210mm |
|
|
| |
| |
| |
 |
|
