The IQC range of cameras from IQCCTV are designed to offer crystal clear images and amazing value for money, this is achieved by removing high end features not needed in everyday applications.
The result is a range of cameras offering high resolution image quality at a budget price.

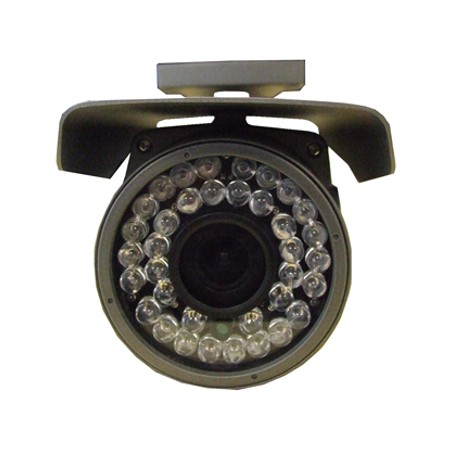

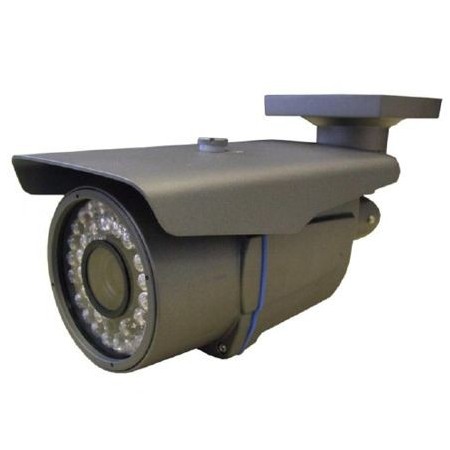

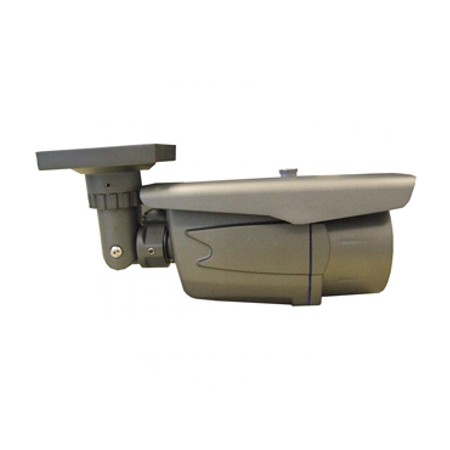

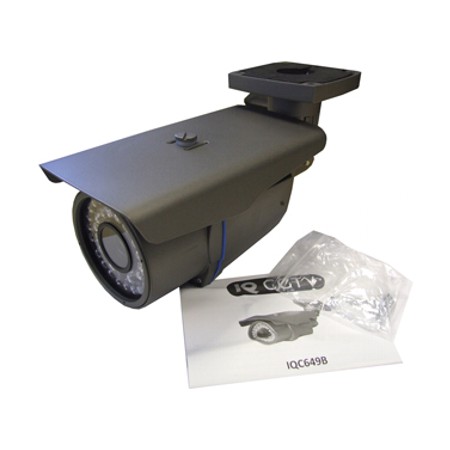

This Outdoor Varifocal IR camera is equipped with an adjustable angle lens and offers up to 50m IR Night Vision
| Brand: |
IQCCTV |
| Model Number: |
IQC649B |
| Style: |
Bullet |
| Weather Resistant: |
Yes |
| Vandal Resistant: |
No |

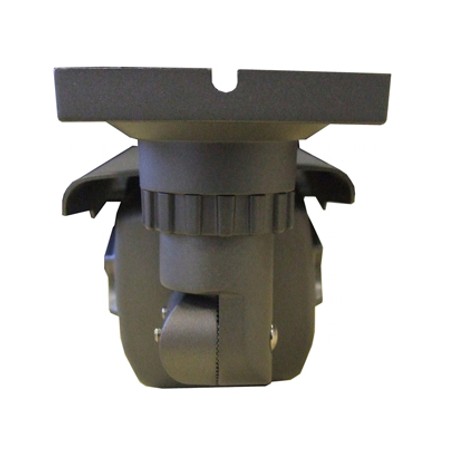

| Mounting Type: |
Wall or Ceiling |
| Dimensions (WHD in mm): |
180x107x95 |
| Weight (Kg): |
0.97 |
| Warranty: |
1 Year Warranty (extendable to 2 years) |
| Sensor Type: |
Xvision X650 - 1/3" Digital Imaging Sensor |
| DSP Type: |
Xvision XE |
| DSP Functions: |
Automatic Electronic Iris
Automatic White Balance, Automatic Gain Control
True Day/Night (Mechanical IR Filter)
|
| Resolution: |
650 TVL |
| Minimum Illumination: |
0.1 Lux (0 Lux IR on) |
| Night Vision: |
50m IR Night Vision |
| Lens Type: |
Varifocal |
| Lens Size: |
4.0 to 9.0mm |
| Viewing Angle: |
30 to 64° |
| Operating Voltage: |
12V DC 210mA |
| Suggested Power Supply: |
12V DC 1250mA |
| Video Output: |
BNC Socket |
| Audio Output: |
Yes (Optional Microphone Required) |
| Power Input: |
DC Socket |
| RS485 Control: |
No |
| |
|
|
 |
|
