The IQC960B-K is a HD960H Bullet camera kit with 20 metres of Infrared Night Vision.
The camera features a 50° wide-angle lens to capture more without the need to adjust the camera.

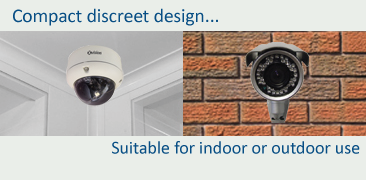

The Bullet is ideal for indoor or outdoor use (IP65 Rated) and has a cable managed and compact design.
The IQC range of 960H cameras from IQCCTV are designed to offer crystal clear images and amazing value
for money, this is achieved by removing high-end features not needed in everyday applications.
The result is a range of cameras offering high resolution 960H image quality at a budget price.
Features:
● 4.6mm (50°) Lens
● 20m IR Night Vision

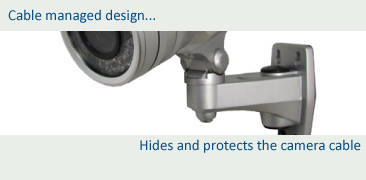

● Cable Managed Bracket
● Durable Metal Casing
● Weatherproof

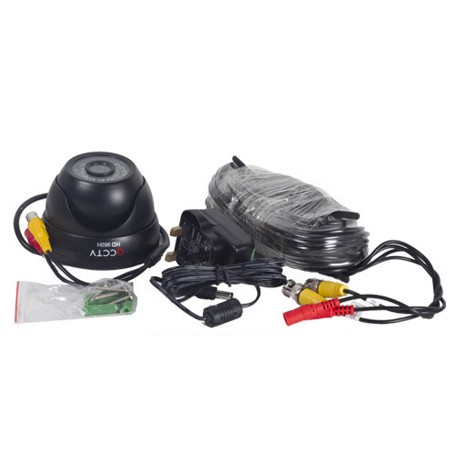

● Includes 18m Plug & Play cable and Power Supply
| Brand: |
IQCCTV |
| Model Number: |
IQC960B-K |
| Style: |
Bullet Camera |
| Weather Resistant: |
Yes (IP65 Rated) |
| Vandal Resistant: |
No |
| Mounting Type: |
Wall or Ceiling |
| Dimensions (WHD in mm): |
59x55x148 |
| Weight (Kg): |
0.26 |
| Warranty: |
1 Year Warranty (extendable to 2 years) |
| Sensor Type: |
1/3" Colour CMOS |
| DSP Type: |
IQ1 Digital DSP |
| DSP Functions: |
Automatic Electronic Shutter, Automatic Gain Control
Backlight Compensation |
| Resolution: |
HD960H |
| Minimum Illumination: |
0.1 Lux (0 Lux IR On) |
| Night Vision: |
20m IR Night Vision |
| Lens Type: |
Fixed |
| Lens Size: |
4mm |
| Viewing Angle: |
50° |
| Operating Voltage: |
12V DC 380mA |
| Suggested Power Supply: |
12V DC 1250mA |
| Video Output: |
BNC Socket |
| Audio Output: |
No |
| Power Input: |
DC Socket |
| RS485 Control: |
No |
| |
|
|
 |
|
12V DC 1250ma Power Supply |
|
|
|
|
|
|
| |
| |
| |
 |
|
IQR960D4:
HD 960H DVR with 4 Inputs, HDMI Output, Real Time 960H Recording and Mobile/Internet Access. |
|
|
 |
|
IQR960D8:
HD 960H DVR with 8 Inputs, HDMI Output, Near Real Time 960H Recording and Mobile/Internet Access. |
|
|
|
|
|
IQR960D16:
HD 960H DVR with 16 Inputs, HDMI Output, Near Real Time 960H Recording and Mobile/Internet Access. |
|
|
 |
|
IQR960D32:
HD 960H DVR with 32 Inputs, HDMI
Output,
Near Real Time
960H Recording
and
Mobile/Internet
Access. |
|
|
| |
|
|
