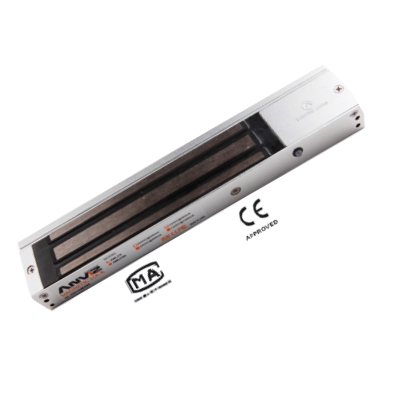

Made from special magnetic materials in adoption of a particular processing technique will not produce excessive magnetic after a long period and the suck board will not be magnetized or cause the reduction of suction force after a long-time use.
The products present no mechanic failures, no abrasions, and no noises with a longer service life.

Frameless glass door can be installed with an auxiliary frame.

Features:

• Holding Force: 270kg Power on to Lock
• No Mechanical Damage
• No Mechanical Wear
• Single Door Lock Status Signal NO / NC output
• LED Indicator suitble for 90 Degree-Open-Door (frameless or not, push door)
• Voltage: DC12V/24V Input
• Working Current: 500mA/250mA
• Tensile Strength: 250-280kg
• Weight: 1.80kg
• Lock Dimension: 253x25x48mm
• Option: Lock Bracket PML120-LPML120-U PML120-Z
