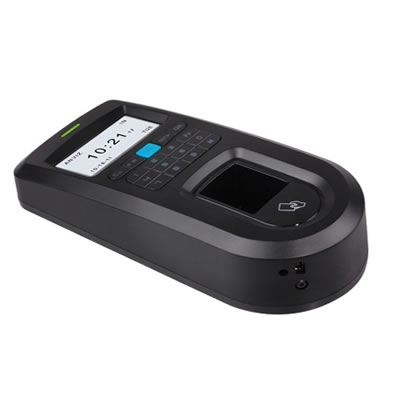

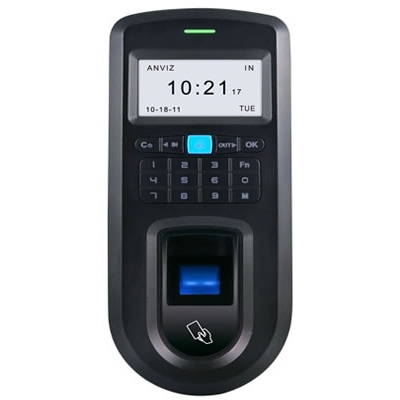

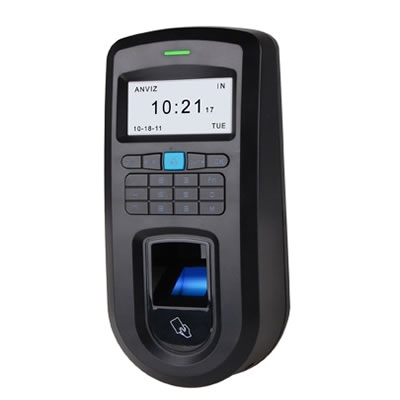

The VF30 Biometric Fingerprint Smart Card Reader is a standalone access control device.
It also has a switched relay output to directly drive an electric lock and a 26 bit
wiegand output to connect seamlessly with industry standard access controllers for a higher level of security.
The VF30 Biometric Access Control requires no online server or software to work as everything is embedded
within the device, making installation as easy as running 12 volt power wire.
Programming is done from the keypad and easy to follow on screen prompts.
| Item |
Description |
| Scan Area |
22mm*18mm |
| Resolution |
500 DPI |
| LCD |
128*64 white LCD |
| Fingerprint Capacity |
2000 |
| Card Capacity |
2000 |
| Log Capacity |
50000 |
| Identification Mode |
FP, Card, ID+FP, ID+PW, PW+Card, FP+Card |
| Identification Time |
<0.5 Sec |
| FRR |
0.00% |
| FAR |
0.00% |
| Communication Interface |
RS485,Mini USB Slave, TCP/IP, Wiegand In&Out |
| Card Reader Module |
Optional 125KHZ EM RFID, 13.56MHZ Mifare and 125KHZ HID |
| Fingerprint Image Display |
Yes |
| Self-defined Status |
16 |
| Workcode |
Yes |
| Short Message |
50 |
| Scheduled Bell |
30 |
| Relay |
DC 12V, Relay Output(COM, NO, NC) |
| Access Groups & Time Schedules |
15 Groups, 32 Time Zones |
| Door Sensor |
Yes |
| Tamper Alarm |
Yes |
| Operating Voltage |
DC 12V |
| Size |
80(w)*180(h)*40(d)mm |
| Temperature |
-10℃~40℃ |
| IP Level |
IP53(Optional Waterproof Cover) |
| Certificates |
FCC, CE |
| Applicable Situation |
Up to 1000 Users |
|
|
|
