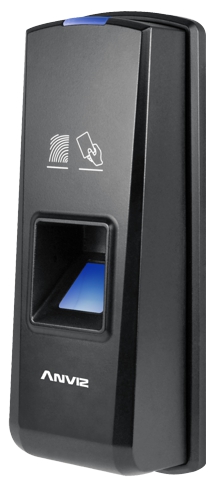

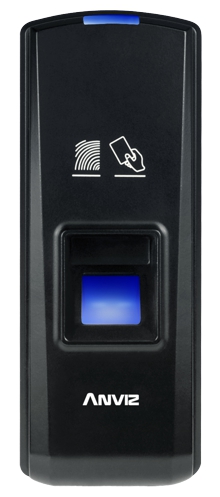

T5 Pro is an innovative fingerprint card access
controller which fully integrates fingerprint and
RFID technology. The very compact design makes
it suitable for installation on door frame.
T5 Pro has standard Wiegand output to connect seamlessly
with access controllers and relay output driver the
electric lock directly.
T5 Pro can easily update the
existing card readers for higher security level of fingerprint and card.
|
Item |
Description |
|
Processor |
TI Stellaris® 32-Bit High Speed CPU |
|
Algorithm |
BioNANO V10 |
|
Sensor |
AFOS300 Optical Sensor |
|
Sensor Wake Up Mode |
Infrared Auto Wakeup Sensor |
|
Scan Area |
22mm*18mm |
|
Resolution |
500 DPI |
|
Fingerprint Capacity |
1000 |
|
Log Capacity |
50000 |
|
Identification Mode |
FP,Card,FP+Card, |
|
Identification Time |
<0.5 |
|
FRR |
0.00% |
|
FAR |
0.00% |
|
Communication Interface |
TCP/IP Networking USB plug&play |
|
Card Reader Module |
EM RFID Optional Mifare Card |
|
Relay |
1Relay |
|
Wiegand |
Output |
|
Door Sensor |
yes |
|
Size |
145mm*55mm*37mm L*W*H |
|
Applicable Situation |
less than 1000 user |
|
|
|
