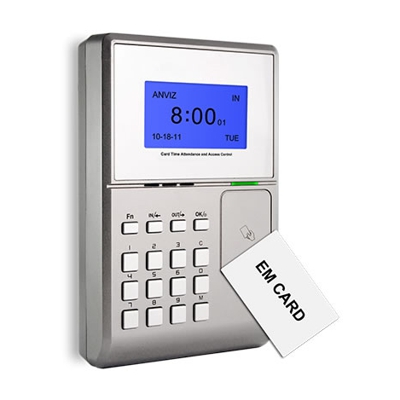

OC500 proximity card time attendance and access control is standard USB Device,
USB Host, TCP/IP, optional RS232. Dry contact , Wiegand26 input and output.
6-digit work code, 15 groups, 32 time zones, 30 bell schedulers and 50 short messages.
OC500 has standard TCP/IP module. It has multiple identification methods such as card only, ID+password, password+card.
Two in one: time attendance and access control function.
| Item |
Description |
| Processor |
32-bit ARM MCU |
| LCD |
128*64 Blue LCD |
| Card Capacity |
20000 |
| Log Capacity |
200000 |
| Identification Mode |
Card, ID+PW, PW+Card |
| Identification Time |
<0.1 Sec |
| Communication Interface |
USB Device, USB Host,
TCP/IP, Wiegand In&Out, optional RS232 |
| Card Reader Module |
Standard 125KHZ EM RFID,
optional 13.56MHZ Mifare and 125KHZ HID |
| Self-defined Status |
16 |
| Workcode |
Yes |
| Short Message |
50 |
| Scheduled Bell |
30 |
| Relay |
DC 12V, Relay Output(COM,
NO, NC) |
| Access Groups & Time Schedules |
15 Groups, 32 Time Zones |
| Size |
126(w)*189(h)*35(d)mm |
| Temperature |
-10℃~40℃ |
| Operating Voltage |
DC 12V |
| Certificates |
FCC, CE |
| Applicable Situation |
Up to 20000 Employees |
|
|
|
