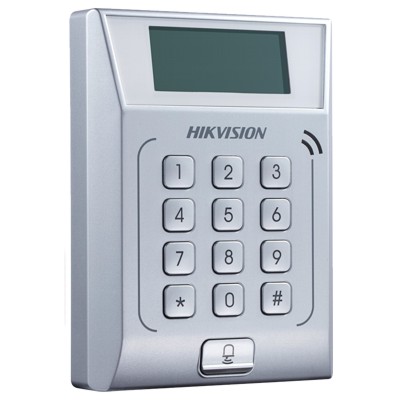

* Standalone access control card
terminal
-
* 3000 card and 10000 event storage
-
* Access control function
-
* Communication via TCP/TP
-
* Offline event alarms upload
|
Description |
|
| |
-
System
Parameters
-
StorageStorage
for 3000 Legal Card
Information and 10,000
Event Records
-
Card
Reading ModeEM
Card
-
Processor32bit
-
Device
Interfaces
-
Communication ModeTCP/IP
-
Input
InterfaceExit
Button × 1, Door Sensor
× 1
-
Output
InterfaceDoorbell
× 1, E-lock Output × 1
-
LCD
Screen
-
LCD
ScreenSTN
Screen (Resolution
128*64)
-
Key Board
-
Key Board13
Keys (0-9, , *, #,
Doorbell)
-
LED
Indicator
-
LED
IndicatorCommunication/Status
-
General
-
Working
Temperature-20°C
to 65°C (-4°F to 149° F)
-
Working
Humidity10%
to 90% (No Condensing)
-
Working
Current0.17
A(without Load)
-
Power
Supply12V
DC
-
Dimension126.5(L)mm×94.5(W)mm×24(H)mm
(4.98" × 3.72" × 0.94")
|
| |
 DS-K1T802
Value Series
|
|
|
