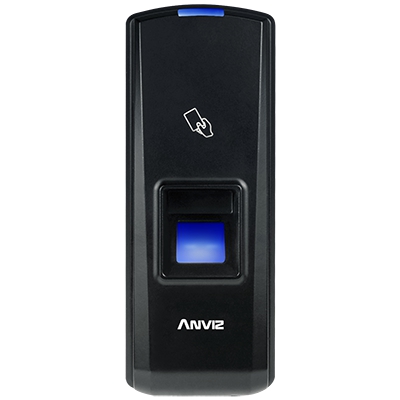

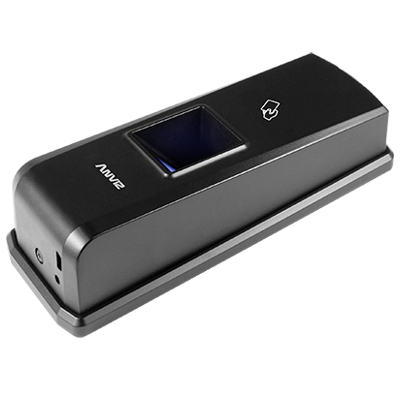

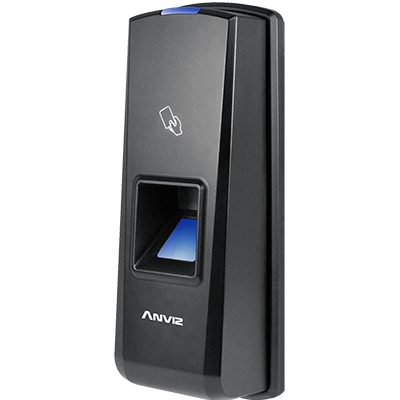

T5-S  TI Stellaris 32-bit High Speed CPU Fingerprint Reader



Model:T5-S
Click to enlarge



T5S is an innovative fingerprint card reader which fully integrates fingerprint and RFID technology. The very compact design makes it suitable for installation on doorframes. T5S has standard RS485 output to connect with ANVIZ whole access control production to be a dispersed type access control system.T5S can easily update the existing card readers for higher security level of fingerprint and card. Compatible with T5Pro, T50, and VF30.

Item Description
Processor TI Stellaris® 32-Bit High Speed CPU
Sensor AFOS300 Optical Sensor
Sensor Wakeup Mode Infrared Auto Wakeup Sensor
Scan Area 22mm*18mm
Resolution 500 DPI
Communication Interface RS485
Card Reader Module Optional EM RFID, Mifare Card
Size 145mm*55mm*37mm L*W*H
Applicable Situation less than 1000 user




SAC844
Anviz Encrypted Wiegand Input

 AML-160: Magnetic Lock

AML-260: Magnetic Lock

AML-270: Magnetic Lock
AML-500: Magnetic Lock
DS: Door Switch

DC: Door Closer









T5-Pro



T-50



VF-30



OC-500



TC-550



C-5
