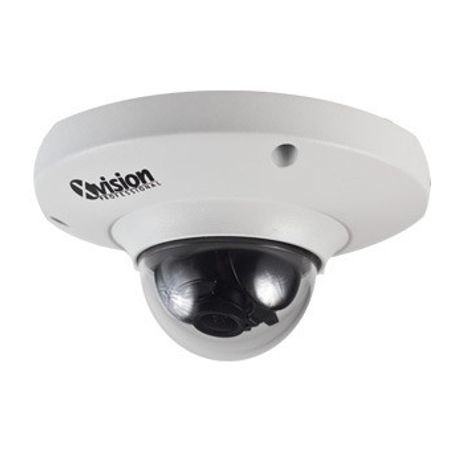

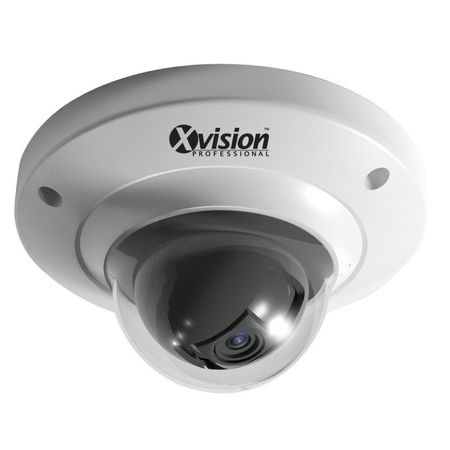

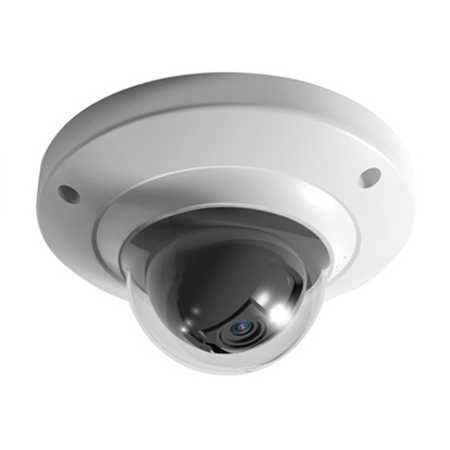

A Full HD 1080P (in Real Time) IP Dome Camera that offers up to 7x the resolution of standard CCTV and IP CCTV cameras, and over double the resolution of HD 720P IP cameras, perfect for unobtrusive use in Retail Premises, Restaurants, Bars, Offices, Hotel Lobbies etc...
Produces Real Time images at 1080P (1920x1080), 720P (1280x720) and D1 (704x576) resolution.
The camera is able to produces images at twice the resolution of SKY HD!
The camera is vandal resistant and features a tamper proof compact design.
It can be used inside or outside and is IP66 rated.
Supplied with powerful multi camera recording, viewing and management software for Windows PC's.
View remotely from a PC, Mac or Mobile phone.
| Brand |
Xvision |
| Model Number |
XP1080D |
|
Type |
| Style |
Mini IP Dome Camera with H264 Compression & Power over Ethernet |
| Weather Resistant |
Yes |
| Vandal Resistant |
Yes |
| Motorised Panning |
No |
| Motorised Tilting |
No |
| Digital Zoom |
Yes |
| Audio: |
No |
| Mounting Type: |
Wall or Ceiling |
| Product Dimensions WxHxD (mm): |
110x54x110 |
| Product Weight |
0.4kg |
| Shipping Dimensions WxHxD (mm) |
155x115x155 |
| Shipping Weight |
0.46kg |
| Warranty |
1 Year Warranty (extendable to 3 years) |
| Camera |
| Image Sensor Type |
1/2.9 " 2 Megapixel Progressive Scan Exmor CMOS |
| Image Sensor Resolution |
2 Mega Pixel 1080P |
| Minimum Illumination |
0.1 Lux |
| Night Vision |
No |
| Other Features |
Automatic White Balance
Automatic Gain Control
Automatic Electronic Iris
DNR (Digital Noise Reduction) |
| Lens |
3.6mm |
| Viewing Angle |
78° |
| Performance |
| Video Compression |
H264, MJPEG |
| Video Streams |
11 Independent Streams + 2 Region Of Interest Streams |
| Stream Types |
HTTP, RTSP, UDP |
| Video Resolution & Frame Rates |
1080P (1920x1080) at up to 25 fps
720P (1280x720) at up to 25 fps
D1 (704x576) at up to 25 fps |
| Networking |
| Network Connection |
RJ45 Socket (10/100 BASE-T) |
| Wi-Fi Support |
N/A |
| Network Protocols Supported |
HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, SMTP, NTP,
DHCP, DNS, DDNS, PPPOE, IP Filter, FTP, Alarm Server |
| Remote Access |
| Browser Support |
Chrome, Internet Explorer, Safari |
| Mobile Phone Support |
Android, Blackberry, iPhone, Nokia (Symbian), Windows Mobile |
| User Authentication |
User Name & Password, IP Filtering |
| Simultaneous Viewers |
Using Unicast: 20
Using Multicast: Unlimited |
| Power Requirements |
| Power over Ethernet |
Yes |
| Operating Voltage |
12V DC |
| Power Consumption |
<4W |
| Other Features |
| Easy Fit |
Optional Xvision Ethernet over Mains adaptor required |
| Motion Detection |
Yes |
| Presets |
No |
| Guard Tours |
No |
| Email Alerts |
Yes |
| On Board Recording |
No |
| Alarms |
No |
| Multi Camera Software |
Yes |
|
|
| |
| |
 |
|
