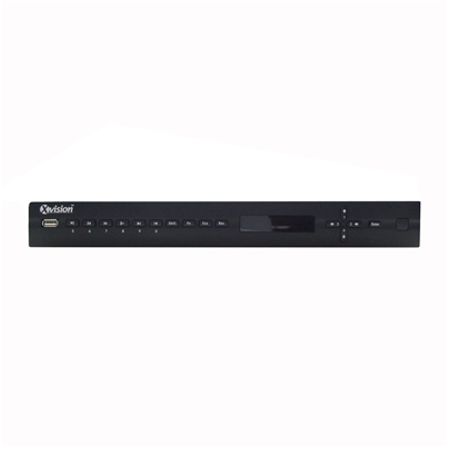

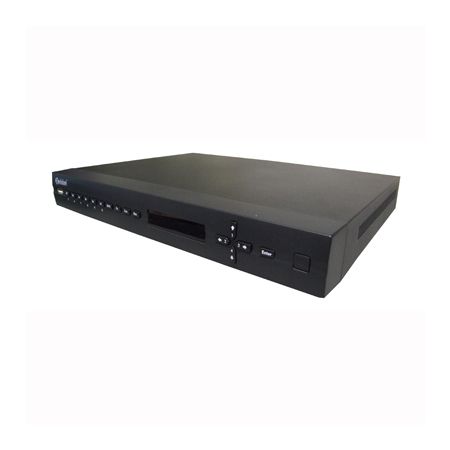

Professional HD IP NVR for up to 20 (720P) Cameras or 16 (720P or 1080P) Cameras



Model: X100R

Click to enlarge



The X100R is a good quality economical NVR for Xvision and other popular makes of IP cameras. It can record in any resolution from D1 (standard CCTV) to Full HD (HD CCTV).
It is designed to be as easy to use as a standard CCTV DVR, and has familiar on screen menus and can be controlled by front panel, mouse or a remote control.

The DVR is equipped with 2 powerful processors to ensure high performance and super fast remote viewing, it can record D1 cameras in real time, 720P cameras at up to 50fps and 1080P cameras at 25fps.

It is available with up to 6TB of internal recording capacity and offers quick and easy backing up via its built in USB port, which can be connected to a USB Hard Drive or USB Memory Stick.

It has VGA and High Definition HDMI outputs. The outputs all work together too for situations where multiple monitors are required. The display output is a True 1080P – utilising the full resolution available on HD monitors.

Dual Stream internet and network connectivity is standard, as is Mobile Phone access.

The iPhone/iPad and Android apps available for use with the NVR support advanced functionality, allowing you to view cameras, playback, configure the DVR, and receive PUSH VIDEO, this means the DVR will alert you when it detects movement, when you receive the alert on your phone, you simply press one button and the app will start playing back the recording that triggered the alert.

The DVR can also be viewed from a Windows PC, this allows viewing of multiple DVRS and playback and backing up of recordings too.

As easy to use as a standard CCTV DVR, a similar price and Full HD recording! This NVR represents excellent value for money.

Brand: Xvision
Model Number: X100R
Details
Warranty: 1 Year Warranty (extendable to 3 years)
Approvals: CE, RoHS
System
Main Processor: High performance Dual-core embedded microprocessor
Operating System: Embedded LINUX
System Resrouces: Pentaplex function: live, recording, playback, backup & remote access
Control Mode: Front panel, USB mouse, IR remote control, keyboard, network
Video
IP Camera Support: 4 channel @ D1, 2 channel @ 720P, 1 channel @ 1080P
IP Camera Supported List: Arecont Vision, AXIS, Canon, Panasonic, SAMSUNG, SANYO, SONY, ONVIF

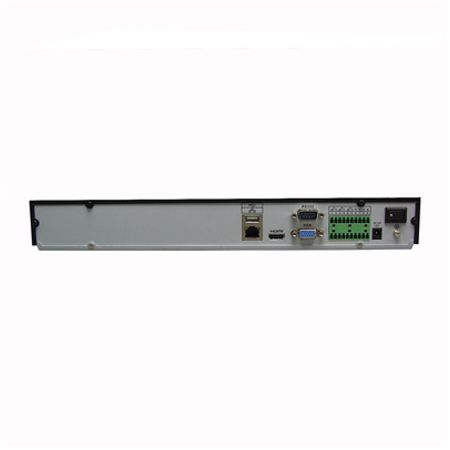

Output: 1 HDMI (Video and audio), 1 VGA
Display
Display Split: 1/4
Resolution: 1920x1080, 1280x1024, 1280x720, 1024x728
Tour Display: Support
Privacy Masking: 4 self-defined, 4 sided zones for privacy masking for each camera
OSD: Camera title, time, video loss, camera lock, motion detection, recording
Recording
Compression: H.264/ MJPEG4
Maximum Hard Drive Supported: 6TB
Recording Resolution: 1080P (1920x1080) /
720P (1280x720) /
D1 (704x576 / 704x480)
Recording Bit Rate: Up to 8 Mbps
Recording Quality: CBR, VBR (1~6 level)
Recording Mode: Manual, Schedule, Continuous, Motion Detection, Alarm
Recording Priority: Manual > Alarm > Motion Detection > Regular
Recording Interval: 1~120 min (default: 60 min)
Video detection & alarm
Trigger Events: Recording, PTZ Movement, Tour, Alarm, Email, FTP, Buzzer and Screen tips
Motion Detection: Zones 396(22x18), Sensitivity (1~6, 6 is the highest)
Video Loss and Camera Blank: Support
Alarm Input: 4
Relay Output: 3
Playback
Playback Channel: 1/2/4 All
Search Mode: Time/Date, Alarm, Motion Detection, Exact Search, Smart search
Playback Function: Play, Pause, Stop, Rewind, Fast play,slow play, next file, previous file,next camera, previous camera, full screen,repeat, shuffle, backup, selection, digital zoom
Backup Mode: Flash drive/ USB HDD/ USB CD & DVD-RW/ Network download
Network
Ethernet: RJ45 port (10/100M/1000M)
Network Function: HTTP, TCP IP, UPNP, RTSP, SMTP, NTP, DHCP, DNP, IP filter, PPPOE, DDNS, FTP, alarm service, IP Search/ support,Dahua IP Camera, DVR, NVS
Maximum Remote Users: 20
Remote Operation: Monitor, PTZ Control, Playback, System setting, File Download, Log information
Power Requirements
Operating Voltage: 12V DC
Power Consumption: 20W (without HDD)
Physical Attributes
Product Dimensions: 375mm (Width) x 45mm (Height) x 285mm (Depth)
Product Weight (kg): 2.3
Shipping Dimensions: TBC
Shipping Weight: TBC
