Full HD Enterpise NVR, 7" LCD, Matrix (6 outputs), Internet, VGA, HDMI



Model: XP3200R

Click to enlarge

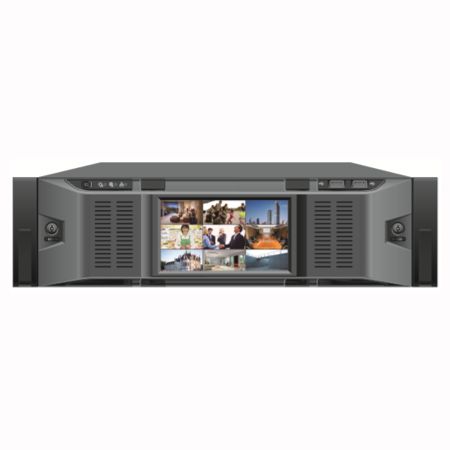

The XP3200R is a High Capacity Enterprise NVR with built in matrix, designed for use with Xvision and other popular makes of IP cameras, it is ideally suited for installation in large buildings, such as casinos, hotels, banks, airports.

It is designed to be as easy to use as a standard CCTV DVR, and has familiar on screen menus and can be controlled by mouse or a remote control.

The DVR is equipped with multiple high power processors to ensure high performance and super fast remote viewing, it can record D1 cameras in real time, 720P cameras at up to 1600fps and 1080P cameras at 800fps. Maximum recording resolution is a massive 8 megapixels per camera.

It is available with up to 48TB of internal recording capacity and has 4 network ports, all rated at 1GB!

Backing up is quick and easy via USB, ESATA or network.

It has a built in 7" LCD plus 1 VGA and 5 High Definition HDMI outputs. The outputs all work together too for situations where multiple monitors are required. The display output is a True 1080P – utilising the full resolution available on HD monitors. Each display can be independently configured to show multiple cameras.

Dual Stream internet and network connectivity is standard, as is Mobile Phone access.

The iPhone/iPad and Android apps available for use with the NVR support advanced functionality, allowing you to view cameras, playback, configure the DVR, and receive PUSH VIDEO, this means the DVR will alert you when it detecs movement, when you receive the alert on your phone, you simply press one button and the app will start playing back the recording that triggered the alert.

The DVR can also be viewed from a Windows PC, this allows viewing of multiple DVRS and playback and backing up of recordings too.

As easy to use as a standard CCTV DVR, but with powerful enterprise level functionality.

Brand: Xvision
Model Number: XP3200R
Details
Warranty: 1 Year Warranty (extendable to 3 years)
Approvals: CE, RoHS
System
Main Processor: Intel® Core i7 Processors
Operating System: Embedded LINUX
System Resrouces: Pentaplex function: live, recording, playback, backup & remote access
Control Mode: Front Panel, USB Mouse, IR Remote Control, Keyboard, Network
Video
IP Camera Support: 128 channels @ D1, 64 channels @ 720P, 32 channels @ 1080P
IP Camera Supported List: TBC ONVIF Compliant
Output: 6 HDMI, or 1 channel VGA (or built-in LCD) and 5 channel HDMI sync video output
Display
Display Split: 1/4/8/9/16/32/64/128
Resolution: 1920x1080, 1280x1024, 1280x720, 1024x728
Tour Display: Support
Privacy Masking: 4 customized zones for privacy masking for each camera
OSD: N/A
Recording
Compression: H.264
Hard Disk: Up tp 16 SATA II, up to 48TB
eSATA: 1 eSATA ports
Recording Resolution: 8 Megapixel /
5 Megapixel /
3 Megapixel /
1080P (1920x1080) /
720P ( 1280x720) /
D1 (704x576/ 704x480)
Recording Bit Rate: N/A
Recording Quality: N/A
Recording Mode: Manual, Schedule, Continuous, Motion Detection, Video Loss, Alarm
Recording Priority: Manual > Alarm > Motion Detection > Regular
Recording Interval: N/A
Video detection & alarm
Trigger Events: Recording, PTZ Movement, Tour, Alarm, Email, FTP, Buzzer and Screen Tips
Motion Detection: Zones 396 (22x18), Sensitivity (1~6, 6 is the highest)
Video Loss and Camera Blank: Support
Alarm Input: 16
Relay Output: 8
Playback
Playback Channel: 1/2/4 All
Search Mode: Time/Date, Alarm, Motion Detection, Exact Search, Smart search
Playback Function: N/A
Backup Mode: USB External HDD/Flash Drive (x4), DVD-RW, Network, eSATA (x1)
Network
Ethernet: 4 RJ45 Port (10/100M/1000M)
Network Function: HTTP, TCP IP, UPNP, RTSP, SMTP, NTP, DHCP, DNP, IP Filter, PPPOE, DDNS, FTP, Alarm Service, IP Search/Support, Dahua IP Camera, DVR, NVS
Maximum Remote Users: TBC
Remote Operation: Monitor, PTZ Control, Playback, System Setting, File Download, Log Information
Power Requirements
Operating Voltage: 100~240V AC
Power Consumption: 20W (without HDD)
Physical Attributes
Product Dimensions: 485mm (Width) x 133.2mm (Height) x 448mm (Depth)
Product Weight (kg): 35kg (without HDD)
Shipping Dimensions: TBC
Shipping Weight: TBC
