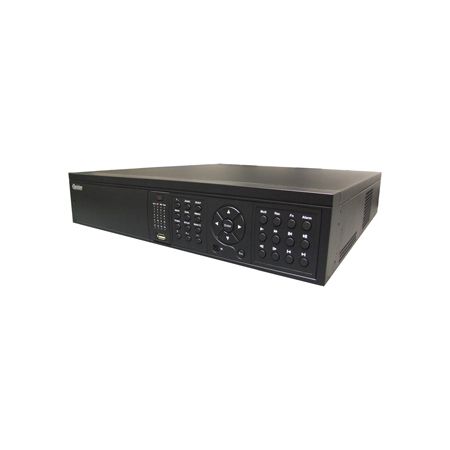

The XP400R is a Full Feature NVR for Xvision and other popular makes of IP cameras. It can record in any resolution from D1 (standard CCTV) to Full HD (HD CCTV).

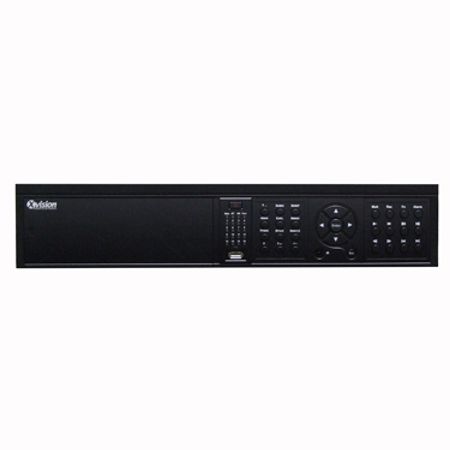

It is designed to be as easy to use as a standard CCTV DVR, and has familiar on screen menus and can be controlled by front panel, mouse or a remote control.

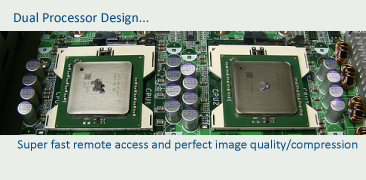

The DVR is equipped with 2 powerful processors to ensure high performance and super fast remote viewing, it can record D1 cameras in real time, 720P cameras at up to 200fps and 1080P cameras at 100fps.
It is available with up to 24TB of internal recording capacity and an additional 12TB of external ESATA recording, for a total of 36TB recording!
Backing up is quick and easy via its built in USB port, which can be connected to a USB Hard Drive or USB Memory Stick, or via the optional built in DVD writer.

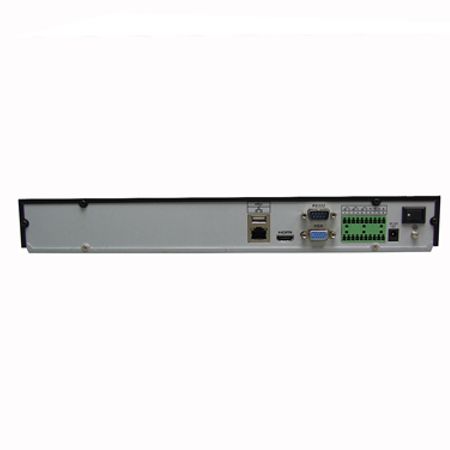

It has VGA and High Definition HDMI outputs. The outputs all work together too for situations where multiple monitors are required. The display output is a True 1080P – utilising the full resolution available on HD monitors.
Dual Stream internet and network connectivity is standard, as is Mobile Phone access.
The iPhone/iPad and Android apps available for use with the NVR support advanced functionality, allowing you to view cameras, playback, configure the DVR, and receive PUSH VIDEO, this means the DVR will alert you when it detecs movement, when you receive the alert on your phone, you simply press one button and the app will start playing back the recording that triggered the alert.
The DVR can also be viewed from a Windows PC, this allows viewing of multiple DVRS and playback and backing up of recordings too.
As easy to use as a standard CCTV DVR, a similar price and Full HD recording! This NVR represents excellent value for money
| Brand: |
Xvision |
| Model Number: |
XP400R |
| Details |
| Warranty: |
1 Year Warranty (extendable to 3 years) |
| Approvals: |
CE, RoHS |
| System |
| Main Processor: |
High performance Dual-core embedded microprocessor |
| Operating System: |
Embedded LINUX |
| System Resrouces: |
Pentaplex function: live, recording, playback, backup &
remote access |
| Control Mode: |
Front panel, USB mouse, IR remote control, keyboard,
network |
| Video |
| Realtime IP Camera Support: |
16 channel @ D1, 8 channel @ 720P, 4 channel @ 1080P |
| IP Camera Supported List: |
Arecont Vision, AXIS, Canon, Panasonic, SAMSUNG, SANYO,
SONY, ONVIF |
| Output: |
1 HDMI (Video and audio), 1 VGA |
| Display |
| Display Split: |
1/4/8/9/16 |
| Resolution: |
1920x1080, 1280x1024, 1280x720, 1024x728 |
| Tour Display: |
Support |
| Privacy Masking: |
4 self-defined, 4 sided zones for privacy masking for
each camera |
| OSD: |
Camera title, time, video loss, camera lock, motion
detection, recording |
| Recording |
| Compression: |
H.264/ MJPEG4 |
| Hard Disk: |
8 SATA ports, 8HDDs, or 6HDDs + 1 CD/DVD-RW, up to 24TB |
| eSATA: |
4 External SATA ports, up to 12TB |
| Recording Resolution: |
1080P (1920x1080) /
720P (1280x720) /
D1 (704x576 / 704x480) |
 |
| Recording Bit Rate: |
Up to 32 Mbps |
| Recording Quality: |
CBR, VBR (1~6 level) |
| Recording Mode: |
Manual, Schedule, Continuous, Motion Detection, Alarm |
| Recording Priority: |
Manual > Alarm > Motion Detection > Regular |
| Recording Interval: |
1~120 min (default: 60 min) |
| Video detection & alarm |
| Trigger Events: |
Recording, PTZ Movement, Tour, Alarm, Email, FTP, Buzzer
and Screen tips |
| Motion Detection: |
Zones 396(22x18), Sensitivity (1~6, 6 is the highest) |
| Video Loss and Camera Blank: |
Support |
| Alarm Input: |
16 |
| Relay Output: |
6 |
| Playback |
|
| Playback Channel: |
1/2/4 All |
| Search Mode: |
Time/Date, Alarm, Motion Detection, Exact Search, Smart
search |
| Playback Function: |
Play, Pause, Stop, Rewind, Fast play, slow play, next
file, previous file, next camera, previous camera, full screen, repeat,
shuffle, backup, selection, digital zoom |
| Backup Mode: |
Flash drive/ USB HDD/ USB CD & DVD-RW/ Network download |
| Network |
| Ethernet: |
RJ45 port (10/100M/1000M) |
| Network Function: |
HTTP, TCP IP, UPNP, RTSP, SMTP, NTP, DHCP, DNP, IP
filter, PPPOE, DDNS, FTP, alarm service, IP Search/ support, Dahua IP
Camera, DVR, NVS |
| Maximum Remote Users: |
20 |
| Remote Operation: |
Monitor, PTZ Control, Playback, System setting, File
Download, Log information |
| Power Requirements |
| Operating Voltage: |
100~240V AC |
| Power Consumption: |
20W (without HDD) |
| Physical Attributes |
| Product Dimensions: |
440mm (Width) x 89mm (Height) x 460mm (Depth) |
| Product Weight (kg): |
6kg (without HDD) |
| Shipping Dimensions: |
TBC |
| Shipping Weight: |
TBC |
|
|
|
