5 MP/FULL HD IP Body Camera - Day/Night, SD Card Slot, ONVIF



Model: XP5000T

Click to enlarge

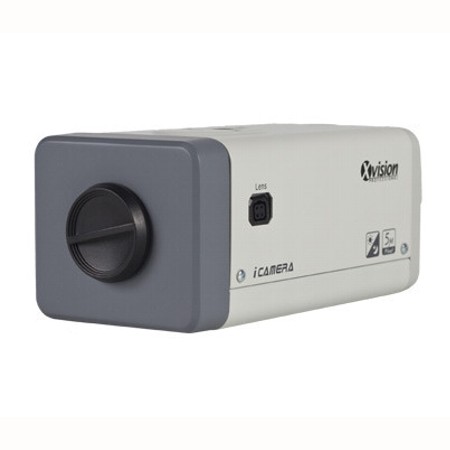

The XP5000T is fitted with a class leading 5.0 megapixel imaging sensor and can provide images at over 16x the resolution of a standard IP or CCTV camera. Even compared to the very latest Full HD 1080P cameras, the XP5000T provides over twice the resolution!

Produces Real Time images at 2560x1920 (5.0 Megapixel), 2048x1536 (3.0 Megapixel), 1080P (1920x1080), 720P (1280x720) and D1 (704x576) resolution.

Powerful processor for super fast framerates, 5.0mp at 8fps, 3.0mp at 20fps and 1080P at 25fps.

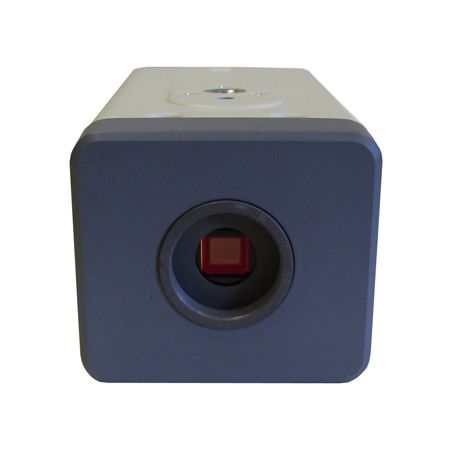

The camera supports Auto Iris lenses and industry standard CS mount lenses.

The camera has advanced DSP functions allowing it to cope with a wide variety of extreme lighting conditions, like car headlights, making it ideal for Number Plate Recognition when used with a suitable lens.

The camera is very versatile and can be wall or ceiling mounted, internally or externally, using optional brackets and housings. It is also IR sensitive for use with IR lamps in low light or complete darkness.

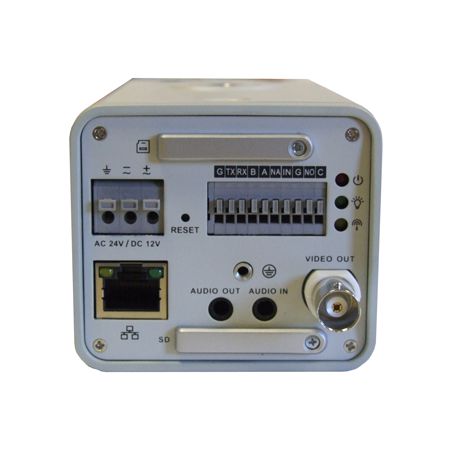

For alarm driven events an Alarm Input is provided, along with an Alarm Output.

Connections for a microphone and speakers (for 1 or 2 way audio) and an RS485 socket are also provided.

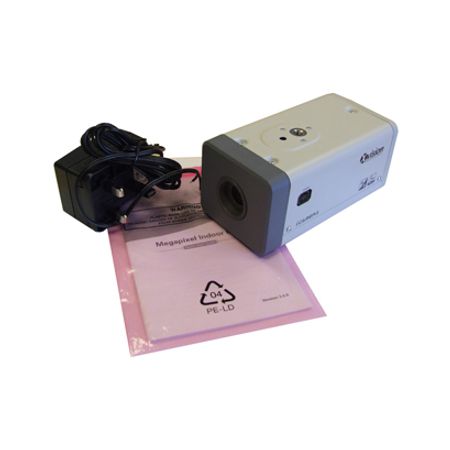

Supplied with powerful multi camera recording, viewing and management software for Windows PC's.

View remotely from a PC, Mac or Mobile phone.

Brand  Xvision SE
Model Number X5000T
Type
Style HD IP Body Camera
Weather Resistant Yes (Optional Housing Required)
Vandal Resistant No
Motorised Panning No
Motorised Tilting No
Digital Zoom Yes
Audio:
Yes
Mounting Type: Wall or Ceiling (Optional Bracket or Housing Required)
Product Dimensions WxHxD (mm): 70x63.2x149.5
Product Weight 0.65kg
Shipping Dimensions WxHxD (mm) TBC
Shipping Weight TBC
Warranty 1 Year Warranty (extendable to 3 years)
Camera
Image Sensor Type 1/2.5" 5 Megapixel Aptina CMOS Sensor
Image Sensor Resolution 5 Mega Pixel
Minimum Illumination 0.6 Lux (Colour), 0.08 (B/W),
Night Vision Yes (optional IR lamps required)
Other Features
Automatic White Balance
Automatic Gain Control
Automatic Electronic Iris
DNR (Digital Noise Reduction)
Dynamic Night View
True Day/Night
Lens N/A
Viewing Angle N/A
Performance
Video Compression H264, MJPEG
Video Streams 11 Independent Streams + 2 Region Of Interest Streams
Stream Types HTTP, RTSP, UDP
Video Resolution & Frame Rates
5 Megapixel (2560x1920) at up to 8 fps
3 Megapixel (2048x1536) at up to 20 fps
1080P (1920x1080) at up to 25 fps
720P (1280x720) at up to 25 fps
D1 (704x576) at up to 25 fps
Networking
Network Connection RJ45 Socket (10/100 BASE-T)
Wi-Fi Support N/A
Network Protocols Supported HTTP, TCP/IP, ARP, IGMP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour, SNMP
Remote Access
Browser Support Chrome, Internet Explorer, Safari
Mobile Phone Support Android, Blackberry, iPhone, Nokia (Symbian), Windows Mobile
User Authentication User Name & Password, IP Filtering
Simultaneous Viewers Using Unicast: 20
Using Multicast: Unlimited
Power Requirements
Power over Ethernet Yes
Operating Voltage 12V DC
Power Consumption <6W
Other Features
Easy Fit Optional Xvision Ethernet over Mains adaptor required
Motion Detection Yes
Presets No
Guard Tours No
Email Alerts Yes
On Board Recording Yes
Alarms Yes
Multi Camera Software Yes
